MW2412 Series

Catalog

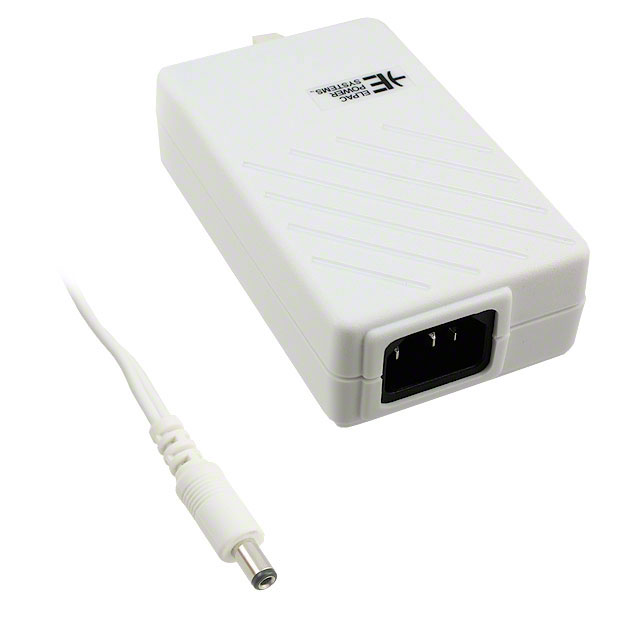

AC/DC DESKTOP ADAPTER 12V 24W

Part	Weight	Weight	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Efficiency	Region Utilized	Input Connector	Voltage - Output	Approval Agency	Applications	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Form	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Input Type	No Load Power Consumption	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [y]
Inventus Power MW2412-760-NC-WH	0.45 lb	204.12 g	100 VAC	240 VAC	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	2 A	80 %	International	IEC 320-C14	12 V	CB CE	Medical	24 W	64.5 mm	1.3 in	2.5 "	33 mm	108 mm	4.25 in	Desktop (Class I)	40 °C	0 °C	Positive Center	Cord (Sold Separately)
Inventus Power MW2412-760-NC-BK								2 A	80 %	International	IEC 320-C14	12 V	cTUVus UL	Medical	24 W		1.3 in	2.54 in		108 mm	4.25 in	Desktop (Class I)	60 °C	0 °C	Positive Center	Cord (Sold Separately)	850 mW	1.83 m	72 in	33 mm	64.5 mm
