BQ78Z100 Series
Manufacturer: Texas Instruments
Beta
⌘K
1S-2S LI-ION BATTERY PACK MANAGE
| Part | Utilized IC / Part | Function | Type | Supplied Contents | Mounting Type | Battery Chemistry | Package / Case | Fault Protection | Number of Cells [Max] | Number of Cells [Min] | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

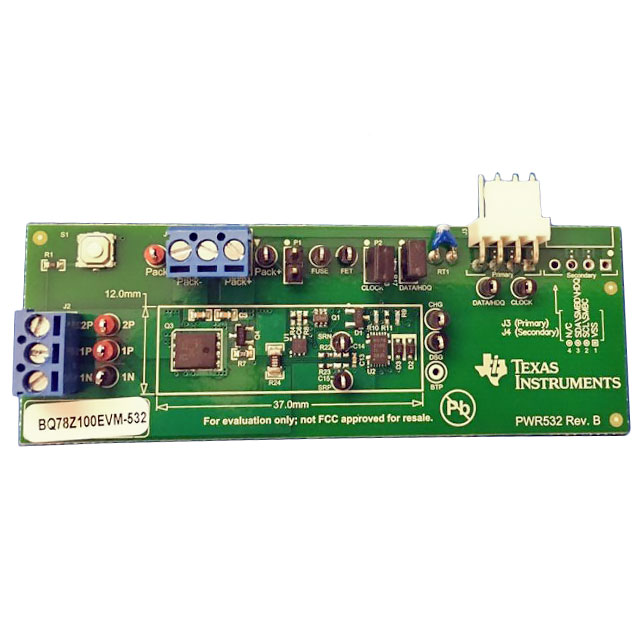

 Texas Instruments | BQ78Z100 | Fuel Gauge | Power Management | Board(s) | ||||||||||
 Texas Instruments | Multi-Function Controller | Surface Mount | Lithium Ion/Polymer | 12-VFDFN Exposed Pad | Over Current Over Temperature Over/Under Voltage Short Circuit | 2 cells | 1 | HDQ I2C | 85 °C | -40 °C | 12-SON (2.5x4) |
