LCA4 Series

Catalog

LUG TERMINAL, LCA SERIES, CRIMP, 2 AWG, COMPRESSION LUG, M5

Part	Contact Material	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel ID	Diameter - Barrel ID	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Mounting Type	Terminal Type	Termination	Insulation	Terminal Style	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Length - Overall	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness [custom]	Tab Thickness [custom]	Stud/Tab Size	Color	Tab Thickness	Tab Thickness	Width - Outer Edges	Width - Outer Edges	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Wire Gauge	Width - Outer Edges [x]	Diameter - Ring ID	Length - Overall [x]	Length - Overall [x]

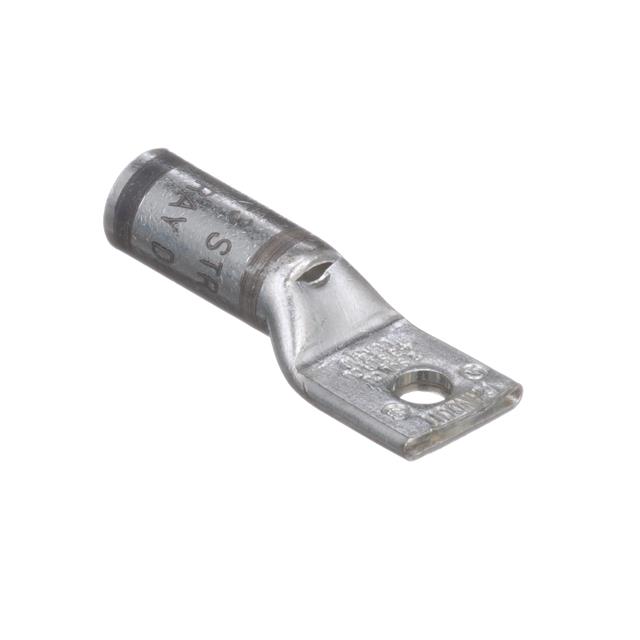

Panduit Corp LCA4-10-L	Copper	Electro-Tin	0.38 in	9.65 mm	7.11 mm	0.28 in	5.08 mm	0.2 in	Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole	0.55 in	13.97 mm	39.12 mm	1.54 in	2 AWG	4 AWG	0.09 in	2.29 mm	10 Stud	Gray

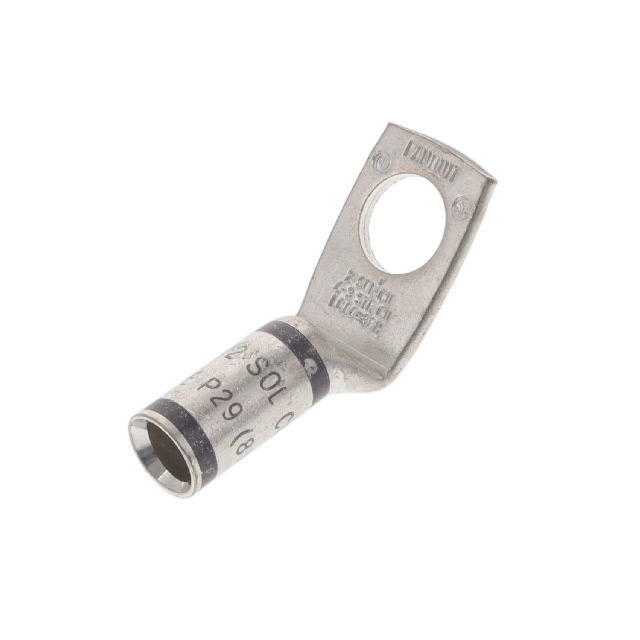

Panduit Corp LCA4-38H-L	Copper	Electro-Tin	0.38 in	9.65 mm	7.11 mm	0.28 in	10.41 mm	0.41 "	Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole					2 AWG	4 AWG			0.375 Stud	Gray	1.78 mm	0.07 in	0.62 in	15.75 mm

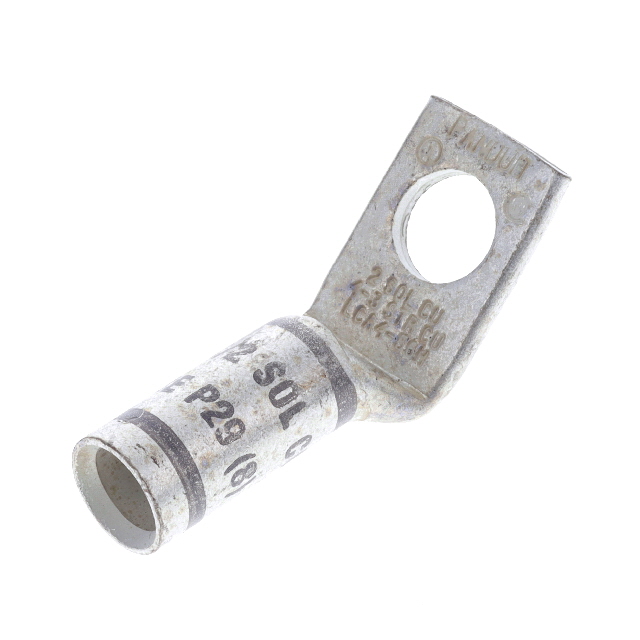

Panduit Corp LCA4-56H-L	Copper	Electro-Tin	0.38 in	9.65 mm	7.11 mm	0.28 in			Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole	0.55 in	13.97 mm			2 AWG	4 AWG	0.09 in	2.29 mm	0.3125 Stud	Gray					8.64 mm	0.34 in
Panduit Corp LCA4/0-38F-X	Copper	Electro-Tin	0.71 in	18.03 mm			10.41 mm	0.41 "	Free Hanging (In-Line) Right Angle	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole									0.375 Stud	Purple	3.56 mm	0.14 in		26.92 mm			0.57 "	14.48 mm	4 aught AWG	1.06 in
Panduit Corp LCA4/0-12-C	Copper	Electro-Tin	0.71 in	18.03 mm					Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole			67.82 mm	2.67 in					0.5 Stud	Purple	3.56 mm	0.14 in		26.92 mm	13.46 mm	0.53 in	0.57 "	14.48 mm	4 aught AWG	1.06 in

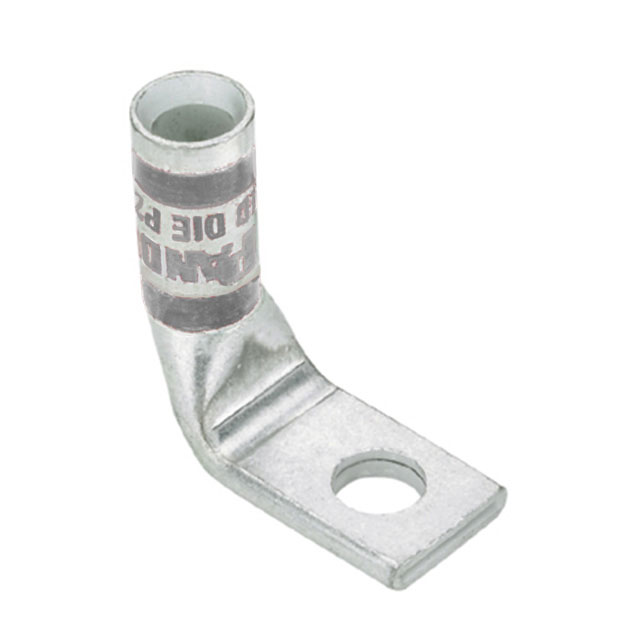

Panduit Corp LCA4-14F-L	Copper	Electro-Tin	0.38 in	9.65 mm	7.11 mm	0.28 in			Free Hanging (In-Line) Right Angle	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole	0.55 in	13.97 mm			2 AWG	4 AWG	0.09 in	2.29 mm	0.25 Stud	Gray						6.86 mm					0.27 in
Panduit Corp LCA4/0-14H-X	Copper	Electro-Tin	0.71 in	18.03 mm					Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole									0.25 Stud	Purple	3.56 mm	0.14 in		26.92 mm		6.86 mm	0.57 "	14.48 mm	4 aught AWG	1.06 in	0.27 in
Panduit Corp LCA4/0-14-X	Copper	Electro-Tin	0.71 in	18.03 mm					Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole									0.25 Stud	Purple	3.56 mm	0.14 in		26.92 mm		6.86 mm	0.57 "	14.48 mm	4 aught AWG	1.06 in	0.27 in	2.35 "	59.69 mm

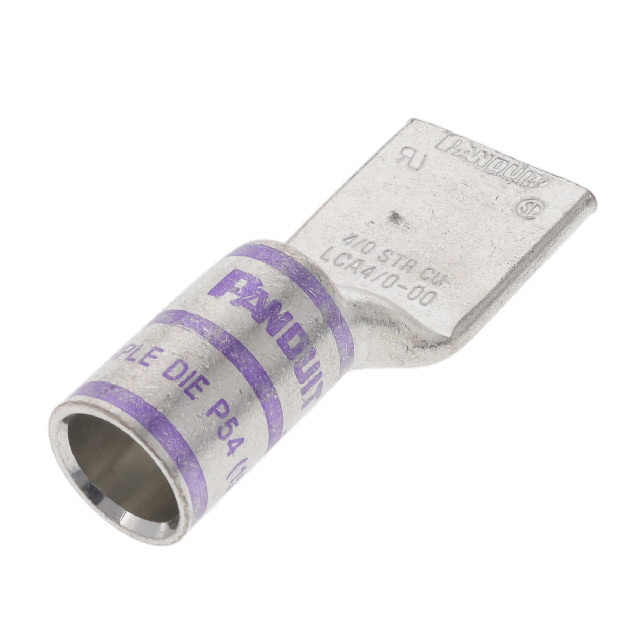

Panduit Corp LCA4/0-00-X	Copper	Electro-Tin	0.71 in	18.03 mm					Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	No Stud Hole			67.82 mm	2.67 in						Purple	3.56 mm	0.14 in		26.92 mm			0.57 "	14.48 mm	4 aught AWG	1.06 in

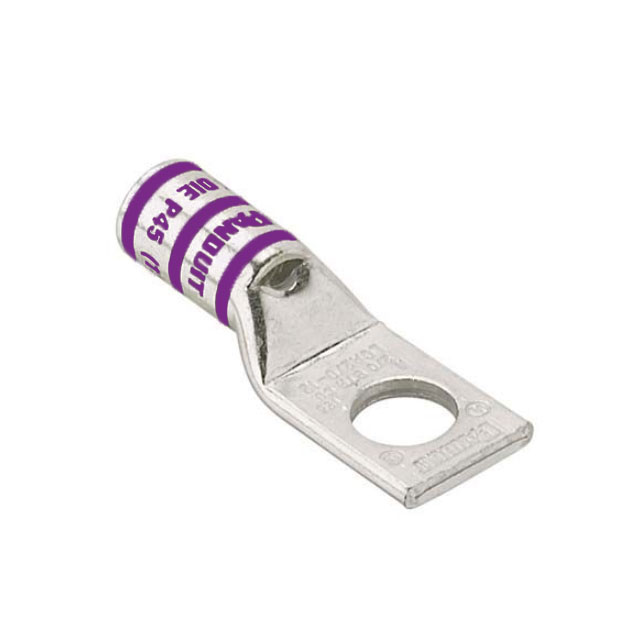

Panduit Corp LCA4/0-56-X	Copper	Electro-Tin	0.71 in	18.03 mm					Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimp	Non-Insulated	Single Stud Hole									0.3125 Stud	Purple	3.56 mm	0.14 in		26.92 mm	8.64 mm	0.34 in	0.57 "	14.48 mm	4 aught AWG	1.06 in		2.37 in	60.2 mm
