73071 Series

Catalog

CBL ASSY SMA JACK TO PLUG 12"

Part	Cable Type	Features	Length [x]	Length [x]	1st Contact Gender	Frequency - Max [Max]	Color	1st Connector	2nd Connector Mounting Type	Style	Cable Impedance	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	2nd Connector	Overall Impedance	1st Connector Mounting Feature	2nd Contact Gender	Length	Length	Length

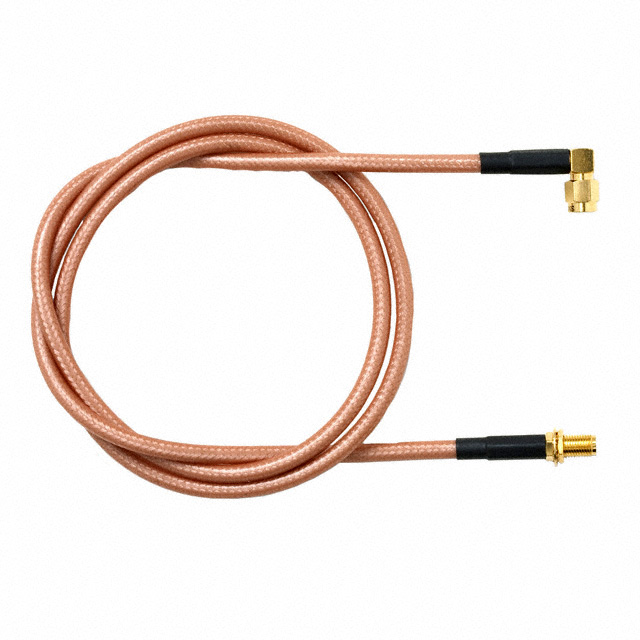

Pomona Electronics 73071-X-12	RG-142B	Shielded	304.8 mm	12 in	Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male

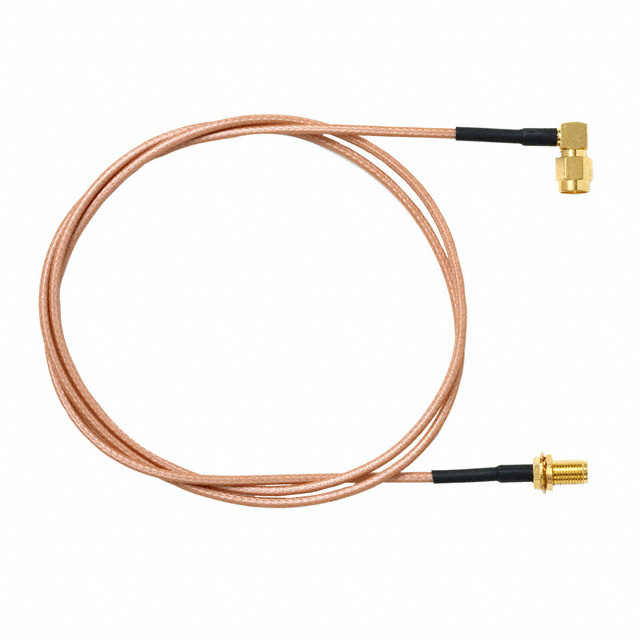

Pomona Electronics 73071-BB-60	RG-316	Shielded			Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male	60 in	1.5 m	5 ft
Pomona Electronics 73071-BB-12	RG-316	Shielded	304.8 mm	12 in	Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male
Pomona Electronics 73071-X-48	RG-142B	Shielded			Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male	48 in	1200 mm	4 ft
Pomona Electronics 73071-X-24	RG-142B	Shielded	609.6 mm	24 in	Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male
Pomona Electronics 73071-X-60	RG-142B	Shielded			Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male	60 in	1.5 m	5 ft
Pomona Electronics 73071-BB-48	RG-316	Shielded			Female	4 GHz	Copper	SMA Jack	Free Hanging (In-Line)	SMA to SMA	50 Ohms	-65 ░C	165 °C	Panel Mount	SMA Plug Right Angle	50 Ohms	Bulkhead - Front Side Nut	Male	48 in	1200 mm	4 ft
