BC034 Series
Manufacturer: GCT
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
8POS 1.0MM PITCH HEADER, SIL, SM
| Part | Pitch - Mating | Voltage Rating | Voltage Rating (Type) | Mounting Type | Contact Shape | Style | Shrouding | Insulation Color | Operating Temperature (Min) | Operating Temperature (Max) | Number of Rows | Insulation Material | Contact Type | Material Flammability Rating | Contact Finish Thickness - Mating | Current Rating (Per Contact) | Fastening Type | Contact Finish - Mating | Contact Length - Mating | Insulation Height | Contact Finish - Post | Number of Positions | Number of Positions Loaded | Contact Material | Connector Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

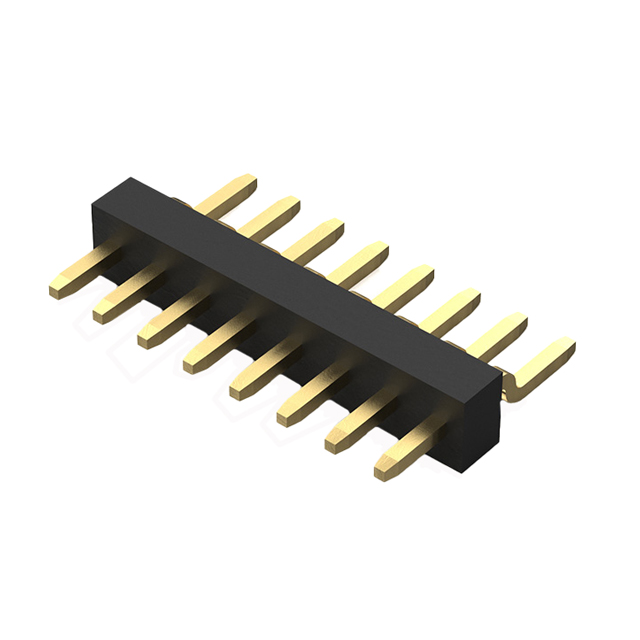

0.039 in | 250 V | DC | Right Angle Surface Mount | Square | Board | Unshrouded | Black | -40 °C | 105 °C | 1 | Liquid Crystal Polymer (LCP) | Male Pin | UL94 V-0 | Flash | 1 A | Push-Pull | Gold | 0.059 in | 0.059 in | Gold | 8 | All | Phosphor Bronze | Header | Solder | Flash | Flash | |

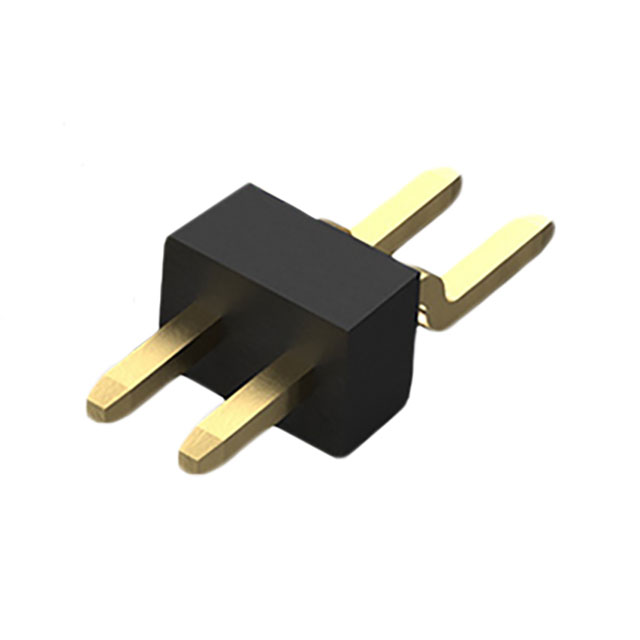

0.039 in | 250 V | DC | Right Angle Surface Mount | Square | Board | Unshrouded | Black | -40 °C | 105 °C | 1 | Liquid Crystal Polymer (LCP) | Male Pin | UL94 V-0 | Flash | 1 A | Push-Pull | Gold | 0.059 in | 0.059 in | Gold | 2 | All | Phosphor Bronze | Header | Solder | Flash | Flash | |
0.039 in | 250 V | DC | Right Angle Surface Mount | Square | Board | Unshrouded | Black | -40 °C | 105 °C | 1 | Liquid Crystal Polymer (LCP) | Male Pin | UL94 V-0 | Flash | 1 A | Push-Pull | Gold | 0.059 in | 0.059 in | Gold | 3 | All | Phosphor Bronze | Header | Solder | Flash | Flash |
