9G1248 Series

Catalog

FAN AXIAL 120X25MM 48VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Material - Blade	Air Flow	Air Flow	Features	Voltage - Rated	Weight	Weight	Termination	Width [y]	Static Pressure	Static Pressure	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Fan Type	RPM	Weight [custom]	Weight [custom]	Size / Dimension	Size / Dimension [y]	Static Pressure	Air Flow
Sanyo Denki America Inc. 9G1248H4D01	40000 Hrs	55.2 VDC	40.8 VDC	100 mA	Plastic	Plastic	2.46 mł/min	88 CFM	Locked Rotor Sensor	48 VDC	239.95 g	0.529 lb	3 Wire Leads	25 mm	0.257 in H2O	64 Pa	CSA TUV UL	120 mm	120 mm	4.8 W	40 dB(A)	-20 ░C	70 °C	Ball	Tubeaxial	2850 RPM

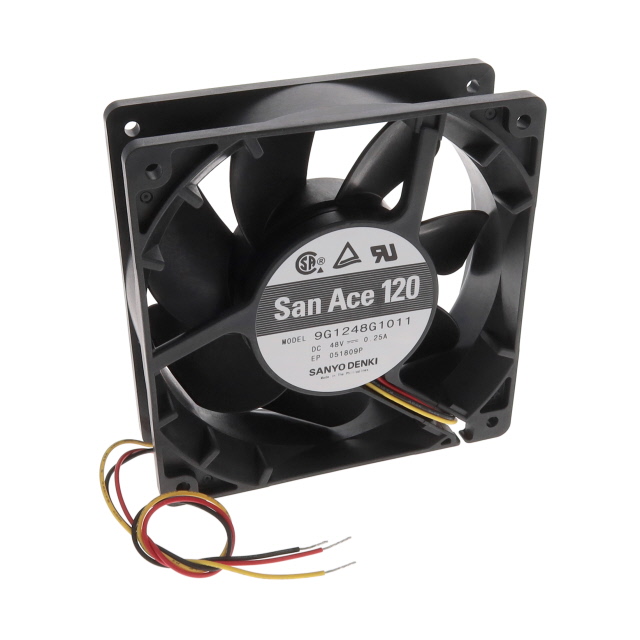

Sanyo Denki America Inc. 9G1248G1011	40000 Hrs	55.2 VDC	40.8 VDC	0.25 A	Plastic	Plastic	3.84 m³/min	137 CFM	Speed Sensor (Tach)	48 VDC			3 Wire Leads	38 mm	135 Pa		CSA TUV UL		119 mm	12 W	49 dB	-20 ░C	70 °C	Ball	Tubeaxial	3600 RPM	0.728 lb	330.22 g	Square	119 mm	0.542 in H2O
Sanyo Denki America Inc. 9G1248M4D011	40000 Hrs	55.2 VDC	40.8 VDC	50 mA	Plastic	Plastic	1.65 mł/min	59 CFM	Locked Rotor Sensor	48 VDC	239.95 g	0.529 lb	3 Wire Leads	25 mm	30.9 Pa		CSA TUV UL	120 mm	120 mm	2.4 W	29 dB(A)	-20 ░C	70 °C	Ball	Tubeaxial	1950 RPM					0.124 in H2O
Sanyo Denki America Inc. 9G1248M402	40000 Hrs	55.2 VDC	40.8 VDC	50 mA	Plastic	Plastic	1.65 mł/min	59 CFM		48 VDC	239.95 g	0.529 lb	2 Wire Leads	25 mm	30.9 Pa		CSA TUV UL		119 mm	2.4 W	29 dB(A)	-20 ░C	70 °C	Ball	Tubeaxial	1950 RPM			Square	119 mm	0.124 in H2O
Sanyo Denki America Inc. 9G1248P1G041	40000 Hrs	55.2 VDC	40.8 VDC	0.25 A	Plastic	Plastic	3.84 m³/min	137 CFM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	48 VDC			4 Wire Leads	38 mm	135 Pa		CSA TUV UL	120 mm	120 mm	12 W	49 dB	-20 ░C	70 °C	Ball	Tubeaxial	3600 RPM	0.728 lb	330.22 g			0.542 in H2O
Sanyo Denki America Inc. 9G1248F1011	40000 Hrs	55.2 VDC	40.8 VDC	0.09 A	Plastic	Plastic	2.44 m³/min	87 CFM	Speed Sensor (Tach)	48 VDC			3 Wire Leads	38 mm	54.3 Pa		CSA TUV UL		119 mm	4.32 W	36 dB	-20 ░C	70 °C	Ball	Tubeaxial	2280 RPM	0.728 lb	330.22 g	Square	119 mm	0.218 in H2O
Sanyo Denki America Inc. 9G1248F4D01	40000 Hrs	55.2 VDC	40.8 VDC	60 mA	Plastic	Plastic	1.96 m³/min	70 CFM	Locked Rotor Sensor	48 VDC	239.95 g	0.529 lb	3 Wire Leads	25 mm	42.1 Pa		CSA TUV UL		119 mm	2.88 W	35 dB	-20 ░C	70 °C	Ball	Tubeaxial	2250 RPM			Square	119 mm	0.169 in H2O
Sanyo Denki America Inc. 9G1248M4011	40000 Hrs	55.2 VDC	40.8 VDC	50 mA	Plastic	Plastic	1.65 mł/min	59 CFM	Speed Sensor (Tach)	48 VDC	239.95 g	0.529 lb	3 Wire Leads	25 mm	30.9 Pa		CSA TUV UL		119 mm	2.4 W	29 dB(A)	-20 ░C	70 °C	Ball	Tubeaxial	1950 RPM			Square	119 mm	0.124 in H2O	59 CFM
Sanyo Denki America Inc. 9G1248G401	40000 Hrs	55.2 VDC	40.8 VDC	0.23 A	Plastic	Plastic	3.64 m³/min	130 CFM	Speed Sensor (Tach)	48 VDC	239.95 g	0.529 lb	3 Wire Leads	25 mm			CSA TUV UL		119 mm	11.04 W	51 dB(A)	-20 ░C	70 °C	Ball	Tubeaxial	4100 RPM			Square	119 mm
Sanyo Denki America Inc. 9G1248F1021	40000 Hrs	55.2 VDC	40.8 VDC	0.09 A	Plastic	Plastic	2.44 m³/min	87 CFM		48 VDC			2 Wire Leads	38 mm	54.3 Pa		CSA TUV UL	120 mm	120 mm	4.32 W	36 dB	-20 ░C	70 °C	Ball	Tubeaxial	2280 RPM	0.728 lb	330.22 g			0.218 in H2O
