SM3AQ Series

Catalog

SWITCH LIMIT SPST-NO 5A 125V

Part	Switch Function	Operating Force	Mounting Type	Actuator Type	Circuit	Termination Style	Differential Travel	Differential Travel	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Voltage Rating - AC	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Current Rating (Amps)	Electrical Life	Release Force	Pretravel
CIT Relay and Switch SM3AQF0801L03	Off-Mom	18 gf	Chassis Mount	Lever Roller	SPST-NO	Quick Connect - 0.110" (2.8mm)	0.8 mm	0.031 in	1 mm	0.039 "	4.1 mm	0.161 in	125 V	0.646 in	16.4 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles

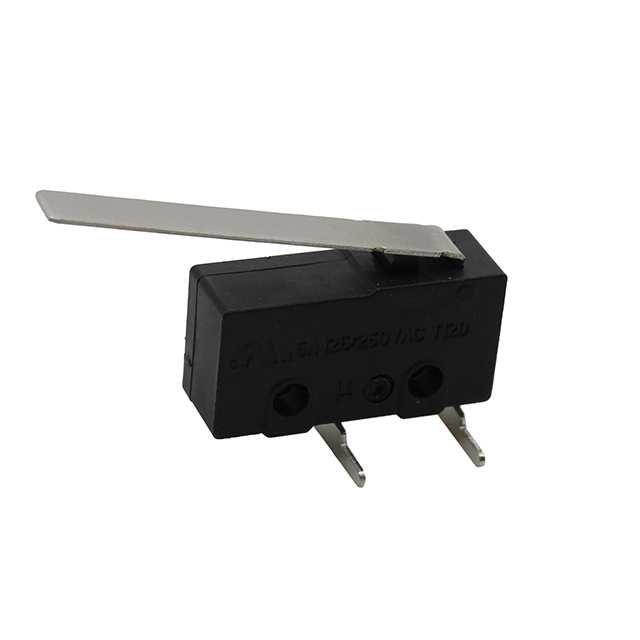

CIT Relay and Switch SM3AQF0804L04	Off-Mom		Right Angle Through Hole	Lever Straight	SPST-NO	PC Pin	1.2 mm	0.047 in	1.5 mm	0.059 "	6.5 mm	0.256 in	125 V	0.413 in	10.5 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles
CIT Relay and Switch SM3AQF3501L01	Off-Mom	90 gf	Chassis Mount	Lever Straight	SPST-NO	Quick Connect - 0.110" (2.8mm)			0.8 mm	0.031 "	4 mm	0.157 in	125 V	0.413 in	10.5 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles	45 gf

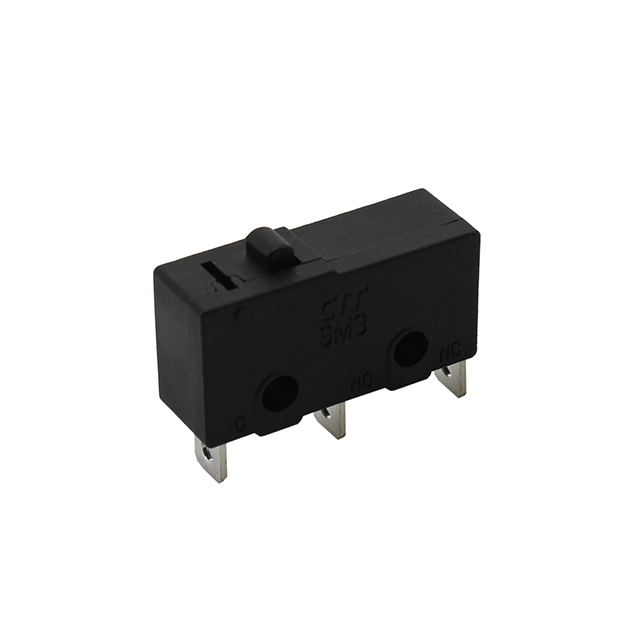

CIT Relay and Switch SM3AQF0802L00	Off-Mom	80 gf	Chassis Mount	Round (Pin Plunger)	SPST-NO	Solder Lug	0.05 mm	0.002 in	0.4 mm	0.015 "			125 V	0.413 in	10.5 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles

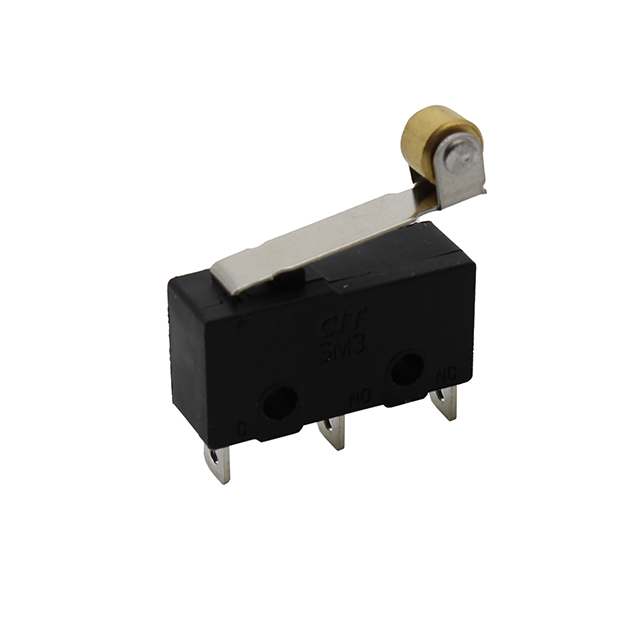

CIT Relay and Switch SM3AQF0802L03	Off-Mom	18 gf	Chassis Mount	Lever Roller	SPST-NO	Solder Lug	0.8 mm	0.031 in	1 mm	0.039 "	4.1 mm	0.161 in	125 V	0.646 in	16.4 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles
CIT Relay and Switch SM3AQF3502L00	Off-Mom	350 gf	Chassis Mount	Round (Pin Plunger)	SPST-NO	Solder Lug	0.05 mm	0.002 in	0.4 mm	0.015 "			125 V	0.413 in	10.5 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles	170 gf
CIT Relay and Switch SM3AQF1302L02	Off-Mom	35 gf	Chassis Mount	Lever Simulated Roller	SPST-NO	Solder Lug			1.1 mm	0.045 "	0.178 in		125 V	0.512 in	13 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles	16 gf	4.5 mm
CIT Relay and Switch SM3AQF3502L03	Off-Mom	95 gf	Chassis Mount	Lever Roller	SPST-NO	Solder Lug	0.8 mm	0.031 in	1 mm	0.039 "	4.1 mm	0.161 in	125 V	0.646 in	16.4 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles	38 gf
CIT Relay and Switch SM3AQF0801L00	Off-Mom	80 gf	Chassis Mount	Round (Pin Plunger)	SPST-NO	Quick Connect - 0.110" (2.8mm)	0.05 mm	0.002 in	0.4 mm	0.015 "			125 V	0.413 in	10.5 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles
CIT Relay and Switch SM3AQF1303L01	Off-Mom	40 gf	Through Hole	Lever Straight	SPST-NO	PC Pin			0.8 mm	0.031 "	4 mm	0.157 in	125 V	0.413 in	10.5 mm	120 °C	-40 C	10000000 Cycles	5 A	100000 Cycles	20 gf
