205869 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

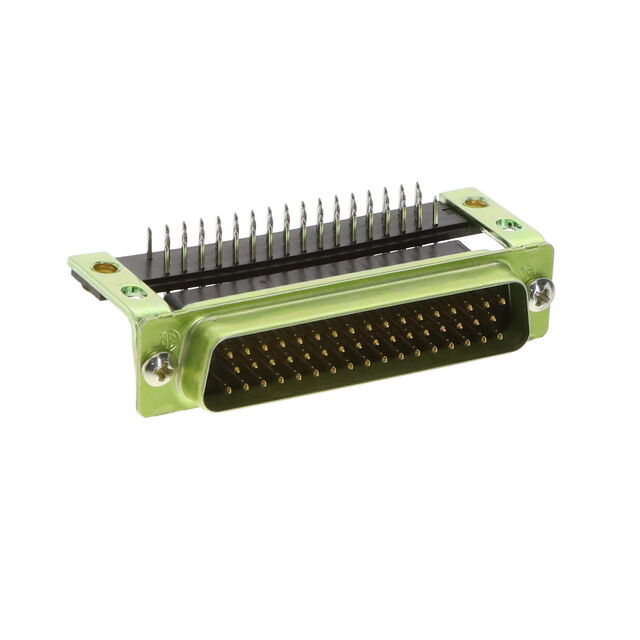

CONN D-SUB PLUG 50POS R/A SLDR
| Part | Number of Positions | Contact Type | Material Flammability Rating | Shell Material, Finish | Mounting Type | Connector Type | Shell Size, Connector Layout | Contact Finish | Color | Backset Spacing | Backset Spacing | Current Rating (Amps) | Contact Material | Termination | Features | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Voltage Rating | Dielectric Material | Number of Rows | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 50 | Signal | UL94 V-0 | Steel Yellow Chromate Plated Zinc | Through Hole Right Angle | Male Pins Plug | 5 | Gold | Black | 13.84 mm | 0.545 in | 6 A | Brass | Solder | Mounting Brackets | 105 ░C | -55 °C | D-Sub | 125 VDC | Glass Filled Nylon Polyamide (PA) | 3 | Mating Side Standard Screws (4-40) | |
 TE Connectivity Raychem Cable Protection | 50 | Signal | UL94 V-0 | Steel Yellow Chromate Plated Zinc | Through Hole Right Angle | Male Pins Plug | 5 | Gold | Black | 13.84 mm | 0.545 in | 6 A | Brass | Solder | Mounting Brackets | 105 ░C | -55 °C | D-Sub | 125 VDC | Glass Filled Nylon Polyamide (PA) | 3 | Mating Side Standard Screws | Flash |
