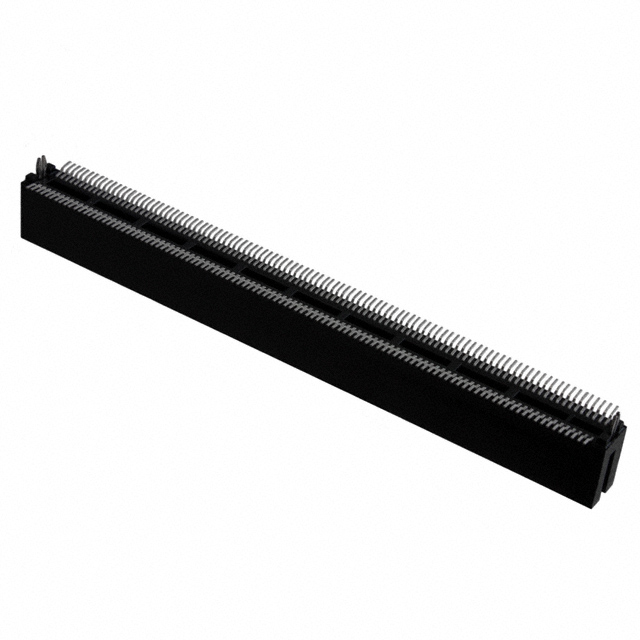

RBB105 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FML 210POS 0.050

Part	Material - Insulation	Mounting Type	Flange Feature	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch	Pitch	Contact Type	Gender	Card Thickness	Card Thickness	Color	Number of Positions	Number of Rows [custom]	Termination	Number of Positions/Bay/Row [custom]	Card Type	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature [custom]	Flange Feature [custom]
Sullins Connector Solutions RBB105DHAT	Polyphenylene Sulfide (PPS)	Right Angle Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder Staggered	105	Non Specified - Dual Edge
Sullins Connector Solutions RBB105DHHR	Polyphenylene Sulfide (PPS)	Through Hole		Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder Staggered	105	Non Specified - Dual Edge	Board Lock
Sullins Connector Solutions RBB105DHFD	Polyphenylene Sulfide (PPS)	Surface Mount	Flush Mount Top Opening Unthreaded	Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder	105	Non Specified - Dual Edge		3.18 mm	0.125 "
Sullins Connector Solutions RBB105DHAS	Polyphenylene Sulfide (PPS)	Right Angle Through Hole	Side Mount Opening Unthreaded	Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder Staggered	105	Non Specified - Dual Edge		3.18 mm	0.125 "
Sullins Connector Solutions RBB105DHNN	Polyphenylene Sulfide (PPS)	Through Hole		Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder	105	Non Specified - Dual Edge
Sullins Connector Solutions RBB105DYRQ	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Straddle Mount Opening Unthreaded	Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Cantilever	Female	1.57 mm	0.062 in	Black	210	2	Solder	105	Non Specified - Dual Edge	Card Extender			1.98 mm	0.078 "
Sullins Connector Solutions RBB105DHRN	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount		Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder	105	Non Specified - Dual Edge	Card Extender
Sullins Connector Solutions RBB105DHBR	Polyphenylene Sulfide (PPS)	Right Angle Through Hole		Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder Staggered	105	Non Specified - Dual Edge	Board Lock
Sullins Connector Solutions RBB105DHRT	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening	Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder	105	Non Specified - Dual Edge	Card Extender
Sullins Connector Solutions RBB105DHAN	Polyphenylene Sulfide (PPS)	Right Angle Through Hole		Dual	-65 ░C	125 °C	Phosphor Bronze	0.25 Ám	10 Áin	Gold	0.05 in	1.27 mm	Hairpin Bellows	Female	1.57 mm	0.062 in	Black	210	2	Solder Staggered	105	Non Specified - Dual Edge
