036642 Series
Manufacturer: Molex
Beta
⌘K

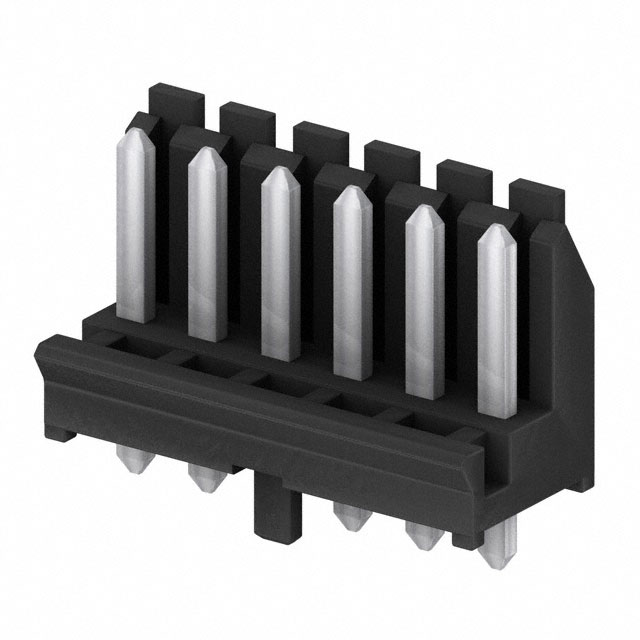

CONN HEADER VERT 6POS 3.96MM
| Part | Insulation Material | Contact Length - Post [x] | Contact Length - Post | Number of Positions | Shrouding | Connector Type | Number of Rows | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Material Flammability Rating | Mounting Type | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Shape | Contact Type | Features | Fastening Type | Contact Finish - Post | Termination | Contact Length - Mating [x] | Contact Length - Mating [x] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Polyester Glass Filled | 0.11 in | 2.79 mm | 6 | Shrouded - 1 Wall | Header | 1 | Black | 5.08 µm | 200 µin | Brass | UL94 V-0 | Through Hole | 0.655 in | 16.64 mm | All | 14.48 mm | 0.57 in | 0.156 in | 3.96 mm | 1.27 µm | 50 µin | Automotive General Purpose Industrial Medical Telecommunications | Square | Male Pin | Board Guide | Push-Pull | Tin | Solder | 0.365 in | 9.27 mm | Board to Cable/Wire |
