L777HDE15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB HD PLUG 15P R/A SLDR
| Part | Voltage Rating | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Connector Type | Number of Positions | Flange Feature | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Connector Style | Features | Termination | Current Rating (Amps) | Contact Finish | Backset Spacing | Backset Spacing | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 250 V | Stamped | -55 C | 125 °C | Brass | Thermoplastic Glass Filled | UL94 V-0 | 16 µin | 0.41 µm | 3 | Plug Male Pins | 15 | Board Side (M3) | Right Angle Through Hole | (DE E) High Density | 1 | Signal | D-Sub High Density | Board Lock Grounding Indents | Solder | 3 A | Gold | 8.89 mm | 0.35 in | |
Amphenol ICC (Commercial Products) | 250 V | Stamped | -55 C | 155 C | Brass | Thermoplastic Glass Filled | UL94 V-0 | 16 µin | 0.41 µm | 3 | Plug Male Pins | 15 | Mating Side Female Screwlock (M3) | Free Hanging (In-Line) | (DE E) High Density | 1 | Signal | D-Sub High Density | Grounding Indents | 3 A | Gold | ||||
 Amphenol ICC (Commercial Products) | 250 V | Stamped | -55 C | 155 C | Brass | Thermoplastic Glass Filled | UL94 V-0 | 16 µin | 0.41 µm | 3 | Plug Male Pins | 15 | 4-40 Mating Side Female Screwlock | Free Hanging (In-Line) | (DE E) High Density | 1 | Signal | D-Sub High Density | Grounding Indents | 3 A | Gold | ||||
 Amphenol ICC (Commercial Products) | 250 V | Stamped | -55 C | 105 ░C | Brass | Thermoplastic Glass Filled | UL94 V-0 | 16 µin | 0.41 µm | 3 | Plug Male Pins | 15 | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | (DE E) High Density | 1 | Signal | D-Sub High Density | Board Lock Grounding Indents Grounding Tabs | Solder | 3 A | Gold | 8.89 mm | 0.35 in | Black |
 Amphenol ICC (Commercial Products) | 250 V | Stamped | -55 C | 105 ░C | Brass | Thermoplastic Glass Filled | UL94 V-0 | 16 µin | 0.41 µm | 3 | Plug Male Pins | 15 | Mating Side Female Screwlock (M3) | Right Angle Through Hole | (DE E) High Density | 1 | Signal | D-Sub High Density | Board Lock Grounding Indents Grounding Tabs | Solder | 3 A | Gold | 8.89 mm | 0.35 in | Black |

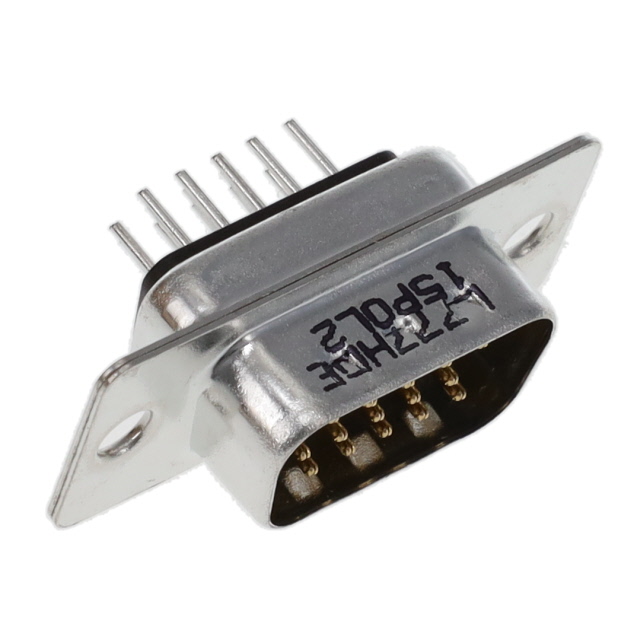

 Amphenol ICC (Commercial Products) | 250 V | Stamped | -55 C | 105 ░C | Brass | Thermoplastic Glass Filled | UL94 V-0 | 16 µin | 0.41 µm | 3 | Plug Male Pins | 15 | Housing/Shell (Unthreaded) | Through Hole | (DE E) High Density | 1 | Signal | D-Sub High Density | Grounding Indents | Solder | 3 A | Gold | Black |
