74HC4067 Series

Catalog

IC MUX 16:1 120OHM 24SO

Part	Supplier Device Package	On-State Resistance (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	-3db Bandwidth	Qualification	Grade	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Package / Case [custom]	Package / Case	Package / Case [custom]	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	Mounting Type	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Current - Leakage (IS(off)) (Max) [Max]	Package / Case

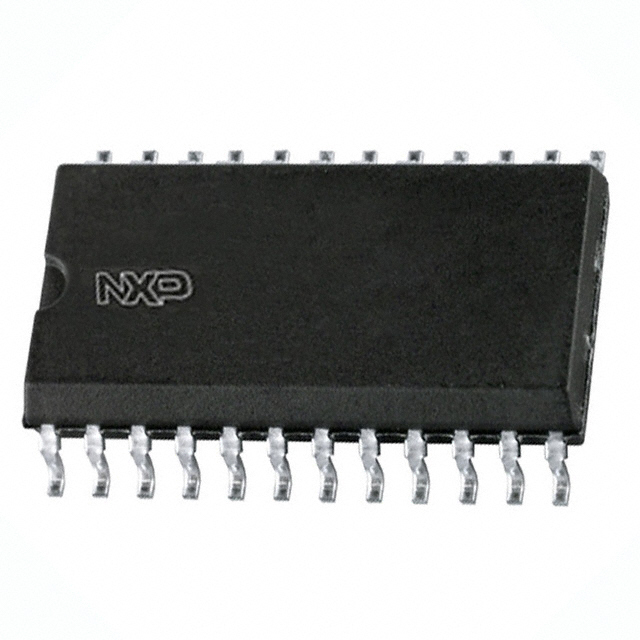

Freescale Semiconductor - NXP 74HC4067D-Q100J	24-SO	120 Ohm	3.5 pF	-40 °C	125 °C	100 MHz	AEC-Q100	Automotive	45 ns	45 ns	1	7.5 mm	24-SOIC	0.295 in	6 Ohm	16:1	Surface Mount	10 V	2 V	100 nA
Freescale Semiconductor - NXP 74HC4067PW,118	24-TSSOP	120 Ohm	3.5 pF	-40 °C	125 °C	100 MHz			45 ns	45 ns	1		24-TSSOP		6 Ohm	16:1	Surface Mount	10 V	2 V	100 nA	0.173 in 4.4 mm
Freescale Semiconductor - NXP 74HC4067D,653	24-SO	120 Ohm	3.5 pF	-40 °C	125 °C	100 MHz			45 ns	45 ns	1	7.5 mm	24-SOIC	0.295 in	6 Ohm	16:1	Surface Mount	10 V	2 V	100 nA
Freescale Semiconductor - NXP 74HC4067PW,112	24-TSSOP	120 Ohm	3.5 pF	-40 °C	125 °C	100 MHz			45 ns	45 ns	1		24-TSSOP		6 Ohm	16:1	Surface Mount	10 V	2 V	100 nA	0.173 in 4.4 mm
Freescale Semiconductor - NXP 74HC4067DB,118	24-SSOP	120 Ohm	3.5 pF	-40 °C	125 °C	100 MHz			45 ns	45 ns	1		24-SSOP		6 Ohm	16:1	Surface Mount	10 V	2 V	100 nA
