5530744 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM BI-LVL GRN/YLW RA

Part	Millicandela Rating	Lens Style	Configuration	Current	Mounting Type	Wavelength - Peak	Lens Type	Lens Size	Lens Size	Color	Viewing Angle	Voltage Rating	Lens Size [diameter]	Configuration [custom]	Configuration [custom]	Configuration [y]	Configuration [z]

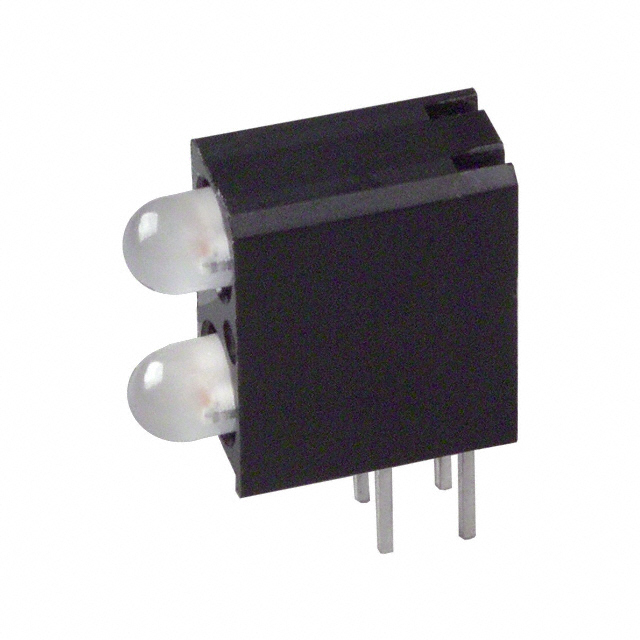

DIALIGHT 5530744F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	20 mA	Right Angle Through Hole	565 nm 585 nm	Diffused	3 mm	T-1	Green Yellow	80 °	2.1 V
DIALIGHT 5530744850F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow	80 °	2.1 V	3 mm
DIALIGHT 5530744210F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow	80 °	2.1 V	3 mm
DIALIGHT 5530744205F	4.3 mcd 6.3 mcd	Round with Domed Top			Right Angle Through Hole	565 nm 585 nm				Green Yellow	80 °	2.1 V 2.1 V	3 mm	2	5

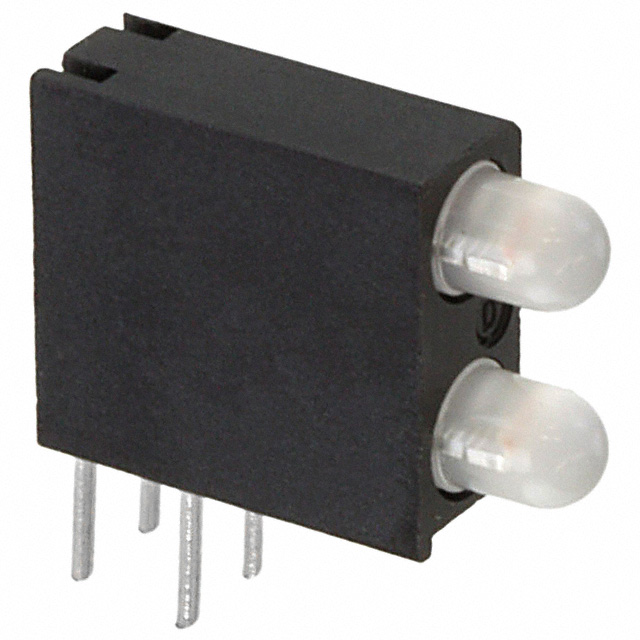

DIALIGHT 5530744200F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow	80 °	2.1 V	3 mm
DIALIGHT 5530744010F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow	80 °	2.1 V	3 mm
DIALIGHT 5530744400F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow	80 °	2.1 V	3 mm

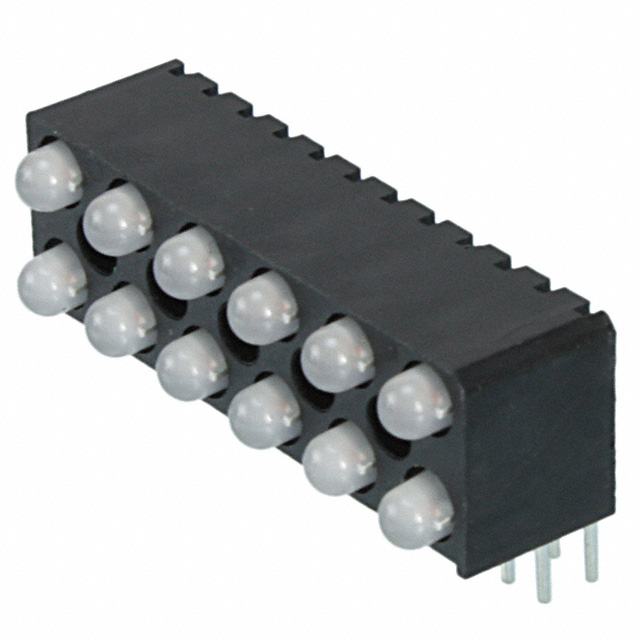

DIALIGHT 5530744306F	4.3 mcd 6.3 mcd	Round with Domed Top	2 High	10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow	80 °	2.1 V	3 mm

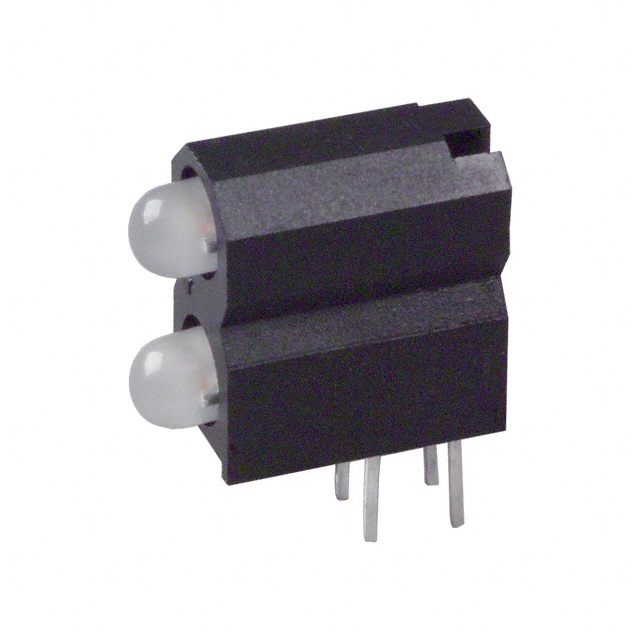

DIALIGHT 5530744300F	4.3 mcd 6.3 mcd		2 High	20 mA	Right Angle Through Hole	565 nm 585 nm	Clear			Green Yellow	80 °	2.1 V
DIALIGHT 5530744004F	4.3 mcd 6.3 mcd	Round with Domed Top		10 mA	Right Angle Through Hole	565 nm 585 nm	Diffused			Green Yellow (x 8)	80 °	2.1 V	3 mm			4	2
