VNA18 Series

Manufacturer: ConductRF

Catalog

CBL ASSY 3.5MM-NTYPE JCK-JCK 24"

Part	2nd Connector Mounting Type	2nd Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	1st Connector	Color	Overall Impedance	1st Connector Mounting Type	Features	2nd Connector	1st Contact Gender	Cable Type	Length [x]	Length [x]	Style	Style	Length	Length	Length

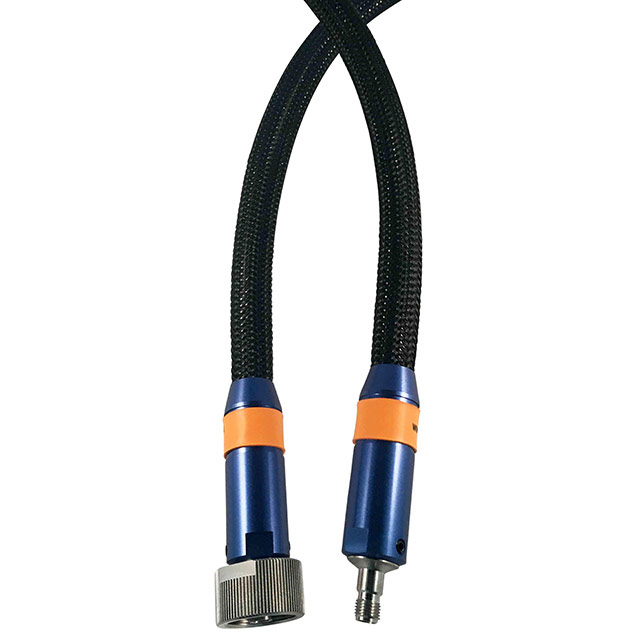

ConductRF VNA18-ENFNF-S24	Free Hanging (In-Line)	Female	-55 C	125 °C	18 GHz	3.5mm Jack	Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	N-Type Jack	Female	VNA	609.6 mm	24 in	N-Type	3.5 mm

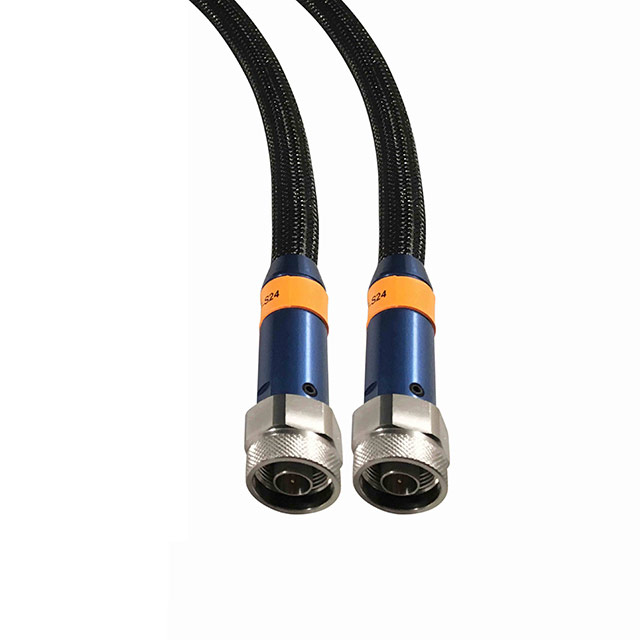

ConductRF VNA18-N1N1-S24	Free Hanging (In-Line)	Male	-55 C	125 °C	18 GHz		Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	N-Type Plug	Male	VNA	609.6 mm	24 in	N-Type to N-Type
ConductRF VNA18-ENFN1-S24	Free Hanging (In-Line)	Male	-55 C	125 °C	18 GHz	3.5mm Jack	Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	N-Type Plug	Female	VNA	609.6 mm	24 in	N-Type	3.5 mm

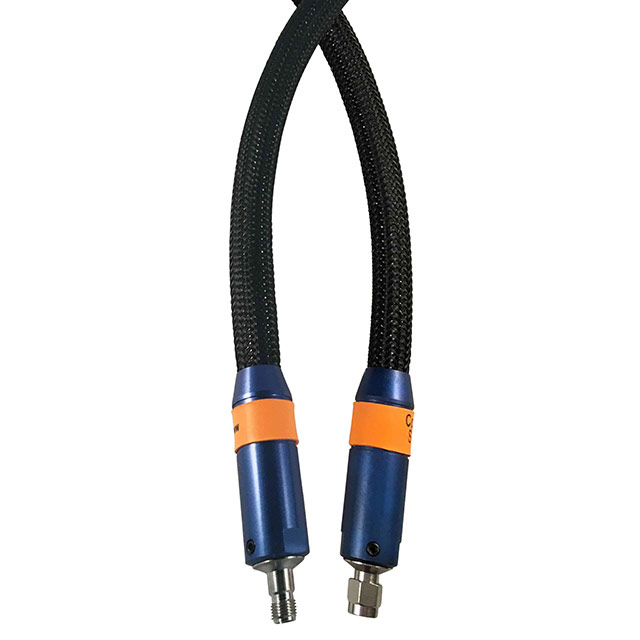

ConductRF VNA18-S1SF-S24	Free Hanging (In-Line)	Male	-55 C	125 °C	18 GHz	SMA Jack	Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	SMA Plug	Female	VNA	609.6 mm	24 in	SMA to SMA

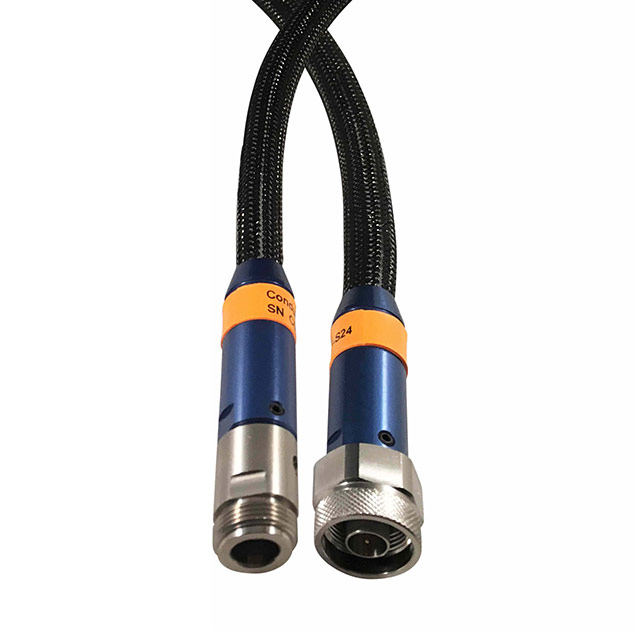

ConductRF VNA18-N1NF-S24	Free Hanging (In-Line)	Female	-55 C	125 °C	18 GHz		Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	N-Type Jack	Male	VNA	609.6 mm	24 in	N-Type to N-Type
ConductRF VNA18-N1N1-S48	Free Hanging (In-Line)	Male	-55 C	125 °C	18 GHz		Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	N-Type Plug	Male	VNA			N-Type to N-Type		4 ft	1200 mm	48 in

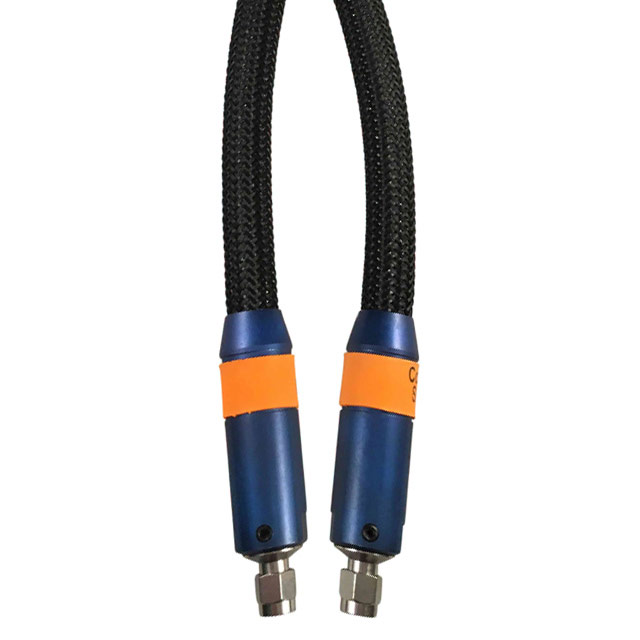

ConductRF VNA18-S1S1-S48	Free Hanging (In-Line)	Male	-55 C	125 °C	18 GHz	SMA Plug	Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	SMA Plug	Male	VNA			SMA to SMA		4 ft	1200 mm	48 in
ConductRF VNA18-S1S1-S24	Free Hanging (In-Line)	Male	-55 C	125 °C	18 GHz	SMA Plug	Black	50 Ohms	Free Hanging (In-Line)	Armored Cable Shielded	SMA Plug	Male	VNA	609.6 mm	24 in	SMA to SMA
