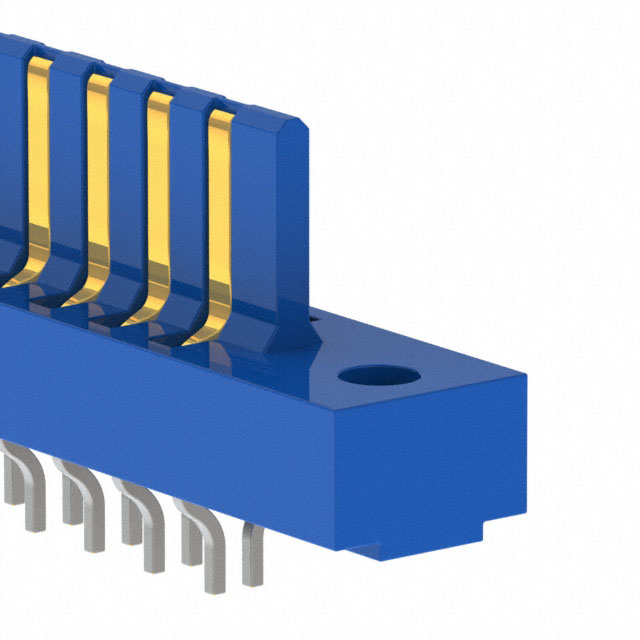

ECM16 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN CARDEDGE MALE 32POS 0.156

Part	Material - Insulation	Card Type	Pitch	Pitch	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Card Thickness	Card Thickness	Features	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Gender	Contact Finish	Read Out	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

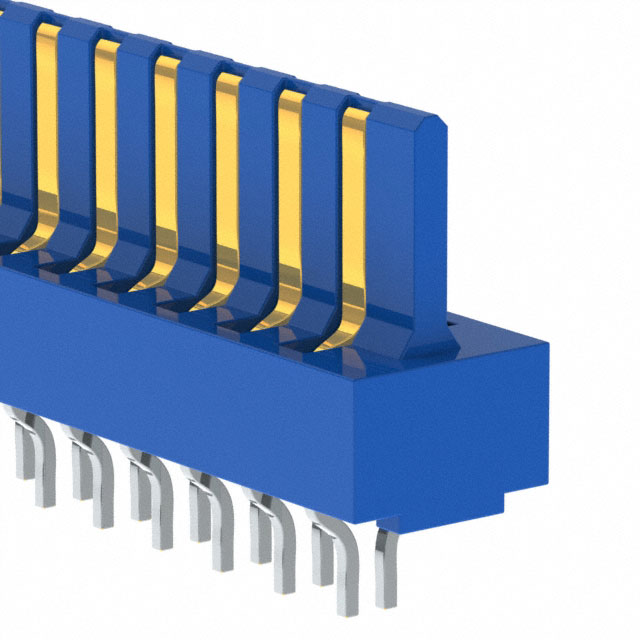

Sullins Connector Solutions ECM16MMRN	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in	Card Extender	16	-65 ░C	125 °C	Board Edge Straddle Mount	Male	Gold	Dual	Solder

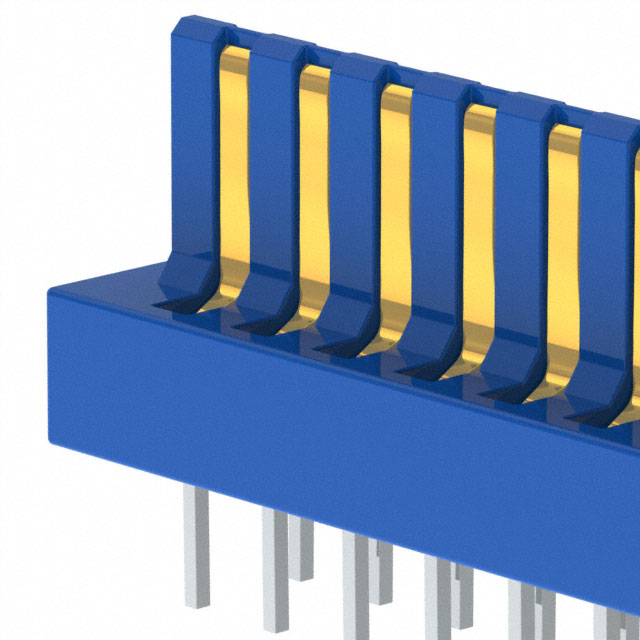

Sullins Connector Solutions ECM16MMSN	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Through Hole	Male	Gold	Dual	Solder

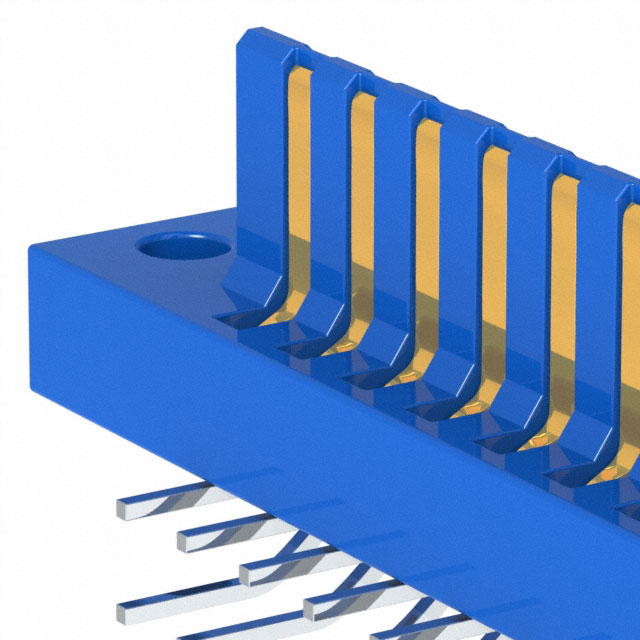

Sullins Connector Solutions ECM16MMVD	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Right Angle Through Hole	Male	Gold	Dual	Solder	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "

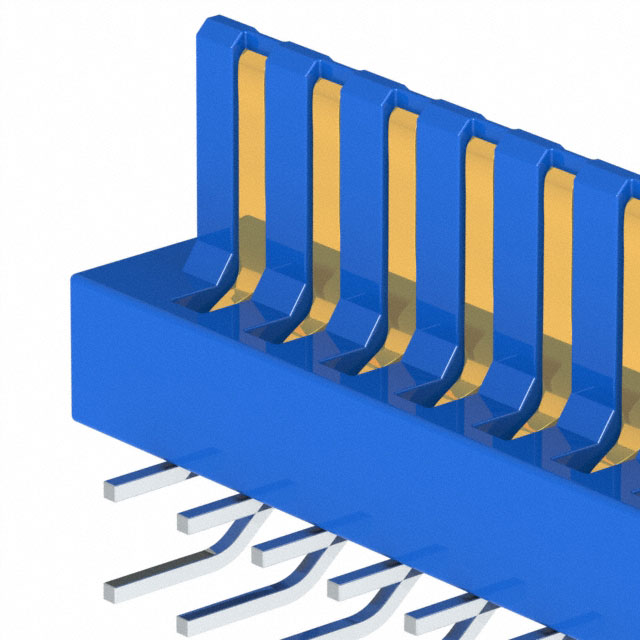

Sullins Connector Solutions ECM16MMAN	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Right Angle Through Hole	Male	Gold	Dual	Solder

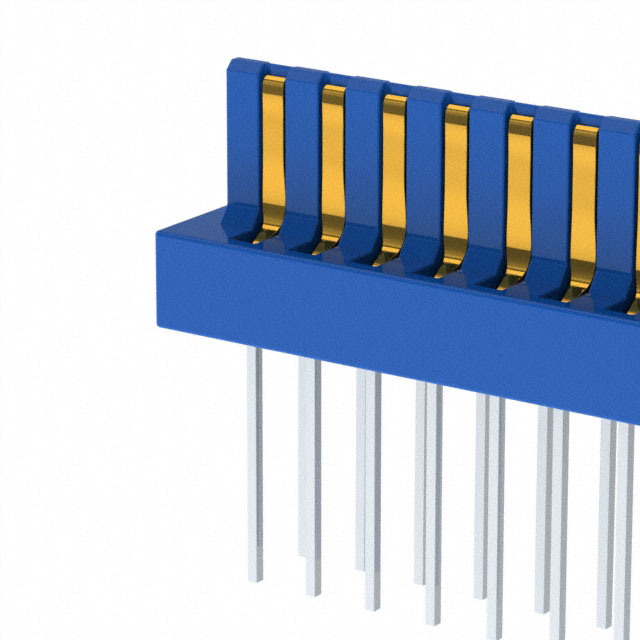

Sullins Connector Solutions ECM16MMMN	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Through Hole	Male	Gold	Dual	Wire Wrap

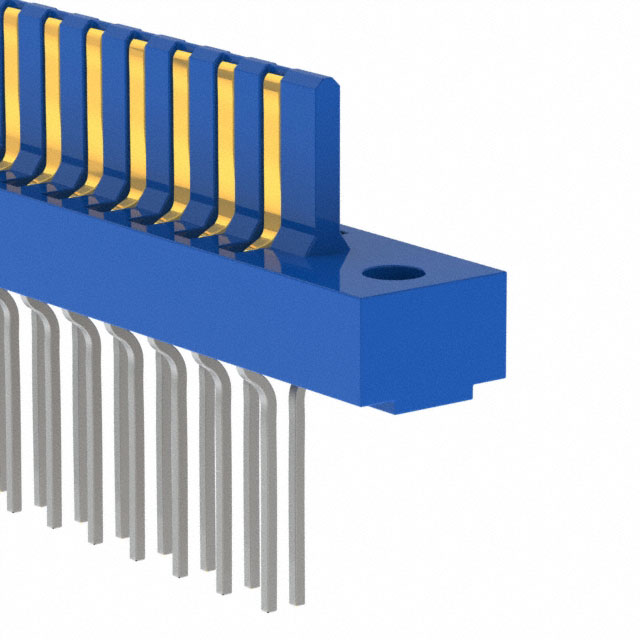

Sullins Connector Solutions ECM16MMND	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in	Card Extender	16	-65 ░C	125 °C	Board Edge Straddle Mount	Male	Gold	Dual	Solder	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ECM16MMVN-S189	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Right Angle Through Hole	Male	Gold	Dual	Solder

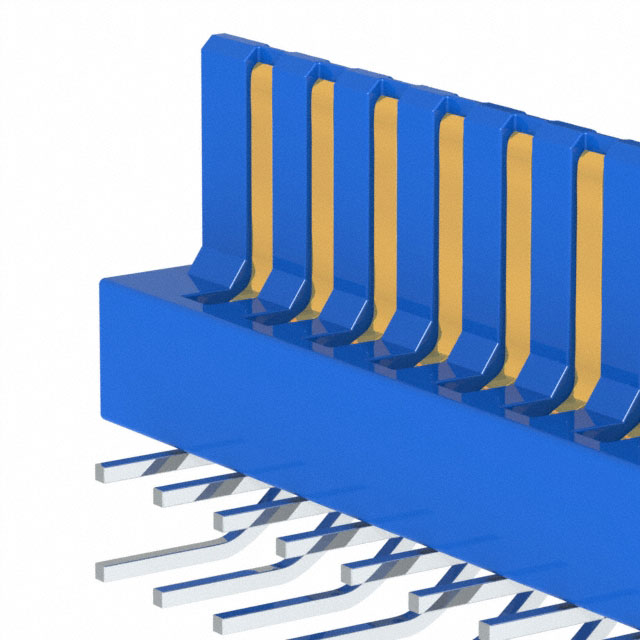

Sullins Connector Solutions ECM16MMVN	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Right Angle Through Hole	Male	Gold	Dual	Solder

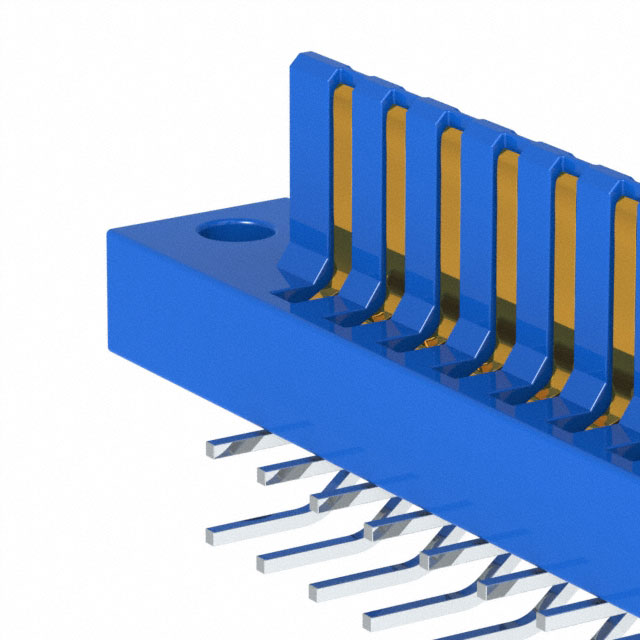

Sullins Connector Solutions ECM16MMAD	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Right Angle Through Hole	Male	Gold	Dual	Solder	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ECM16MMDN	Polybutylene Terephthalate (PBT)	Fits Female Edgecards	3.96 mm	0.156 in	2	30 Áin	0.76 Ám	Phosphor Bronze	1.57 mm	0.062 in		16	-65 ░C	125 °C	Right Angle Through Hole	Male	Gold	Dual	Solder
