079107 Series

Manufacturer: Molex

Catalog

MGRID VREC DR W/OPGS GFLF 4CKT

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Applications	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Fastening Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Contact Shape	Style	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Number of Positions	Connector Type	Contact Length - Post
Molex 0791077126
Molex 0791077271	Solder	-55 °C	125 °C	0.075 in	1.91 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	30 Áin	0.76 Ám	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	44	Receptacle
Molex 0791077274	Solder	-55 °C	125 °C	0.075 in	1.91 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	30 Áin	0.76 Ám	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	50	Receptacle
Molex 0791070006	Solder	-55 °C	125 °C		3 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin-Lead	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	15 µin	0.38 µm	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	14	Receptacle	0.118 in
Molex 0791077072	Solder	-55 °C	125 °C		3 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	30 Áin	0.76 Ám	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	46	Receptacle	0.118 in

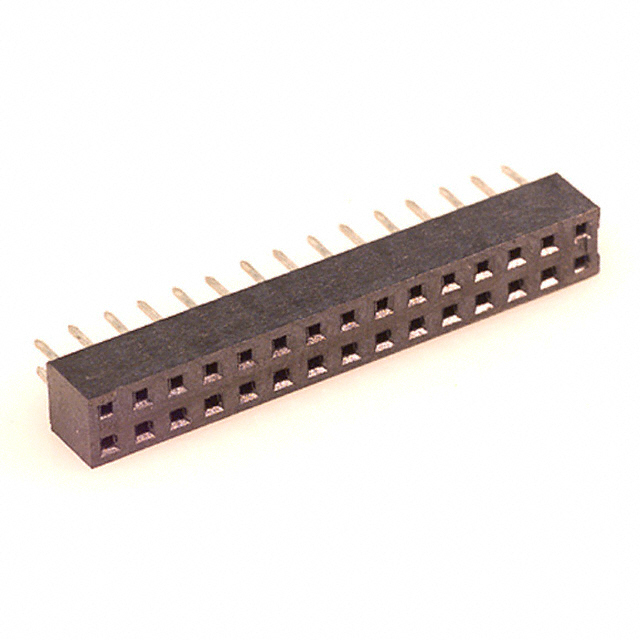

Molex 0791070014	Solder	-55 °C	125 °C		3 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin-Lead	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	15 µin	0.38 µm	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	30	Receptacle	0.118 in
Molex 0791077269	Solder	-55 °C	125 °C	0.075 in	1.91 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	30 Áin	0.76 Ám	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	40	Receptacle

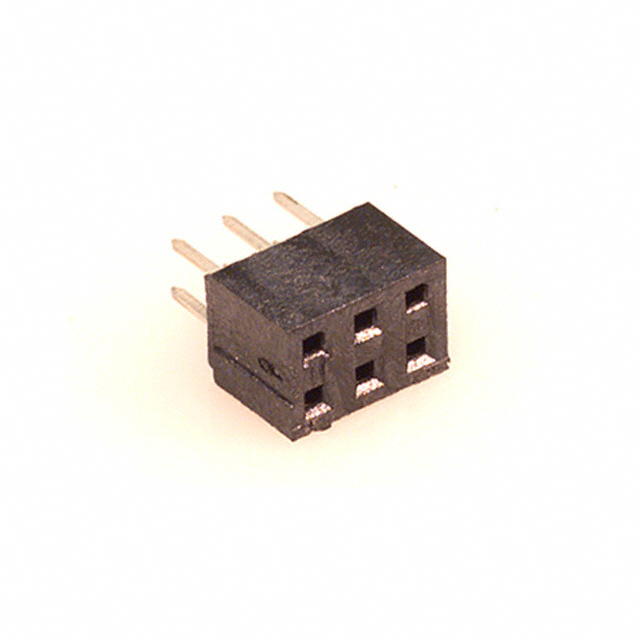

Molex 0791070002	Solder	-55 °C	125 °C		3 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin-Lead	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	15 µin	0.38 µm	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	6	Receptacle	0.118 in
Molex 0791077023	Solder	-55 °C	125 °C		3 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	15 µin	0.38 µm	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	48	Receptacle	0.118 in

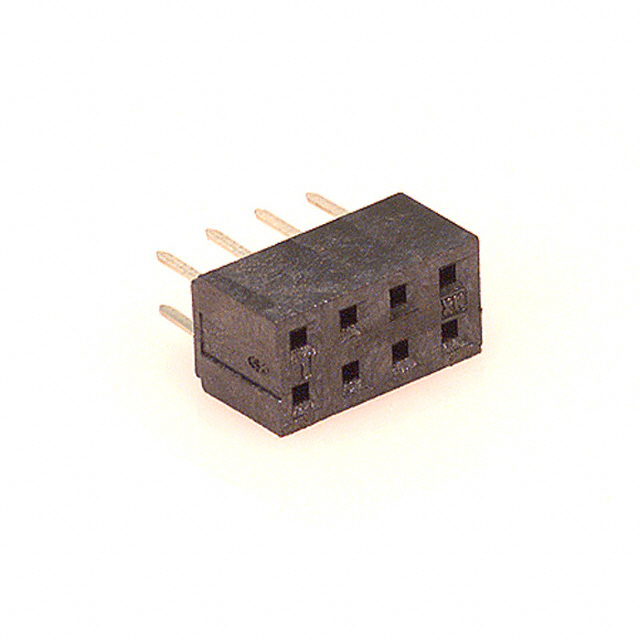

Molex 0791070003	Solder	-55 °C	125 °C		3 mm	74.8 Áin	1.9 Ám	125 VDC	Automotive General Purpose Telecommunications	4.45 mm	0.175 in	Gold	Tin-Lead	0.079 in	2 mm	2	Push-Pull	Phosphor Bronze	15 µin	0.38 µm	All	Black	Square	Board to Board Cable	Through Hole	0.079 in	2 mm	Female Socket	8	Receptacle	0.118 in
