887-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 16POS 0.156

...

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Card Type	Mounting Type	Contact Material	Contact Finish	Read Out	Pitch	Pitch	Number of Rows	Termination	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions	Termination Rows [custom]	Features	Number of Rows [custom]

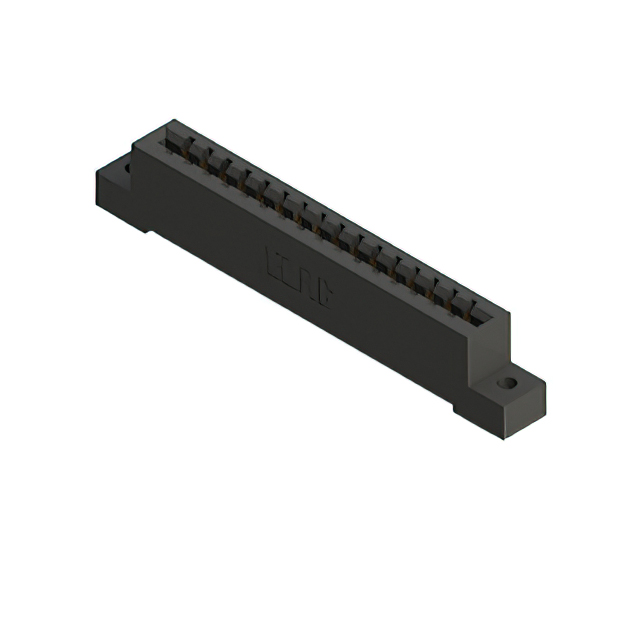

EDAC Inc. 887-016-544-102	1	Polyphenylene Sulfide (PPS)	16	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Black	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	Single	3.96 mm	0.156 in	1	Wire Wrap	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16
EDAC Inc. 887-016-555-201		Polyphenylene Sulfide (PPS)	8				Black	Non Specified - Dual Edge	Board Edge Straddle Mount	Copper Alloy	Gold	Dual	3.96 mm	0.156 in		Solder	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16	2	Card Extender	2
EDAC Inc. 887-016-558-101	1	Polyphenylene Sulfide (PPS)	16				Black	Non Specified - Single Edge	Right Angle Through Hole	Copper Alloy	Gold	Single	3.96 mm	0.156 in	1	Solder	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16
EDAC Inc. 887-016-542-607	1	Polyphenylene Sulfide (PPS)	16	M3 Threaded Insert Top Mount Opening			Black	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	Single	3.96 mm	0.156 in	1	Wire Wrap	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16
EDAC Inc. 887-016-541-107	1	Polyphenylene Sulfide (PPS)	16	Flush Mount M3 Threaded Insert Top Opening			Black	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	Single	3.96 mm	0.156 in	1	Wire Wrap	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16
EDAC Inc. 887-016-540-104	1	Polyphenylene Sulfide (PPS)	16	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Black	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	Single	3.96 mm	0.156 in	1	Wire Wrap	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16
EDAC Inc. 887-016-542-603	1	Polyphenylene Sulfide (PPS)	16	Floating Bobbin Top Mount Opening	2.95 mm	0.116 "	Black	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	Single	3.96 mm	0.156 in	1	Wire Wrap	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16
EDAC Inc. 887-016-524-204		Polyphenylene Sulfide (PPS)	8	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Black	Non Specified - Dual Edge	Through Hole	Copper Alloy	Gold	Dual	3.96 mm	0.156 in		Solder	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16	2		2
EDAC Inc. 887-016-523-203		Polyphenylene Sulfide (PPS)	8	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Black	Non Specified - Dual Edge	Through Hole	Copper Alloy	Gold	Dual	3.96 mm	0.156 in		Solder	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16	2		2

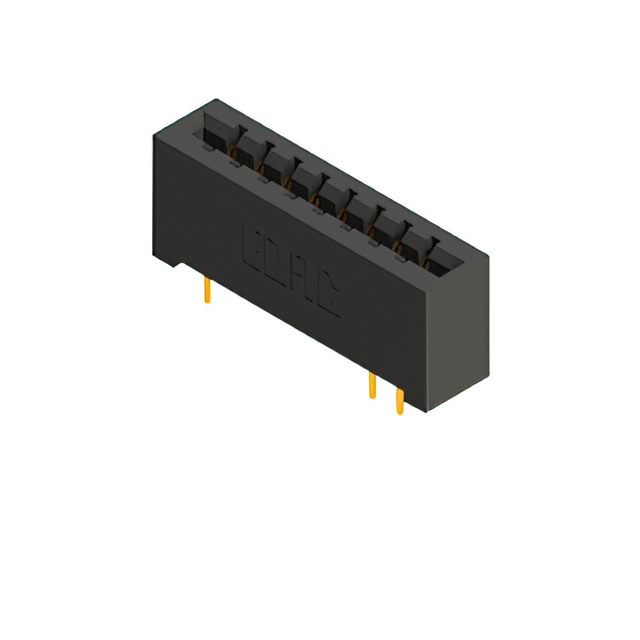

EDAC Inc. 887-016-542-201		Polyphenylene Sulfide (PPS)	8				Black	Non Specified - Dual Edge	Through Hole	Copper Alloy	Gold	Dual	3.96 mm	0.156 in		Wire Wrap	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Female	16	2		2
