SDN 16 Series
Manufacturer: SolaHD
Beta
⌘K

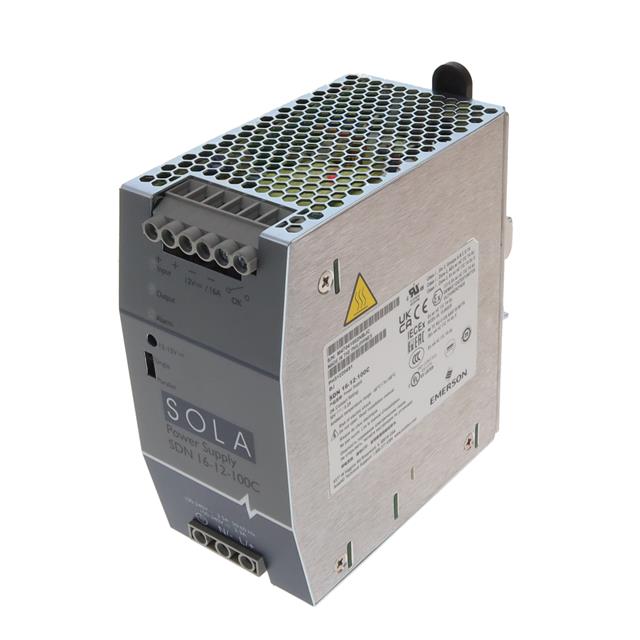

AC/DC DIN RAIL SUPPLY 12V 192W
| Part | Power (Watts) | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Features | Applications | Input Type | Efficiency | Approval Agency | DC Voltage - Input (Max) [Max] | Voltage - Output 1 | Number of Outputs | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | DC Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SolaHD | 192 W | 264 VAC | 85 VAC | Adjustable Output IP20 Universal Input | Hazardous Locations Industrial ITE (Commercial) | AC or DC | 86.5 % | CE cULus cURus EAC | 375 V | 12 V | 1 | 16 A | 4.36 in | 59.9 mm | 4.85 " | 2.36 " | 110.7 mm | 123.2 mm | 90 V |
