PPPC062 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 12POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Insulation Color	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows [custom]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Voltage Rating	Termination	Contact Finish - Post	Material Flammability Rating	Contact Finish - Mating	Number of Positions Loaded	Connector Type	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

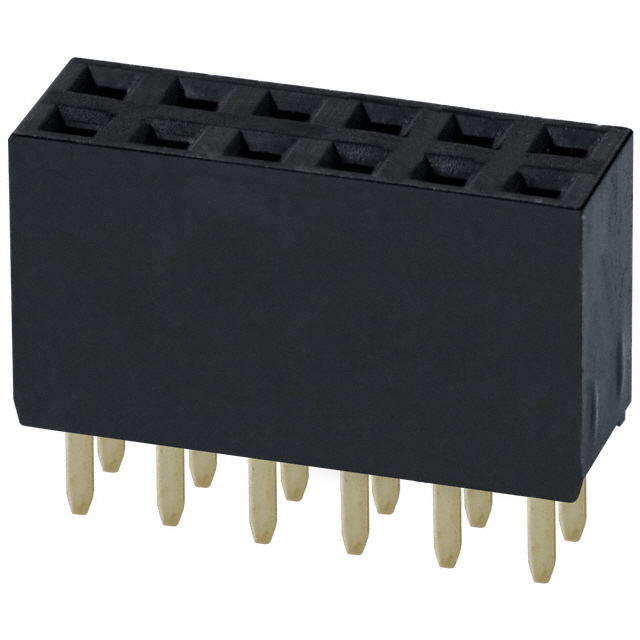

Sullins Connector Solutions PPPC062LFBN-RC	Square	Polyester	Phosphor Bronze	Flash	Female Socket	Push-Pull	0.1 in	2.54 mm	Through Hole	-40 C	105 ░C	Flash	Black	12	0.126 "	3.2 mm	2	3 A	0.1 "	2.54 mm	250 V	Solder	Gold	UL94 V-0	Gold	All	Header	0.335 "	8.51 mm
Sullins Connector Solutions PPPC062LJBN	Square	Polyester	Phosphor Bronze	Flash	Female Socket	Push-Pull	0.1 in	2.54 mm	Right Angle Through Hole	-40 C	105 ░C	Flash	Black	12			2	3 A	0.1 "	2.54 mm	250 V	Solder	Gold	UL94 V-0	Gold	All	Header			0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPPC062LJBN-RC	Square	Polyester	Phosphor Bronze	Flash	Female Socket	Push-Pull	0.1 in	2.54 mm	Right Angle Through Hole	-40 C	105 ░C	Flash	Black	12			2	3 A	0.1 "	2.54 mm	250 V	Solder	Gold	UL94 V-0	Gold	All	Header			0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPPC062KFMS	Square	Polyester	Phosphor Bronze	Flash	Female Socket	Push-Pull	0.1 in	2.54 mm	Surface Mount	-40 C	125 °C	Flash	Black	12			2	3 A	0.1 "	2.54 mm	250 V	Solder	Gold	UL94 V-0	Gold	All	Header		7.6 mm	0.299 "
