892-108 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 108POS 0.100

...

Part	Card Type	Read Out	Termination	Contact Type	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Material - Insulation	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Rows [custom]	Termination Rows [custom]	Color	Pitch	Pitch	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-108-500-201	Non Specified - Dual Edge	Dual	Solder Eyelet(s)	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm
EDAC Inc. 892-108-556-201	Non Specified - Dual Edge	Dual	Solder	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm	Card Extender

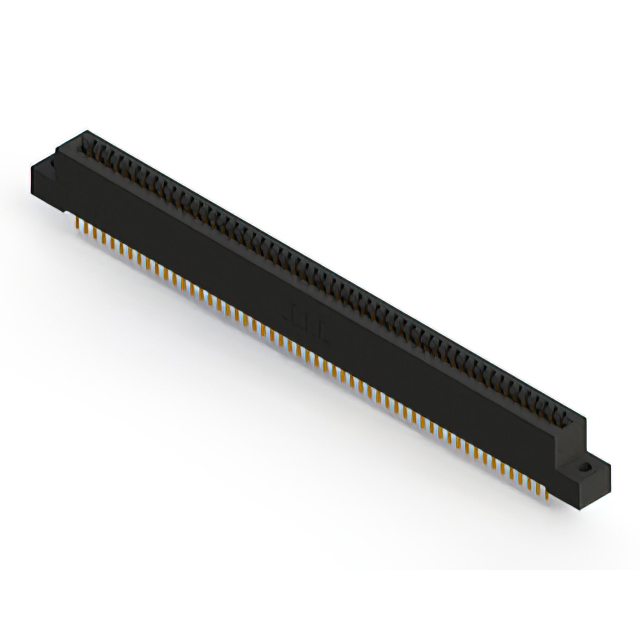

EDAC Inc. 892-108-521-202	Non Specified - Dual Edge	Dual	Solder	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 892-108-523-203	Non Specified - Dual Edge	Dual	Solder	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm		Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 892-108-544-203	Non Specified - Dual Edge	Dual	Wire Wrap	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm		Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 892-108-541-201	Non Specified - Dual Edge	Dual	Wire Wrap	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm
EDAC Inc. 892-108-541-202	Non Specified - Dual Edge	Dual	Wire Wrap	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 892-108-555-201	Non Specified - Dual Edge	Dual	Solder	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm	Card Extender
EDAC Inc. 892-108-559-204	Non Specified - Dual Edge	Dual	Solder	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm		Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 892-108-555-202	Non Specified - Dual Edge	Dual	Solder	Cantilever	54	0.25 Ám	10 Áin	Gold	Female	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	108	125 °C	-40 C	Copper Alloy	2	2	Black	0.1 "	2.54 mm	Card Extender	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
