WP1384 Series

Catalog

LED CBI 3.4MM GREEN DIFF RA

Part	Viewing Angle	Millicandela Rating	Configuration	Current	Lens Type	Wavelength - Peak	Lens Size [diameter]	Lens Style	Color	Mounting Type	Voltage Rating
Kingbright WP1384AL/GD	60 °	32 mcd	Single	25 mA	Diffused Tinted	565 nm	3.4 mm	Round with Domed Top	Green	Right Angle Through Hole

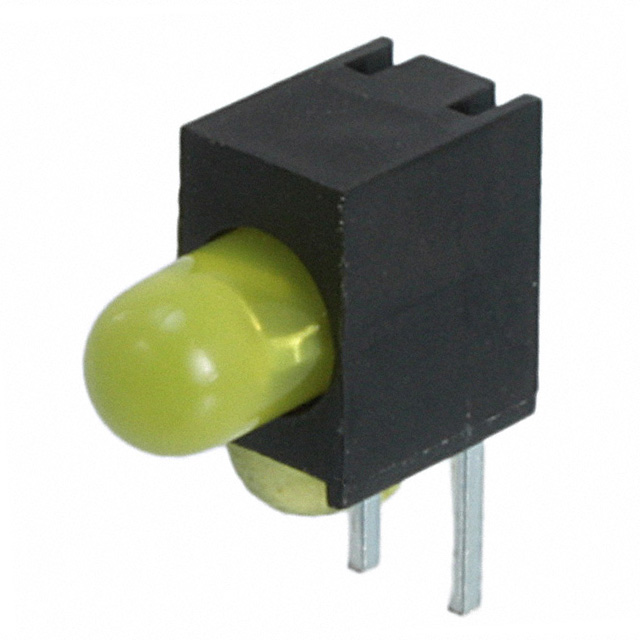

Kingbright WP1384AD/YD	60 °	15 mcd	Single	30 mA	Diffused Tinted	590 nm	3.4 mm	Round with Domed Top	Yellow	Right Angle Through Hole
Kingbright WP1384AL/YD	60 °	15 mcd	Single	30 mA	Diffused Tinted	590 nm	3.4 mm	Round with Domed Top	Yellow	Right Angle Through Hole
Kingbright WP1384AD/SRD	60 °	300 mcd	Single	20 mA 30 mA	Diffused Diffused Red Tinted	655 nm 660 nm	3.4 mm	Round with Domed Top	Red	Right Angle Through Hole	1.85 V

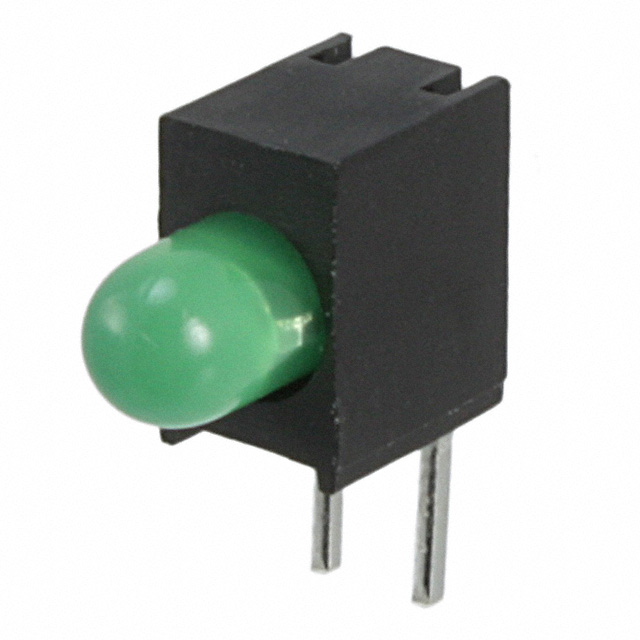

Kingbright WP1384AD/GD	60 °	32 mcd	Single	25 mA	Diffused Tinted	565 nm	3.4 mm	Round with Domed Top	Green	Right Angle Through Hole

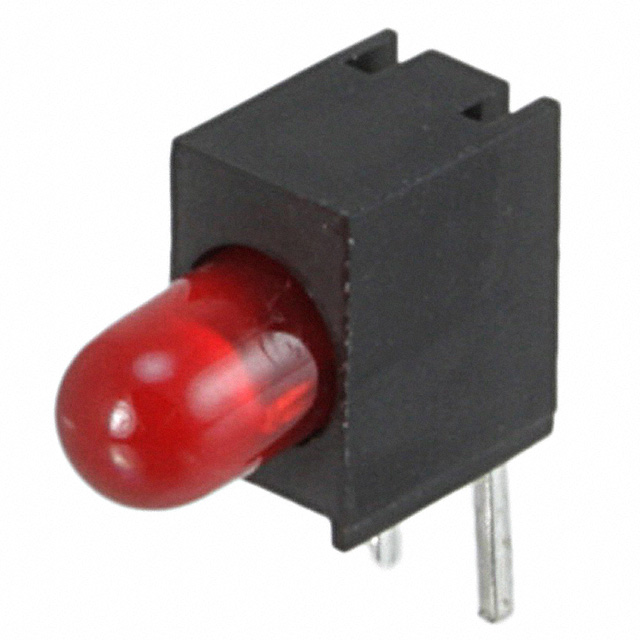

Kingbright WP1384AD/ID	60 °	32 mcd	Single	30 mA	Diffused Tinted	627 nm	3.4 mm	Round with Domed Top	Red	Right Angle Through Hole
Kingbright WP1384AL/ID	60 °	32 mcd	Single	30 mA	Diffused Tinted	627 nm	3.4 mm	Round with Domed Top	Red	Right Angle Through Hole
