5640100 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM 3X1 GRN/RED RA

Part	Lens Type	Current	Wavelength - Peak	Millicandela Rating	Lens Size	Lens Size	Mounting Type	Color	Configuration	Voltage Rating	Viewing Angle	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Current	Current [custom]	Current [custom]
DIALIGHT 5640100121F	Diffused	30mA Green 30mA Red	565 nm 635 nm	10 mcd 12.6 mcd	3 mm	T-1	Right Angle Through Hole	Green (x 1) Red (x 2)	3 High	2 V 2.1 V	60 °	Round with Domed Top
DIALIGHT 5640100822F	Clear	20mA Green 30mA Blue 30mA Yellow	470 nm 523 nm 588 nm		3 mm	T-1	Right Angle Through Hole	Blue Green Yellow	3 High	2 V 3 V 3.5 V		Round with Domed Top	210 mcd	320 mcd	495 mcd	56 °	45 °	30 °
DIALIGHT 5640100814F	Diffused Tinted		565 nm	12.6 mcd	3 mm	T-1	Right Angle Through Hole	Green	3 High	2.1 V	60 °	Round with Domed Top							20 mA

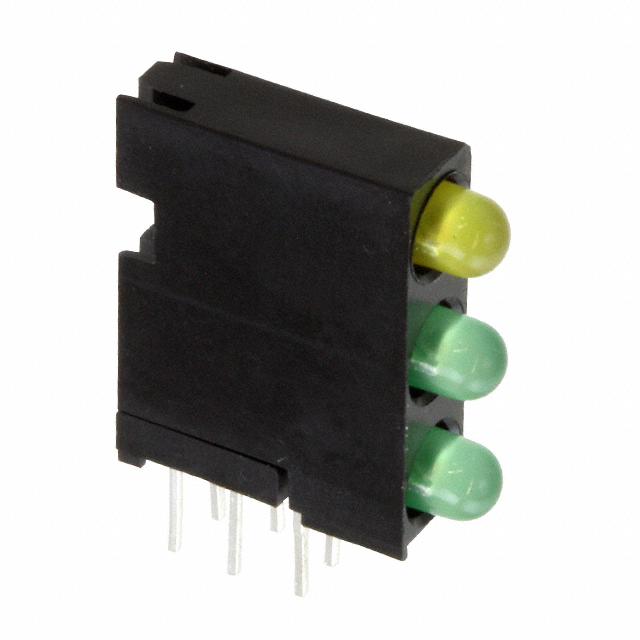

DIALIGHT 5640100322F	Diffused		565 nm 585 nm		3 mm	T-1	Right Angle Through Hole	Green (x 2) Yellow (x 1)	3 High	2.1 V 2.1 V	60 °	Round with Domed Top		10 mcd	12.6 mcd				20 mA 30 mA
DIALIGHT 5640100211F	Diffused	30mA Green 30mA Red	565 nm 635 nm	10 mcd 12.6 mcd	3 mm	T-1	Right Angle Through Hole	Green (x 1) Red (x 2)	3 High	2 V 2.1 V	60 °	Round with Domed Top

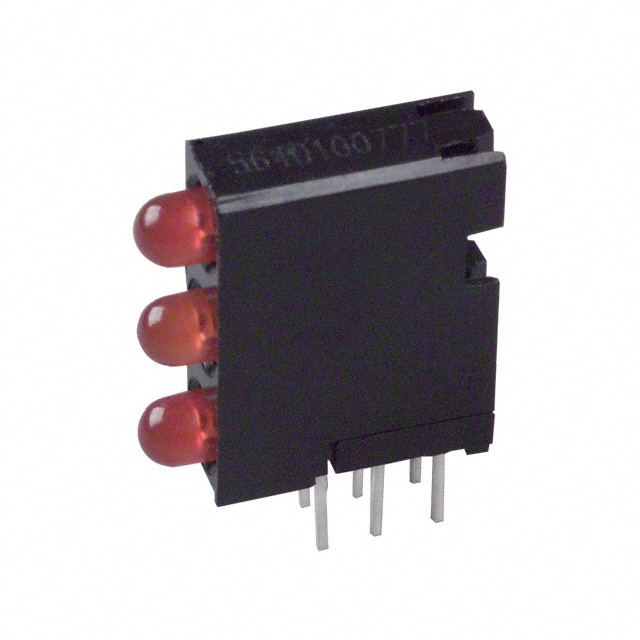

DIALIGHT 5640100777F	Diffused Tinted		600 nm	7 mcd			Right Angle Through Hole	Orange	3 High		60 °								10 mA

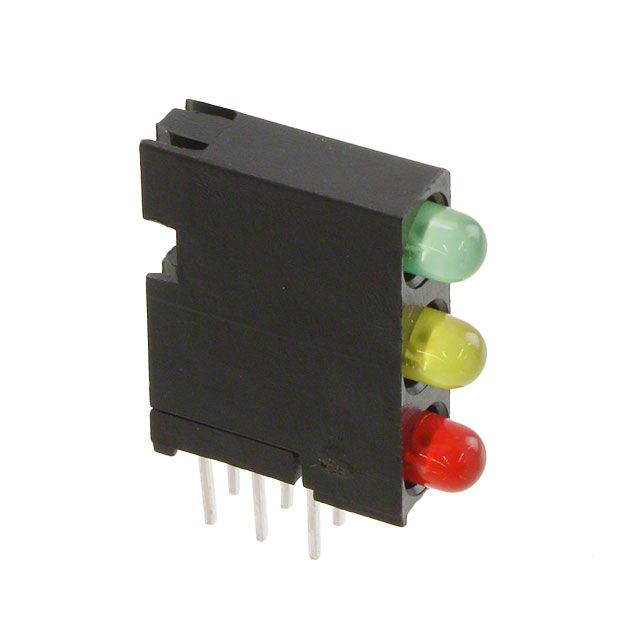

DIALIGHT 5640100231F	Diffused	20mA Yellow 30mA Green 30mA Red	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	3 mm	T-1	Right Angle Through Hole	Green (x 1) Red (x 1) Yellow (x 1)	3 High	2 V 2.1 V 2.1 V	60 °	Round with Domed Top
DIALIGHT 5640100826F	Clear	20mA Green 30mA Blue 30mA Yellow	470 nm 523 nm 588 nm		3 mm	T-1	Right Angle Through Hole	Blue Green Yellow	3 High	2 V 3 V 3.5 V		Round with Domed Top	210 mcd	320 mcd	495 mcd	56 °	45 °	30 °
DIALIGHT 5640100311F	Diffused		585 nm 635 nm	10 mcd 10 mcd	3 mm	T-1	Right Angle Through Hole	Red (x 2) Yellow (x 1)	3 High	2 V 2.1 V	60 °	Round with Domed Top								30 mA	20 mA

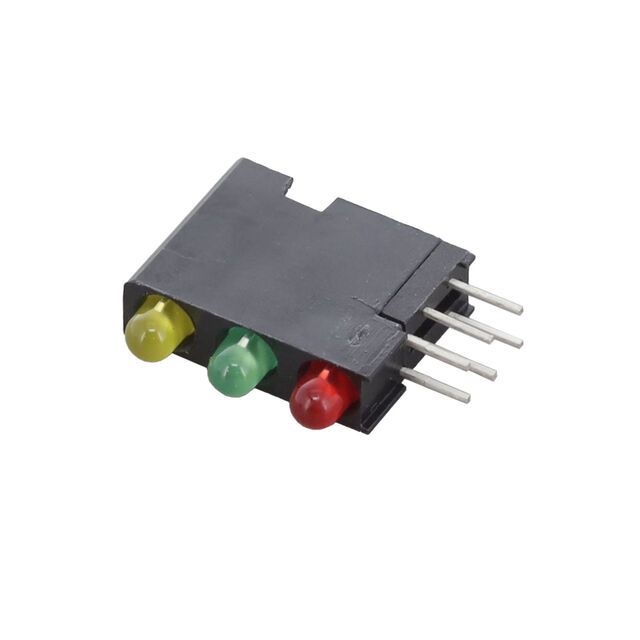

DIALIGHT 5640100321F	Diffused	20mA Yellow 30mA Green 30mA Red	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	3 mm	T-1	Right Angle Through Hole	Green (x 1) Red (x 1) Yellow (x 1)	3 High	2 V 2.1 V 2.1 V	60 °	Round with Domed Top
