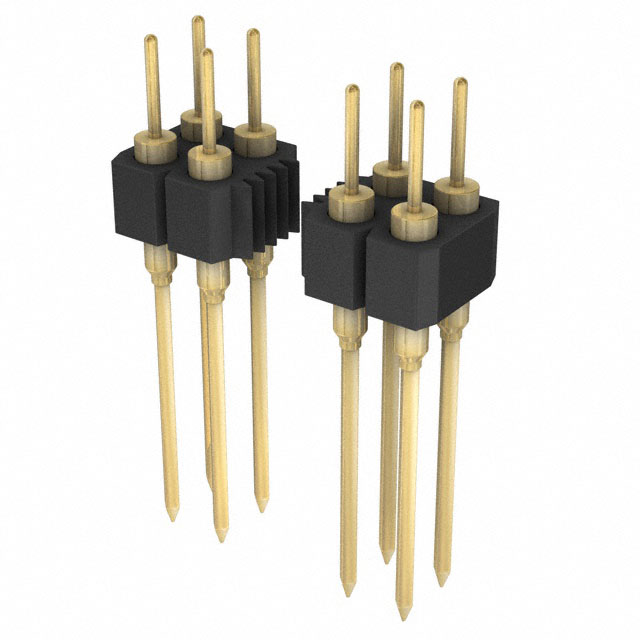

453-10 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Insulation Material	Contact Shape	Shrouding	Material Flammability Rating	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Material	Contact Finish - Post	Voltage Rating	Number of Rows [custom]	Mounting Type	Contact Length - Post	Contact Length - Post	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Preci-Dip 453-10-218-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	18	0.25 µm	10 µin
Preci-Dip 453-10-260-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	60	0.25 µm	10 µin
Preci-Dip 453-10-242-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	42	0.25 µm	10 µin
Preci-Dip 453-10-248-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	48	0.25 µm	10 µin
Preci-Dip 453-10-212-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	12	0.25 µm	10 µin
Preci-Dip 453-10-240-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	40	0.25 µm	10 µin
Preci-Dip 453-10-262-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	62	0.25 µm	10 µin
Preci-Dip 453-10-222-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	22	0.25 µm	10 µin
Preci-Dip 453-10-254-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	54	0.25 µm	10 µin
Preci-Dip 453-10-244-00-001101	10 Áin	0.25 çm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular Square	Unshrouded	UL94 V-0	Gold	3 A	-55 C	125 °C	Male Pin	Push-Pull	0.1 "	2.54 mm	Header	22.36 mm	0.88 in	All	Brass	Gold	150 VDC	2	Through Hole	0.51 in	12.95 mm	Wire Wrap	0.1 in	2.54 mm	3.73 mm	0.147 in	44	0.25 µm	10 µin
