120075 Series

Manufacturer: Molex

Catalog

MICRO-CHANGE (M12) DUAL KEYWAY WITH PG7 CABLE FITTING, 90° ANGLE FEMALE, 3 POLES, CABLE DIAMETER 3.30-6.60MM

Part	Voltage Rating	Color	Contact Finish - Mating	Ingress Protection	Orientation	Shell Finish	Applications	Features	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Size - Insert	Contact Material	Mounting Type	Connector Type	Insert Material	Backshell Material, Plating	Current Rating (Amps)	Shell Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shielding	Cable Opening [custom]	Cable Opening [custom]
Molex 1200750016	250 VAC	Black Silver	Gold	IP67 - Dust Tight Waterproof	Keyed Dual	Nickel	Industrial	Backshell Coupling Nut	0.26 in	3.3 mm	6.6 mm	0.13 in	M12-3	Copper Alloy	Free Hanging (In-Line) Right Angle	Female Sockets Plug	Nylon Polyamide (PA)	Nylon Polyamide (PA)	4 A	Brass	Metal	185 °C	-40 °C	Screw

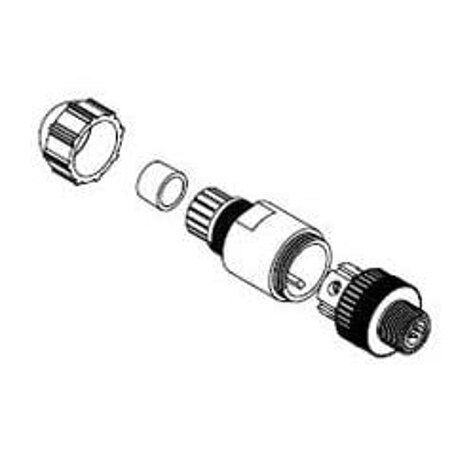

Molex 1200750017	250 VAC	Black Silver	Gold	IP67 - Dust Tight Waterproof	Keyed Dual	Nickel	Industrial	Backshell	0.26 in	3.3 mm	6.6 mm	0.13 in	M12-3	Copper Alloy	Free Hanging (In-Line)	Male Pins Receptacle	Nylon Polyamide (PA)	Nylon Polyamide (PA)	4 A	Brass	Metal	185 °C	-40 °C	Screw
Molex 1200750019	250 VAC	Black Silver	Gold	IP67 - Dust Tight Waterproof	Keyed Dual	Nickel		Backshell Coupling Nut	0.26 in	3.3 mm	6.6 mm	0.13 in	M12-3	Copper Alloy	Free Hanging (In-Line) Right Angle	Male Pins Receptacle	Nylon Polyamide (PA)		4 A	Brass	Metal	185 °C	-40 °C	Screw	Unshielded
Molex 1200755006

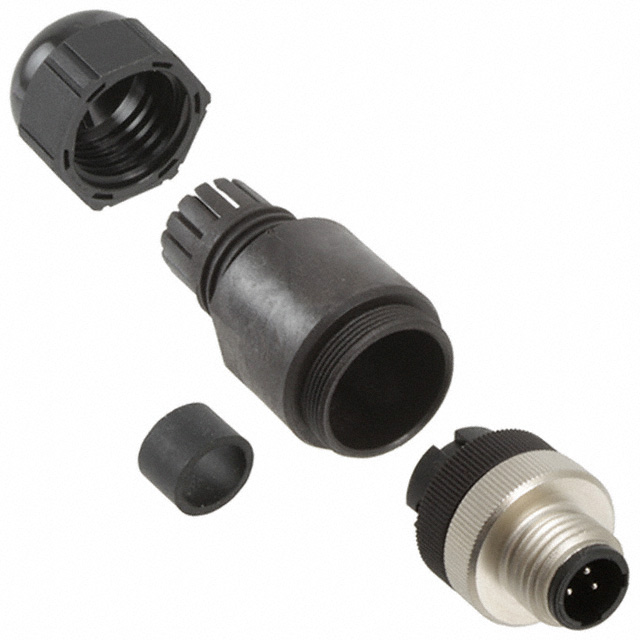

Molex 1200750018	250 VAC	Black Silver	Gold	IP67 - Dust Tight Waterproof	Keyed Dual	Nickel	Industrial	Backshell					M12-3	Copper Alloy	Free Hanging (In-Line)	Male Pins Receptacle	Nylon Polyamide (PA)	Nylon 6/6 Polyamide (PA66)	4 A	Brass	Metal	185 °C	-40 °C	Screw		4.1 mm 8.1 mm	0.161 in 0.319 in
