G8032 Series

Catalog

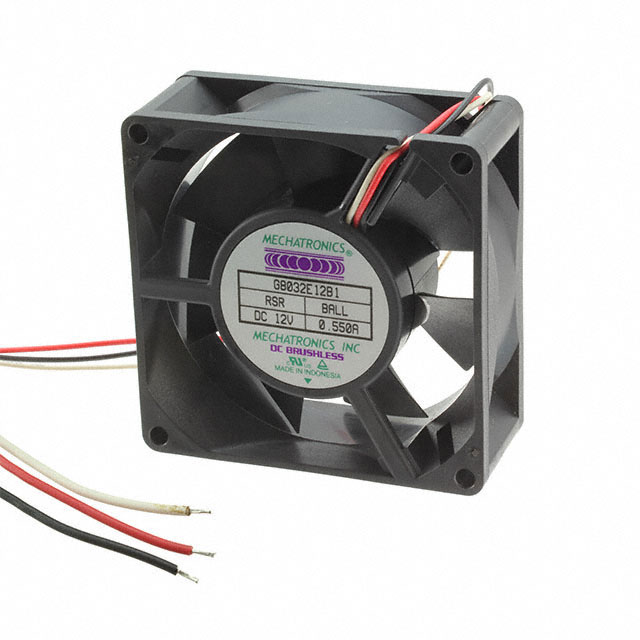

FAN AXIAL 80X32MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Voltage - Rated	Features	Approval Agency	Noise	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Fan Type	RPM	Ingress Protection	Bearing Type	Air Flow	Air Flow	Termination
Mechatronics Fan Group G8032M24B-RSR-EM	0.2 A	Polybutylene Terephthalate (PBT)	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	38 dB(A)	32 mm	129.73 g	0.286 lb	72.2 Pa	0.29 in H2O	80 mm	80 mm	Tubeaxial	3500 RPM	IP57 - Dust Protected Waterproof	Ball	41 CFM	1.15 m³/min	2 Wire Leads

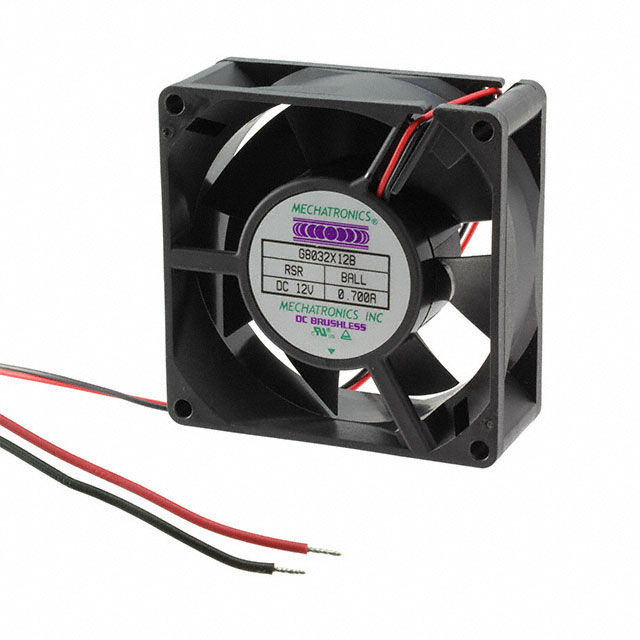

Mechatronics Fan Group G8032X12B-RSR		Polybutylene Terephthalate (PBT)	12 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL		32 mm	129.73 g	0.286 lb			80 mm	80 mm	Tubeaxial			Ball			2 Wire Leads
Mechatronics Fan Group G8032X24B-RSR-EM		Polybutylene Terephthalate (PBT)	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL		32 mm	129.73 g	0.286 lb			80 mm	80 mm	Tubeaxial		IP57 - Dust Protected Waterproof	Ball			2 Wire Leads
Mechatronics Fan Group G8032M12B-RSR-EM3	0.26 A	Polybutylene Terephthalate (PBT)	12 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	38 dB(A)	32 mm	129.73 g	0.286 lb	72.2 Pa	0.29 in H2O	80 mm	80 mm	Tubeaxial	3500 RPM		Ball	41 CFM	1.15 m³/min	2 Wire Leads
Mechatronics Fan Group G8032E24B-RS	0.33 A	Polybutylene Terephthalate (PBT)	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	46 dB(A)	32 mm	129.73 g	0.286 lb	109.6 Pa	0.44 in H2O	80 mm	80 mm	Tubeaxial	4500 RPM		Ball	52 CFM	1.46 mł/min	2 Wire Leads

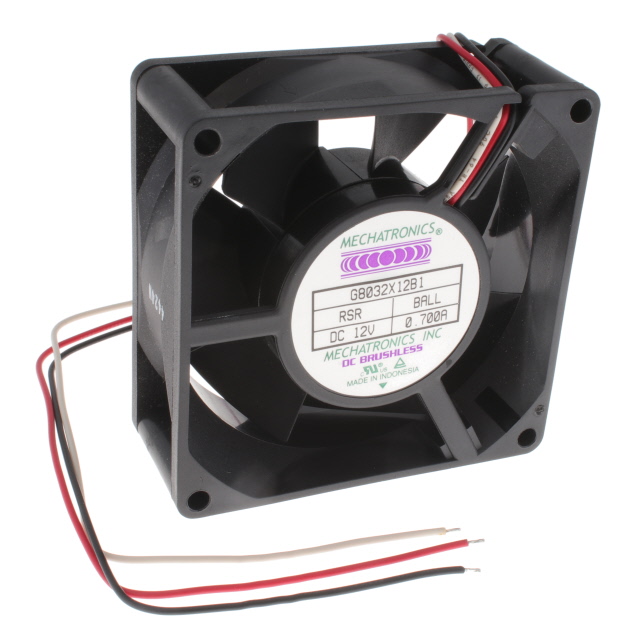

Mechatronics Fan Group G8032X12B1-RSR		Polybutylene Terephthalate (PBT)	12 VDC	Speed Sensor (Tach) Thermal Overload Protector (TOP)	CE cUL TUV UL		32 mm	129.73 g	0.286 lb			80 mm	80 mm	Tubeaxial			Ball			3 Wire Leads
Mechatronics Fan Group G8032H24B-RSR	0.25 A	Polybutylene Terephthalate (PBT)	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	42 dB	32 mm	129.73 g	0.286 lb	92.2 Pa	0.37 in H2O	80 mm	80 mm	Tubeaxial	4000 RPM		Ball	48 CFM	1.34 m³/min	2 Wire Leads
Mechatronics Fan Group G8032H12B1-RSR	0.45 A	Polybutylene Terephthalate (PBT)	12 VDC	Speed Sensor (Tach) Thermal Overload Protector (TOP)	CE cUL TUV UL	42 dB	32 mm	129.73 g	0.286 lb	92.2 Pa	0.37 in H2O	80 mm	80 mm	Tubeaxial	4000 RPM		Ball	48 CFM	1.34 m³/min	3 Wire Leads
Mechatronics Fan Group G8032M24B1-RSR	0.2 A	Polybutylene Terephthalate (PBT)	24 VDC	Speed Sensor (Tach) Thermal Overload Protector (TOP)	CE cUL TUV UL	38 dB(A)	32 mm	129.73 g	0.286 lb	72.2 Pa	0.29 in H2O	80 mm	80 mm	Tubeaxial	3500 RPM		Ball	41 CFM	1.15 m³/min	3 Wire Leads
Mechatronics Fan Group G8032E24B-RSR	0.33 A	Polybutylene Terephthalate (PBT)	24 VDC	Thermal Overload Protector (TOP)	CE cUL TUV UL	46 dB(A)	32 mm	129.73 g	0.286 lb	109.6 Pa	0.44 in H2O	80 mm	80 mm	Tubeaxial	4500 RPM		Ball	52 CFM	1.46 mł/min	2 Wire Leads
