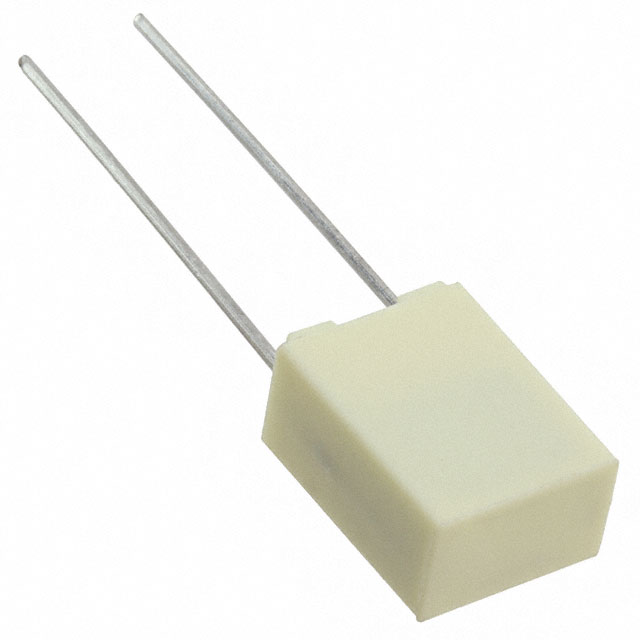

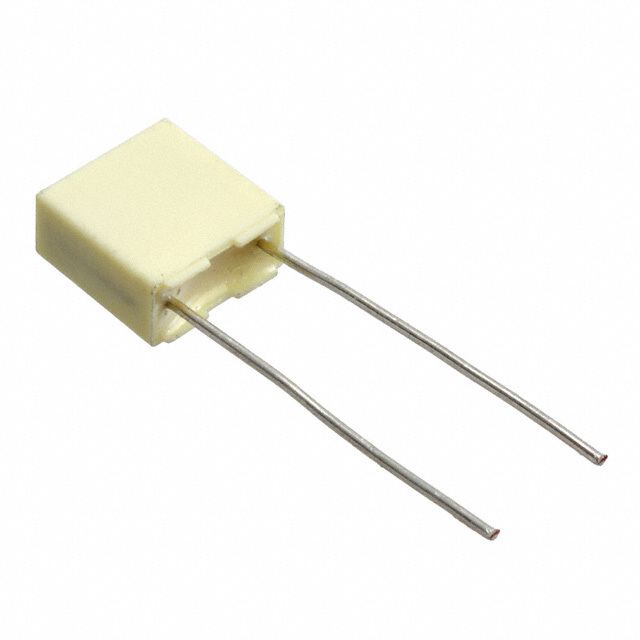

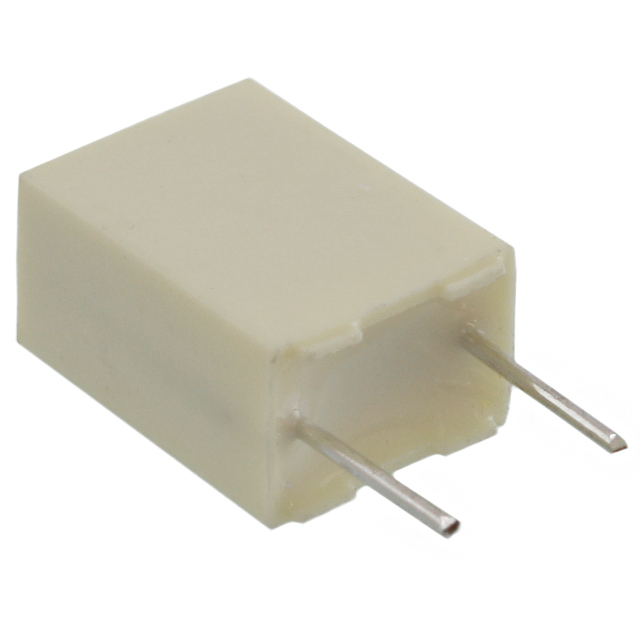

R82EC Series

Manufacturer: KEMET

Catalog

CAP FILM 0.001UF 100V PET 10%( 7.2 X 2.5 X 6.5MM) RADIAL STACKED 5MM 105°C T/R AUTOMOTIVE AEC-Q200

Part	Capacitance	Termination	Dielectric Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Tolerance	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Package / Case	Mounting Type	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R82EC1100CK50K	0.001 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	10 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC2680SH60J	0.068 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC2680DQ60J	0.068 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC2200DQ50J	0.02 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V					Radial	Through Hole	63 V
KEMET R82EC1330SH50J	0.0033 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC1150Z350J	1500 pF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC1330Z350J	0.0033 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC1470DQ50K	0.0047 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	10 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
KEMET R82EC3330AA70J	0.33 µF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V			0.197 "	5 mm	Radial	Through Hole	63 V	0.177 "	0.283 "	4.5 mm	7.2 mm	9.6 mm	0.378 "
KEMET R82EC3100Z370J	100000 pF	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	-55 C	105 ░C	Automotive	5 %	100 V	6.6 mm	0.26 in	0.197 "	5 mm	Radial	Through Hole	63 V	0.098 in	0.283 "	2.5 mm	7.2 mm
