333-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K

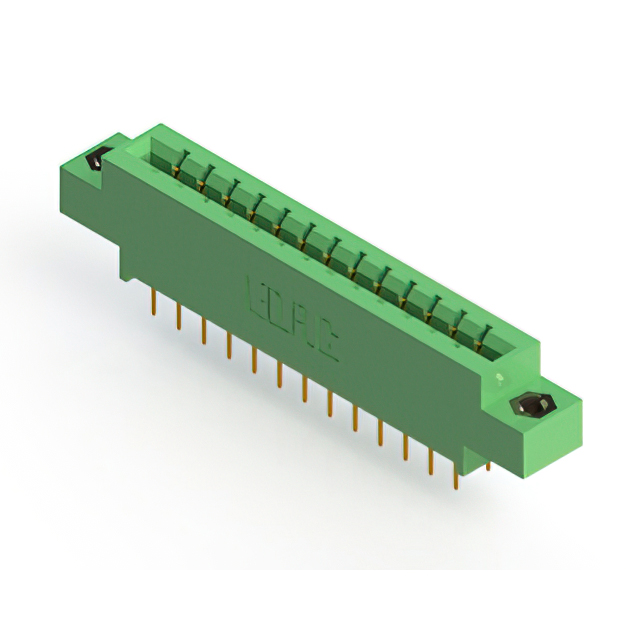

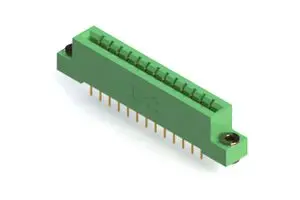

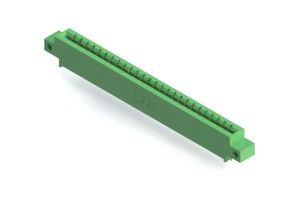

CONN EDGE DUAL FMALE 26POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Flange Feature | Color | Contact Type | Mounting Type | Contact Material | Number of Positions/Bay/Row | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Number of Positions | Card Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount M3 Threaded Insert Top Opening | Green | Cantilever | Right Angle Through Hole | Copper Alloy | 13 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 2 | 26 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount M3 Threaded Insert Top Opening | Green | Cantilever | Through Hole | Copper Alloy | 13 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 2 | 26 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Floating Bobbin Flush Mount | Green | Cantilever | Through Hole | Copper Alloy | 13 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 2 | 26 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 0.116 " | 2.95 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount Top Opening Unthreaded | Green | Cantilever | Through Hole | Copper Alloy | 13 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 2 | 26 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | M3 Threaded Insert Top Mount Opening | Green | Cantilever | Through Hole | Copper Alloy | 13 | Wire Wrap | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 2 | 26 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Dual | ||||
 EDAC Inc. | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | Green | Cantilever | Through Hole | Copper Alloy | 26 | Wire Wrap | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 26 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 0.128 " | 3.25 mm | 1 | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | Green | Cantilever | Right Angle Through Hole | Copper Alloy | 26 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 26 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 0.156 " | 3.96 mm | 1 | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | Side Mount Opening Unthreaded | Green | Cantilever | Through Hole | Copper Alloy | 26 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 26 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 0.128 " | 3.25 mm | 1 | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | Green | Cantilever | Through Hole | Copper Alloy | 26 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 26 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 0.128 " | 3.25 mm | 1 | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Green | Cantilever | Through Hole | Copper Alloy | 26 | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | 26 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | 1 | 1 |
