LCA10 Series

Catalog

CONN TERM RECT TONG 10-14AWG #10

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Tab Thickness [custom]	Tab Thickness [custom]	Terminal Type	Termination	Terminal Style	Mounting Type	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Diameter - Ring ID	Diameter - Ring ID	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Wire Gauge

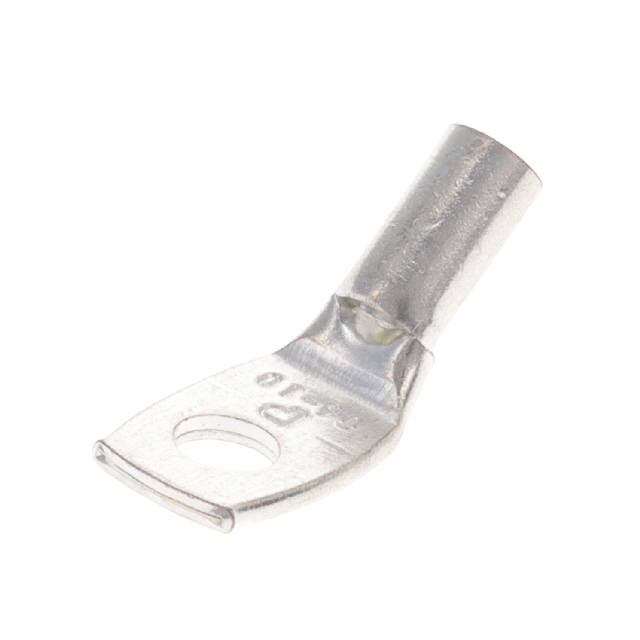

Panduit Corp LCA10-10H-L	5.08 mm	0.2 in	Copper	3.3 mm	0.13 "	5.59 mm	0.22 in	Electro-Tin	0.06 in	1.52 mm	Rectangular Tongue	Barrel Crimp	Single Stud Hole	Free Hanging (In-Line)	Non-Insulated	14 AWG	10 AWG	9.65 mm	0.38 in	10 Stud
Panduit Corp LCA10-14-L			Copper	3.3 mm	0.13 "	5.59 mm	0.22 in	Electro-Tin			Lug Grounding	Barrel Crimp	Single Stud Hole	Free Hanging (In-Line)	Non-Insulated					0.25 Stud	0.27 in	6.86 mm	1.27 mm	0.05 "	29.46 mm	1.16 in	10.67 mm	0.42 in	10 AWG
