204LS Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

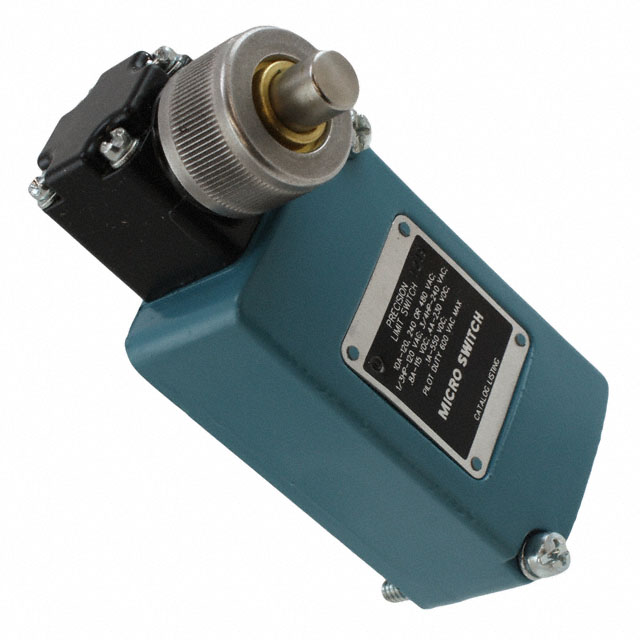

LIMIT SWITCH, PIN PLUNGER, SPDT, 10 A, 480 V, 40 N, LS SERIES
| Part | Voltage Rating - DC | Termination Style | Release Force | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Pretravel | Pretravel | Actuator Type | Voltage Rating - AC | Differential Travel | Differential Travel | Circuit | Operating Force | Current Rating (Amps) | Overtravel | Overtravel | Switch Function | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 115 V | Plug In | 907 gf | 71 °C | -29 °C | IP67 - Dust Tight Waterproof | 0.11 in | 2.8 mm | Side Plunger | 120 V | 1 mm | 0.04 in | SPDT (DB/DM) | 4082 gf | 10 A 800 mA | 6.35 mm | 0.25 " | On-Mom | Chassis Mount |
