MIKQ9 Series

Catalog

CIRC CBL 19POS RCPT TO WIRE 1.5'

Part	Length [x]	Length [x]	1st Connector Orientation	Shielding	Color	2nd Connector Type	1st Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Gender	1st Connector Number of Positions	1st Connector Type	Assembly Configuration	Cable Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Applications	Number of Positions	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Connector Type	Current Rating (Amps)	Primary Material	Termination	Orientation	Mounting Type	Fastening Type	Mounting Feature	Contact Finish - Mating	Length	Length

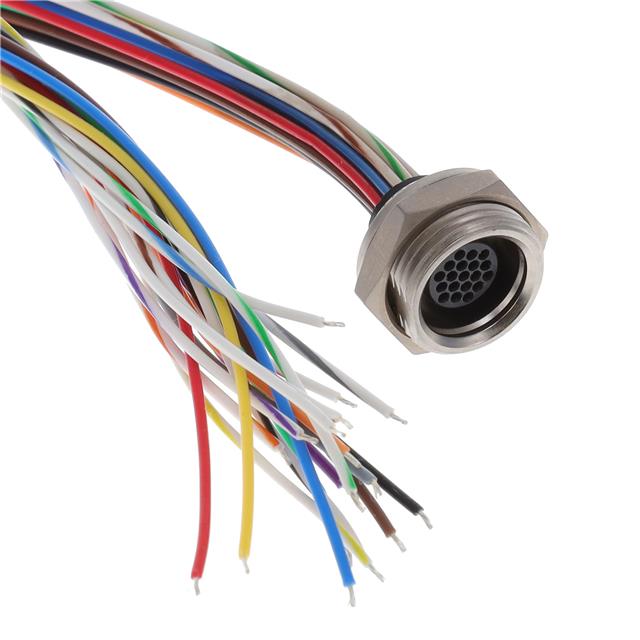

ITT Cannon, LLC MIKQ9-19PH003	457.2 mm	1.5 ft	Keyed	Unshielded	Multiple	Wire Leads	All	Panel Mount	Male Pins	19	Receptacle	Standard	Individual
ITT Cannon, LLC MIKQ9-37PL2				Unshielded	Silver									Copper Alloy	50 µin	1.27 µm	Electroless Nickel	Instrumentation Medical	37	Thermoplastic	-55 C	125 °C	Brass	Receptacle Male Pins	3 A	Metal	Crimp	Keyed	Panel Mount	Push-Pull	Bulkhead - Front Side Nut	Gold
ITT Cannon, LLC MIKQ9-19PL79			Keyed	Unshielded		Wire Leads	All	Panel Mount	Male Pins	19	Receptacle	Standard	Individual

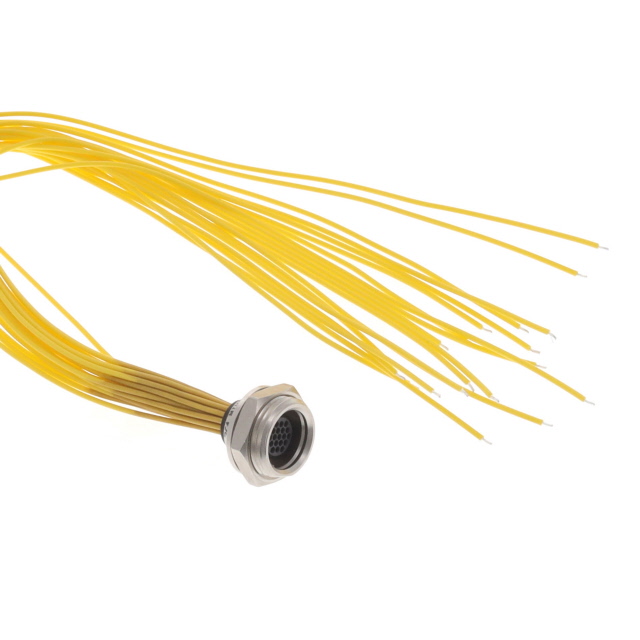

ITT Cannon, LLC MIKQ9-19PH011				Unshielded	Yellow	Wire Leads	All	Panel Mount	Male Pins	19	Receptacle	Standard	Individual																				91.44 cm	3 ft
ITT Cannon, LLC MIKQ9-7PS1				Unshielded	Silver									Copper Alloy	50 µin	1.27 µm	Electroless Nickel	Instrumentation Medical	7	Thermoplastic	-55 C	125 °C	Brass	Receptacle Male Pins	3 A	Metal	Crimp	Keyed	Panel Mount	Push-Pull	Bulkhead - Front Side Nut	Gold
ITT Cannon, LLC MIKQ9-7PH17			Keyed	Unshielded		Wire Leads	All	Panel Mount	Male Pins	7	Receptacle	Standard	Individual
ITT Cannon, LLC MIKQ9-7PL1				Unshielded	Silver									Copper Alloy	50 µin	1.27 µm	Electroless Nickel	Instrumentation Medical	7	Thermoplastic	-55 C	125 °C	Brass	Receptacle Male Pins	3 A	Metal	Crimp	Keyed	Panel Mount	Push-Pull	Bulkhead - Front Side Nut	Gold
ITT Cannon, LLC MIKQ9-7PH25			Keyed	Unshielded		Wire Leads	All	Panel Mount	Male Pins	7	Receptacle	Standard	Individual
ITT Cannon, LLC MIKQ9-7PH2			Keyed	Unshielded		Wire Leads	All	Panel Mount	Male Pins	7	Receptacle	Standard	Individual
