DL64H20 Series

Catalog

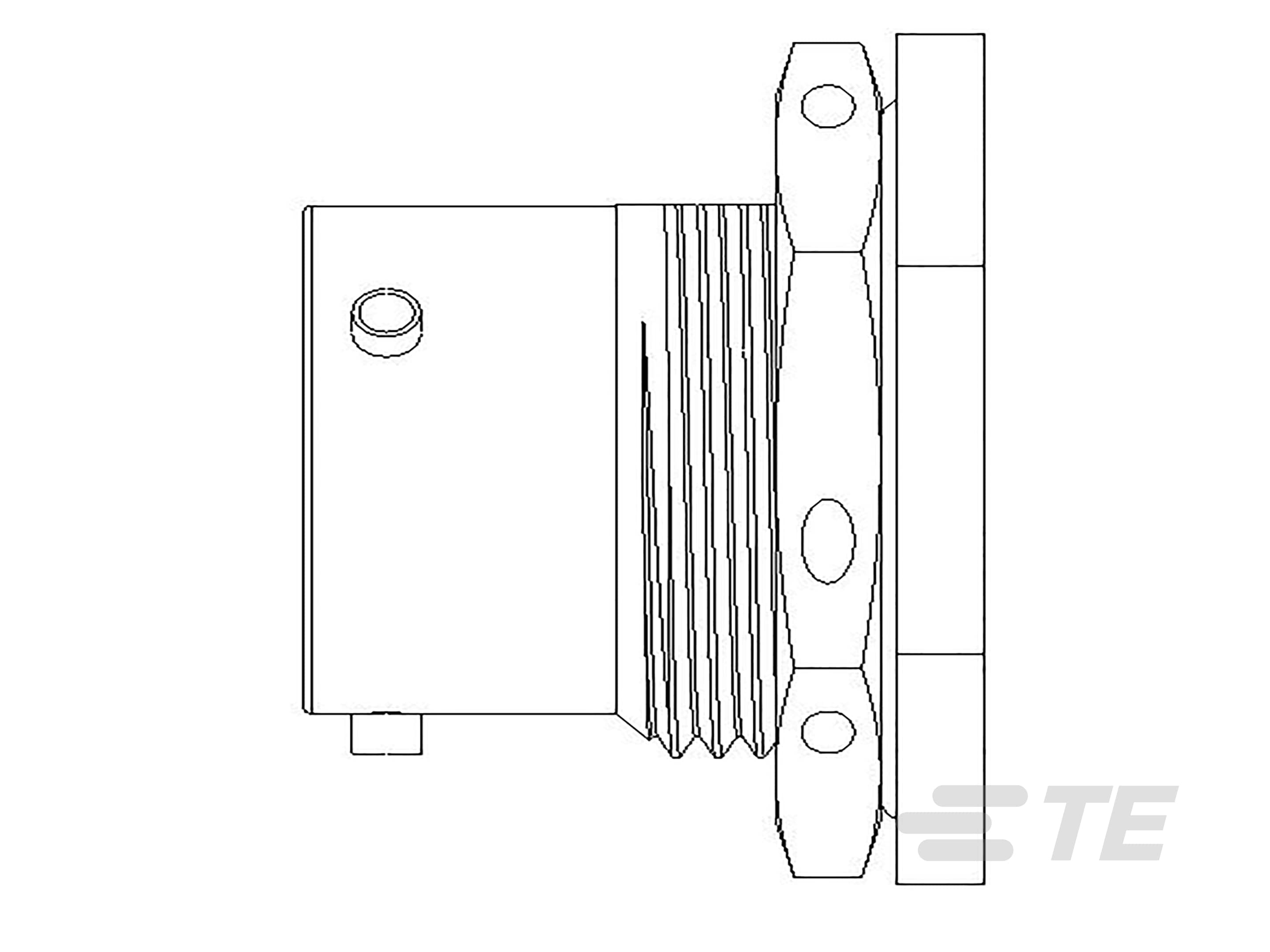

HERM RECP

Part	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Material	Qualification	Contact Finish - Mating	Mounting Feature	Orientation	Shielding	Shell Finish	Mounting Type	Number of Positions	Fastening Type	Color	Contact Material	Insert Material	Applications
TE Connectivity AMP Connectors DL64H-20-41PN-829 [V001]	Metal	-65 ░C	200 °C	Receptacle Male Pins	41	20	Steel	MIL-DTL-83723 Series III	Gold	Bulkhead - Front Side Nut	N (Normal)	Unshielded	Tin	Panel Mount	41	Bayonet Lock	Silver	Nickel Iron Alloy	Glass	Aerospace
TE Connectivity AMP Connectors DL64H-20-41PN-805	Metal	-65 ░C	200 °C	Receptacle Male Pins	41	20	Steel	MIL-DTL-83723 Series III	Gold	Bulkhead - Front Side Nut	N (Normal)	Unshielded	Tin	Panel Mount	41	Bayonet Lock	Silver	Nickel Iron Alloy	Glass	Aerospace
TE Connectivity AMP Connectors DL64H-20-41PN-829	Metal	-65 ░C	200 °C	Receptacle Male Pins	41	20	Steel	MIL-DTL-83723 Series III	Gold	Bulkhead - Front Side Nut	N (Normal)	Unshielded	Tin	Panel Mount	41	Bayonet Lock	Silver	Nickel Iron Alloy	Glass	Aerospace
