T 3261 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Color	Current Rating (Amps)	Connector Type	Voltage Rating	Mounting Type	Shielding	Shell Size - Insert	Primary Material	Contact Finish - Mating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Finish	Fastening Type	Orientation	Ingress Protection	Material Flammability Rating	Contact Size	Insert Material	Contact Shape	Type	Note	Contact Type	Housing Color
Amphenol Tuchel Industrial T 3261 028	Silver	10 A	Plug Female Sockets	250 V	Free Hanging (In-Line)	Shielded	M16-3	Metal	Gold	Die Cast	-40 C	100 °C	Cable Clamp Strain Relief	Nickel	Threaded	Keyed	IP40
Amphenol Tuchel Industrial T 3261 013	Silver	10 A	Plug Female Sockets	250 V	Free Hanging (In-Line)	Shielded	M16-3	Metal	Silver	Die Cast	-40 C	100 °C	Strain Relief	Nickel	Threaded	Keyed	IP40

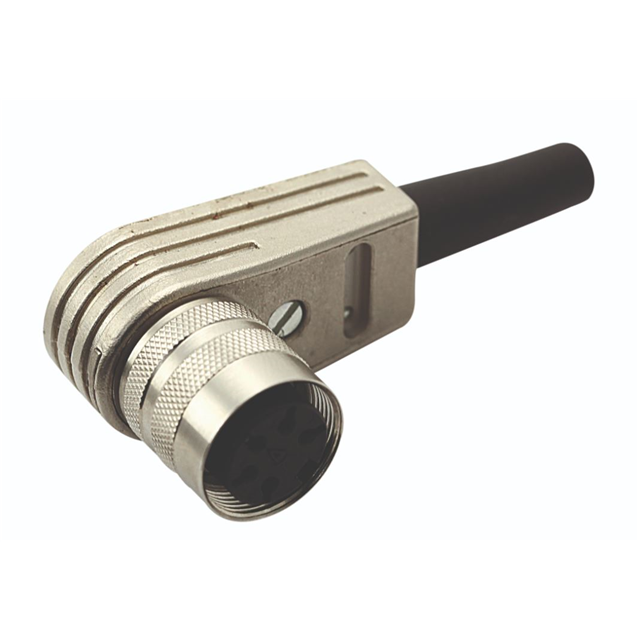

Amphenol Tuchel Industrial T 3261 055			Plug Housing		Free Hanging (In-Line) Right Angle	Shielded	M16-3			Die Cast	-40 C	100 °C	Cable Clamp Coupling Nut Strain Relief	Nickel	Threaded	Keyed	IP40	UL94 V-0	1.5 mm	Thermoplastic	Circular	For Female Sockets	Contacts Not Included	Crimp	Silver
Amphenol Tuchel Industrial T 3261 005	Silver	10 A	Plug Female Sockets	250 V	Free Hanging (In-Line) Right Angle	Shielded	M16-3	Metal	Silver	Die Cast	-40 C	100 °C	Strain Relief	Nickel	Threaded	Keyed	IP40
Amphenol Tuchel Industrial T 3261 018	Silver	10 A	Plug Female Sockets	250 V	Free Hanging (In-Line)	Shielded	M16-3	Metal	Gold	Die Cast	-40 C	100 °C	Strain Relief	Nickel	Threaded	Keyed	IP40

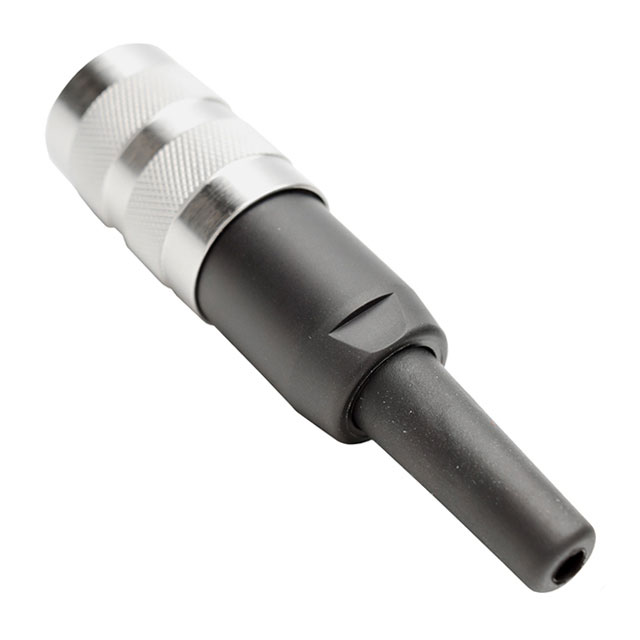

Amphenol Tuchel Industrial T 3261 551			Plug Housing		Free Hanging (In-Line)	Shielded	M16-3			Die Cast	-40 C	100 °C	Cable Clamp Coupling Nut Strain Relief	Nickel	Threaded	Keyed	IP40	UL94 V-0	1.5 mm	Thermoplastic	Circular	For Female Sockets	Contacts Not Included	Crimp	Silver
Amphenol Tuchel Industrial T 3261 048	Silver	10 A	Plug Female Sockets	250 V	Free Hanging (In-Line)	Shielded	M16-3	Metal	Gold	Die Cast	-40 C	100 °C	Cable Clamp Strain Relief	Nickel	Threaded	Keyed	IP40
