3288 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 10-12AWG #10
| Part | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Terminal Type | Termination | Features | Contact Finish | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Mounting Type | Stud/Tab Size | Number of Wire Entries [custom] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.99 mm | 0.039 in | 0.723 " | 18.36 mm | Circular | Crimp | Serrated Termination | Tin | Copper | 12 AWG | 10 AWG | Non-Insulated | 0.343 in | 8.71 mm | Free Hanging (In-Line) | 10 Stud | ||

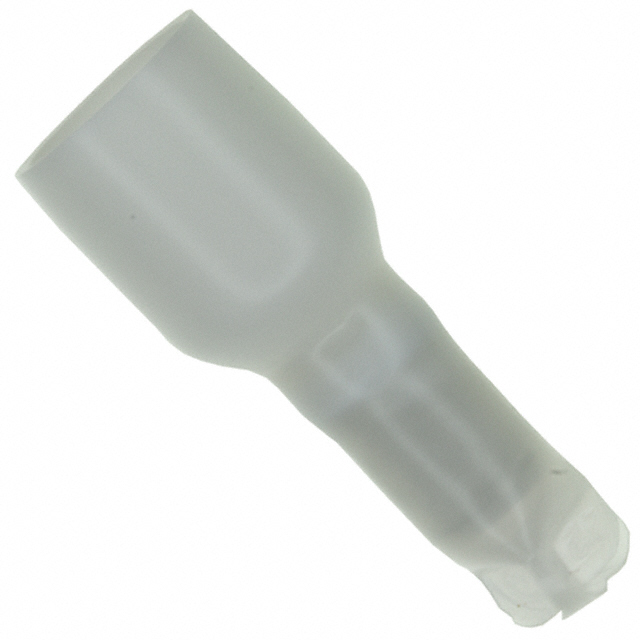

 TE Connectivity Raychem Cable Protection | Butt Splice Closed End Single Opening | Crimp | 22 AWG | 16 AWG | Fully Insulated | 1 | Transparent | |||||||||||
TE Connectivity Raychem Cable Protection | Wire Cap for Unstripped Wire | Crimp | Fully Insulated | 1 | Green Yellow Bands | |||||||||||||
TE Connectivity Raychem Cable Protection | Wire Cap for Unstripped Wire | Crimp | Fully Insulated | 1 | Blue Green Bands | |||||||||||||

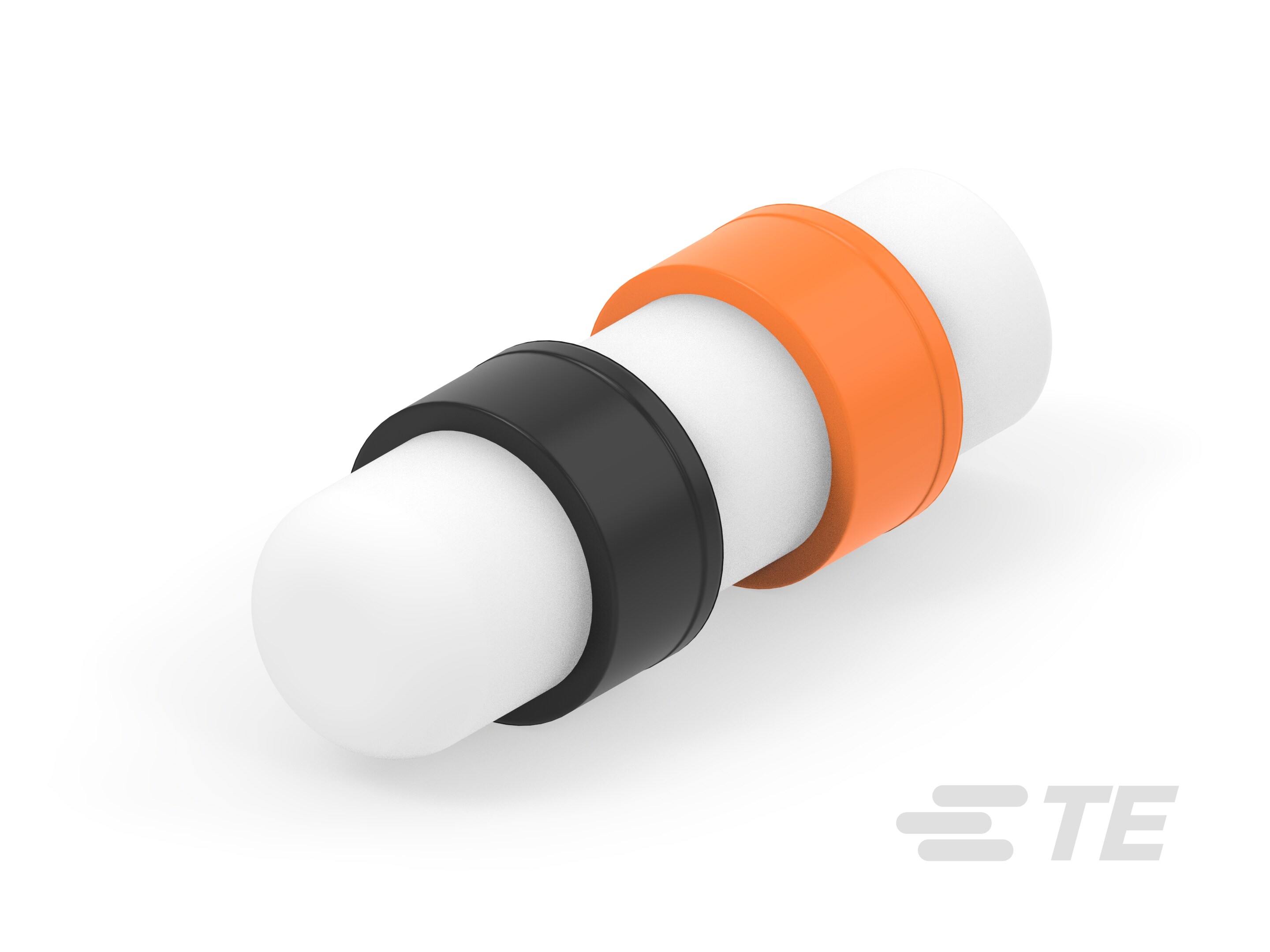

 TE Connectivity Raychem Cable Protection | Wire Cap for Unstripped Wire | Crimp | Fully Insulated | 1 | Black Orange Bands | |||||||||||||
TE Connectivity Raychem Cable Protection | Butt Splice Closed End Single Opening | Crimp | Non-Insulated | 1 | Gray Orange |
