CMZ5954 Series

Catalog

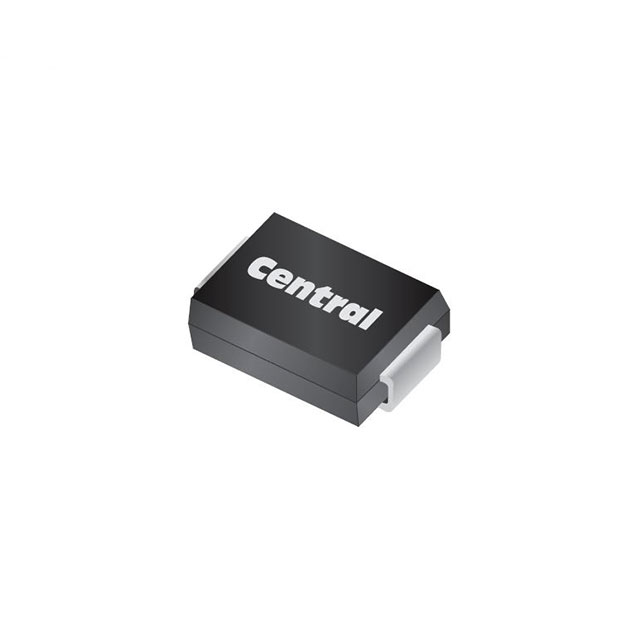

DIODE ZENER 160V 500MW SMA

Part	Package / Case	Voltage - Forward (Vf) (Max) @ If	Tolerance	Power - Max [Max]	Voltage - Zener (Nom) (Vz)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Impedance (Max) (Zzt) [Max]	Supplier Device Package	Mounting Type
Central Semiconductor Corp CMZ5954B BK PBFREE	DO-214AC SMA	1.5 V	5 %	500 mW	160 V	150 °C	-65 ░C	1 µA	700 Ohms	SMA	Surface Mount
Central Semiconductor Corp CMZ5954B TR13	DO-214AC SMA	1.5 V	5 %	500 mW	160 V	150 °C	-65 ░C	1 µA	700 Ohms	SMA	Surface Mount
