M39250 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

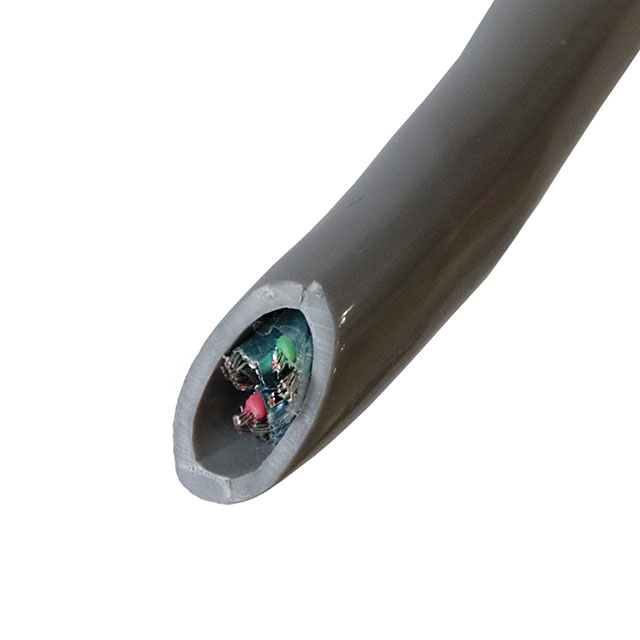

MULTI-CONDUCTOR CABLES 24 AWG 3 PAIR COMMUNICATION CABLES, FOIL, 500 FT - SLATE
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Insulation | Conductor Material | Jacket Color | Ratings | Voltage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Type | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | -20 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | Foam Polypropylene (FPP) | Copper Tinned | Slate | UL Style 2493 | 300 VDC | 152.4 m | 500 ft | 7 | 32 AWG | Multi-Pair | 1.219 mm | 0.048 in | Drain Wire Rip Cord | 8.64 mm | 0.34 " | 24 AWG | Foil | 6 |
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | -20 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | Foam Polypropylene (FPP) | Copper Tinned | Slate | UL Style 2960 | 300 VDC | 914.4 m | 3000 ' | 7 | 32 AWG | Multi-Pair | 1.219 mm | 0.048 in | Drain Wire Rip Cord | 8.64 mm | 0.34 " | 24 AWG | Braid Foil | 6 |
