R16160 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

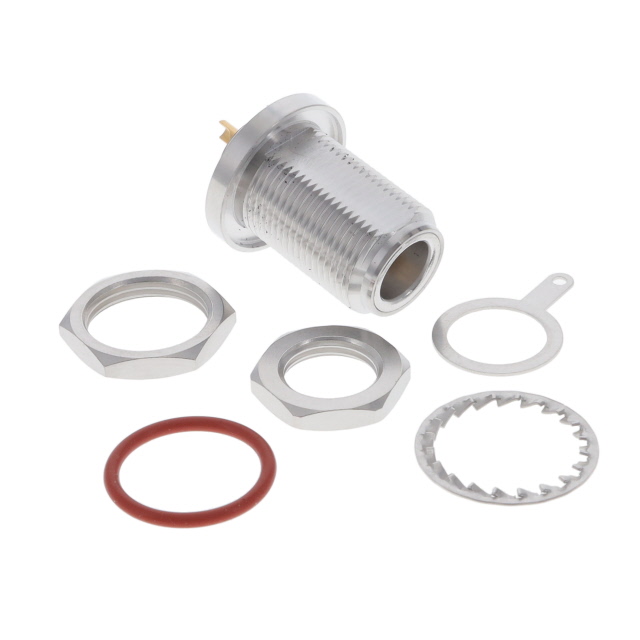

N / BULKHEAD JACK RECEPTACLE REA
| Part | Voltage Rating | Body Material | Dielectric Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Center Contact Plating | Mating Cycles | Mounting Type | Frequency - Max [Max] | Connector Type | Shield Termination | Contact Termination | Center Contact Material | Impedance | Ingress Protection | Housing Color | Connector Style | Number of Ports | Mounting Feature | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1400 V | Brass | Polytetrafluoroethylene (PTFE) | White Bronze | 155 C | -55 C | 0.15 dB | Gold | 500 | Panel Mount | 11 GHz | Female Socket Jack | Solder | Solder Cup | Beryllium Copper | 50 Ohms | IP67 - Dust Tight Waterproof | Silver | N Type | 1 | Flange | Threaded |
Radiall USA, Inc. | ||||||||||||||||||||||
 Radiall USA, Inc. | 1400 V | Brass | Polytetrafluoroethylene (PTFE) | White Bronze | 155 C | -55 C | 0.15 dB | Gold | 500 | Panel Mount | 11 GHz | Female Socket Jack | Solder | Solder Cup | Beryllium Copper | 50 Ohms | IP67 - Dust Tight Waterproof | Silver | N Type | 1 | Flange | Threaded |
