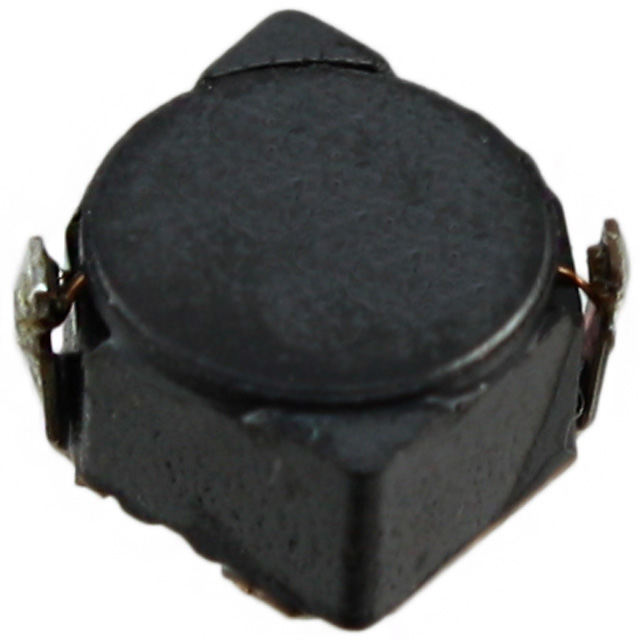

29L Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 2.2UH 3A 20 MOHM SMD
| Part | Inductance Frequency - Test | Shielding | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | DC Resistance (DCR) [Max] | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 10 kHz | Shielded | 2.2 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 3 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard Corner Terminals | 20 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 15 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 1.23 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard Corner Terminals | 84 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 150 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 430 mA | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard Corner Terminals | 850 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 22 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 1.05 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard Corner Terminals | 114 mOhm | Surface Mount | Wirewound |
 Murata Electronics | 10 kHz | Shielded | 1 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 4.6 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard | 13 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 1.5 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 4.2 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard Corner Terminals | 15 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 680 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 0.2 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard Corner Terminals | 3.61 Ohm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 4.7 ÁH | 85 °C | -40 C | 3.15 mm | 0.124 " | 2.2 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard | 31 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 10 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 1.55 A | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard | 64 mOhm | Surface Mount | Wirewound |
Murata Electronics | 10 kHz | Shielded | 100 µH | 85 °C | -40 C | 3.15 mm | 0.124 " | 480 mA | 7.2 mm | 7.2 mm | 0.283 " | 0.283 in | Nonstandard | 456 mOhm | Surface Mount | Wirewound |
