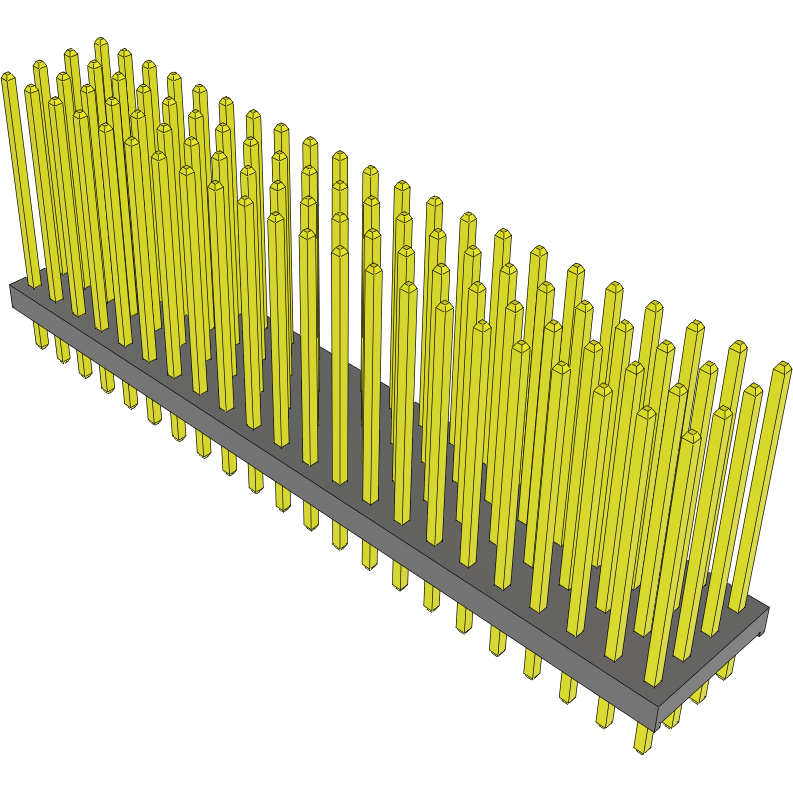

MTMM-122 Series
Manufacturer: Samtec Inc.
Catalog
HEADERS & WIRE HOUSINGS VARIABLE POST HEIGHT HEADER STRIPS, 2.00 MM PITCH
...
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Insulation Height | Insulation Height | Shrouding | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Connector Type | Termination | Contact Material | Mounting Type | Style | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Contact Finish - Post | Insulation Material | Number of Positions Loaded | Current Rating (Amps) | Fastening Type | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Contact Type | Overall Contact Length | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 0.079 in | 2 mm | Square | 1.5 mm | 0.059 " | Unshrouded | Gold | 0.079 in | 2 mm | 44 | Cuttable Header | Solder | Phosphor Bronze | Through Hole | Board to Board Cable | -55 °C | 125 °C | UL94 V-0 | 6.48 mm | 0.255 in | Gold | Liquid Crystal Polymer (LCP) | All | 3 A | Push-Pull | Black | 0.51 µm | 20 µin | 0.195 " | 4.95 mm | 2 | 3 µin | 0.076 µm | 0.03 mm | 0.001 in | Male Pin | |||
 Samtec Inc. | 0.079 in | 2 mm | Square | 1.5 mm | 0.059 " | Unshrouded | Gold | 0.079 in | 2 mm | 44 | Cuttable Header | Solder | Phosphor Bronze | Through Hole | Board to Board Cable | -55 °C | 125 °C | UL94 V-0 | 11.58 mm | 0.456 in | Gold | Liquid Crystal Polymer (LCP) | All | 3 A | Push-Pull | Black | 0.51 µm | 20 µin | 0.28 in | 7.11 mm | 2 | 3 µin | 0.076 µm | 2.97 mm | 0.117 in | Male Pin | |||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 0.079 in | 2 mm | Square | 1.5 mm | 0.059 " | Unshrouded | 22 positions | Cuttable Header | Solder | Phosphor Bronze | Through Hole | Board to Board Cable | -55 °C | 105 ░C | UL94 V-0 | 0.323 in | Tin | Liquid Crystal Polymer (LCP) | All | 3 A | Push-Pull | Black | 0.143 in | 3.63 mm | 1 | 3.08 mm | 0.121 in | Male Pin | 8.2 mm | ||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||
 Samtec Inc. | |||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 0.079 in | 2 mm | Square | 1.5 mm | 0.059 " | Unshrouded | Gold | 0.079 in | 2 mm | 44 | Cuttable Header | Solder | Phosphor Bronze | Through Hole | Board to Board Cable | -55 °C | 125 °C | UL94 V-0 | 9.58 mm | 0.377 in | Gold | Liquid Crystal Polymer (LCP) | All | 3 A | Push-Pull | Black | 0.51 µm | 20 µin | 0.125 in | 3.18 mm | 2 | 3 µin | 0.076 µm | Male Pin | 4.9 mm | 0.193 in |
