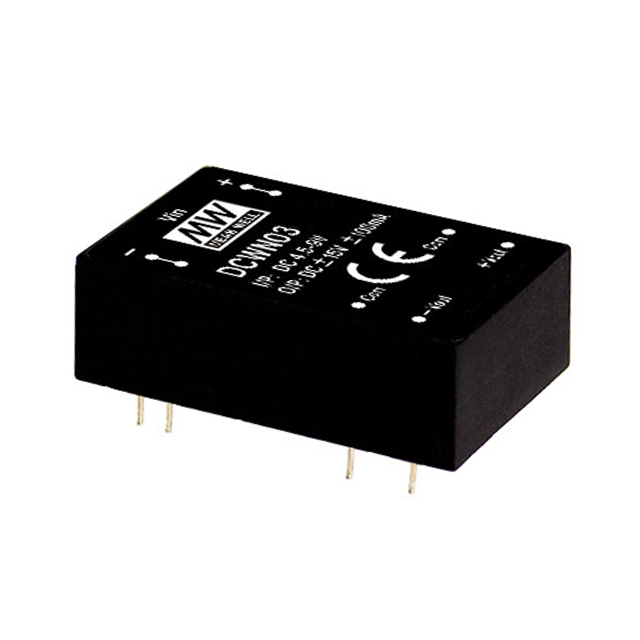

DCWN03 Series

Catalog

DC DC CONVERTER +/-15V 3W

Part	Package / Case	Current - Output (Max)	Current - Output (Max)	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Min) [Min]	Mounting Type	Efficiency	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Type	Current - Output (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. DCWN03A-15	24-DIP Module 8 Leads	100 mA	100 mA	ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-15 V	3000 V	9 V	Through Hole	85 %	15 V	18 V	OCP SCP UVLO	Isolated Module
MEAN WELL USA Inc. DCWN03B-05	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-5 V	3000 V	18 V	Through Hole		5 V	36 V	OCP SCP UVLO	Isolated Module	0.3 A
MEAN WELL USA Inc. DCWN03B-12	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-12 V	3000 V	18 V	Through Hole	87 %	12 V	36 V	OCP SCP UVLO	Isolated Module		125 mA
MEAN WELL USA Inc. DCWN03C-05	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-5 V	3000 V	36 V	Through Hole	85 %	5 V	72 V	OCP SCP UVLO	Isolated Module	0.3 A
MEAN WELL USA Inc. DCWN03C-15	24-DIP Module 8 Leads	100 mA	100 mA	ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-15 V	3000 V	36 V	Through Hole	87 %	15 V	72 V	OCP SCP UVLO	Isolated Module
MEAN WELL USA Inc. DCWN03E-05	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-5 V	3000 V	4.5 V	Through Hole	77 %	5 V	9 V	OCP SCP UVLO	Isolated Module	0.3 A
MEAN WELL USA Inc. DCWN03E-12	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-12 V	3000 V	4.5 V	Through Hole	80 %	12 V	9 V	OCP SCP UVLO	Isolated Module		125 mA
MEAN WELL USA Inc. DCWN03A-12	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-12 V	3000 V	9 V	Through Hole	84 %	12 V	18 V	OCP SCP UVLO	Isolated Module		125 mA
MEAN WELL USA Inc. DCWN03C-12	24-DIP Module 8 Leads			ITE (Commercial)	2	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3 W	90 °C	-40 °C	-12 V	3000 V	36 V	Through Hole	87 %	12 V	72 V	OCP SCP UVLO	Isolated Module		125 mA
