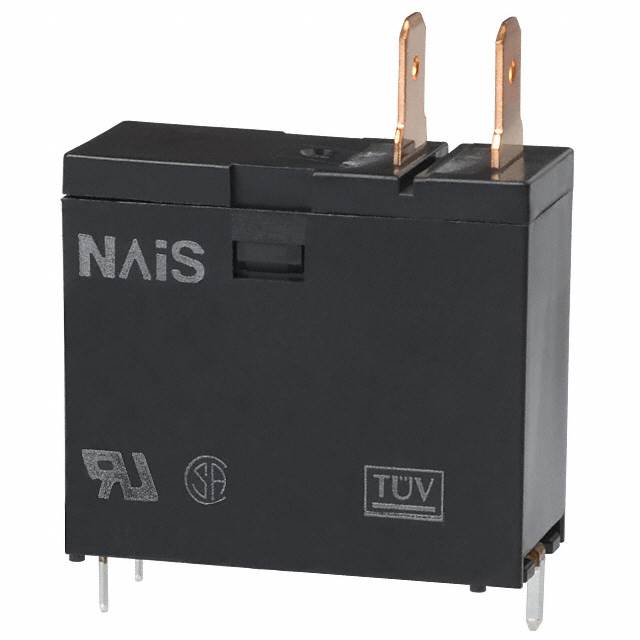

ALE12F Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 24V
| Part | Coil Resistance | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Switching Voltage [Max] | Contact Rating (Current) | Coil Insulation | Must Release Voltage | Termination Style | Approval Agency | Contact Material | Coil Type | Coil Voltage | Release Time | Load - Max Switching | Must Operate Voltage | Mounting Type | Contact Form | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 1440 Ohms | General Purpose | 85 °C | -40 C | 16.7 mA | 277 VAC | 16 A | Class F | 1.2 VDC | PC Pin Quick Connect | CSA TUV UR VDE | Silver Tin Oxide (AgSnO) | Non Latching | 24 VDC | 20 ms | 4432 VA | 18 VDC | Through Hole | SPST-NO (1 Form A) | 20 ms |
