9001-9023 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

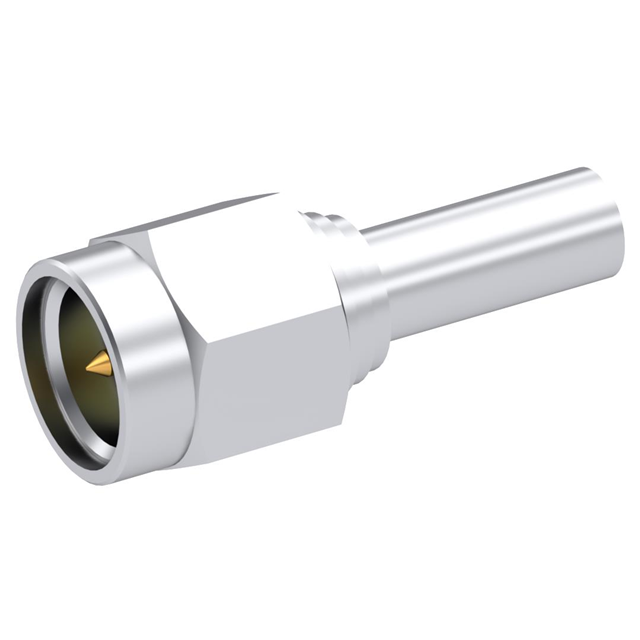

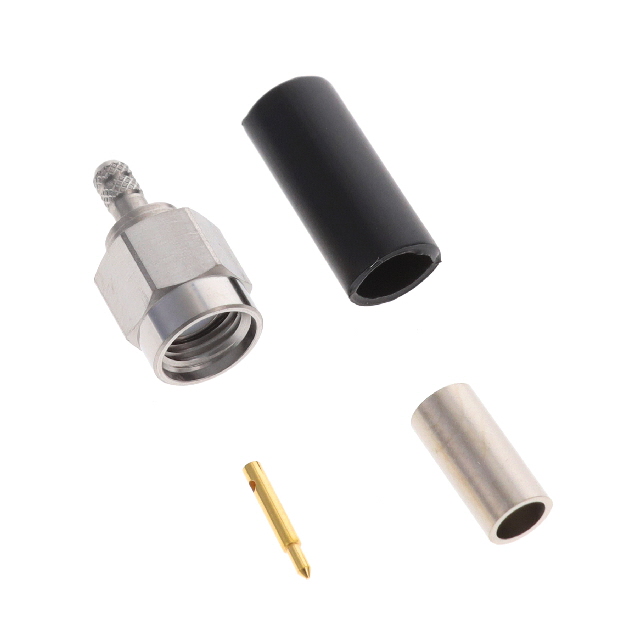

SMA M STR NA CR 2/50S
| Part | Dielectric Material | Mating Cycles | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Connector Style | Contact Termination | Frequency - Max [Max] | Shield Termination | Mounting Type | Number of Ports | Cable Group | Cable Group | Connector Type | Impedance | Fastening Type | Voltage Rating | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | Gold | -65 ░C | 165 °C | Beryllium Copper | SMA | Crimp | 18 GHz | Crimp | Free Hanging (In-Line) | 1 | 196 | RG-178 | Plug Male Pin | 50 Ohms | Threaded | ||
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | Gold | -65 ░C | 165 °C | Beryllium Copper | SMA | Crimp | 18 GHz | Crimp | Free Hanging (In-Line) | 1 | 316 | RG-174 | Plug Male Pin | 50 Ohms | Threaded | 250 V | Silver |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | Gold | -65 ░C | 165 °C | Beryllium Copper | SMA | Crimp | 18 GHz | Crimp | Free Hanging (In-Line) | 1 | RD-316 RG-316DS | Plug Male Pin | 50 Ohms | Threaded |
