KAS1103 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Electrical Life | Mechanical Life | Length [x] | Length [x] | Actuator Level | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Washable | Circuit | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Termination Style | Actuator Type | Contact Material | Pitch | Pitch | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

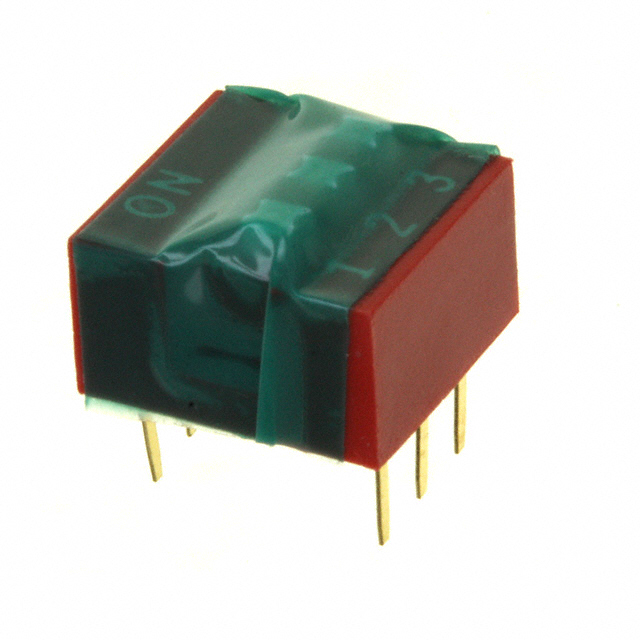

 E-Switch | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 2000 Cycles | 0.354 in | 8.99 mm | Raised | 85 °C | -40 C | 25 mA | SPST | 6.99 mm | 0.275 in | 24 VDC | PC Pin | Slide (Standard) | Phosphor Bronze | 2.54 mm | 0.1 " | Through Hole | Gold | |

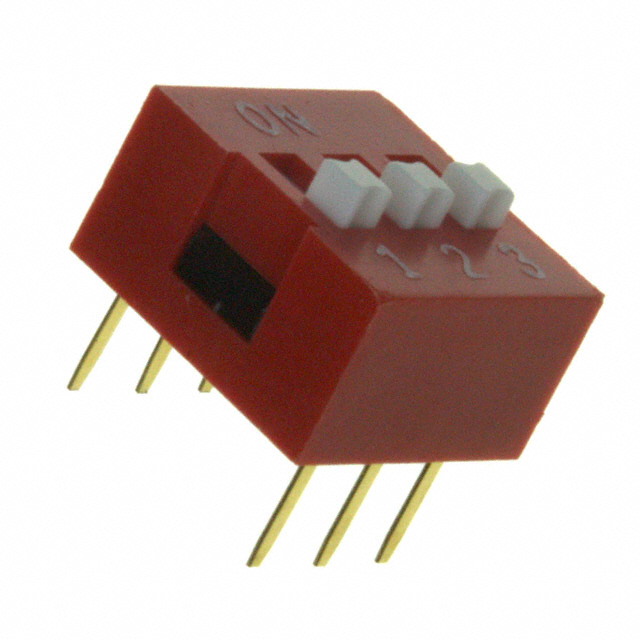

 E-Switch | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 2000 Cycles | 0.354 in | 8.99 mm | Flush Recessed | 85 °C | -40 C | 25 mA | SPST | 6 mm | 0.236 in | 24 VDC | PC Pin | Slide (Standard) | Phosphor Bronze | 2.54 mm | 0.1 " | Through Hole | Gold |
