XZDG25 Series

Manufacturer: SunLED

Catalog

LED GREEN CLEAR CHIP SMD

Part	Lens Transparency	Viewing Angle	Configuration	Color	Wavelength - Peak	Current - Test	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Lens Color	Supplier Device Package	Lens Style	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Package / Case	Mounting Type	Lens Size [diameter]	Current - Max [Max]	Height [z]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Luminous Flux @ Current/Temperature	Type	Temperature - Test	Wavelength	Lens Type	Thermal Resistance of Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Package / Case

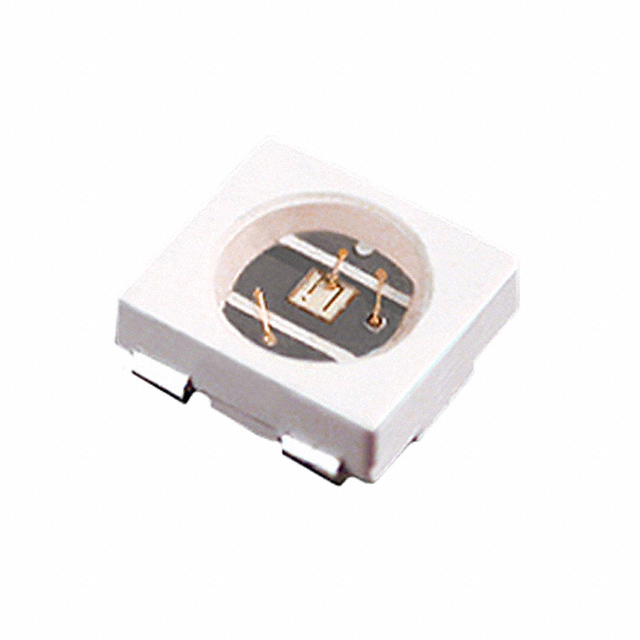

SunLED XZDG25X92S-4	Clear	120 °	Standard	Green	515 nm	150 mA	1.15 mm	3.5 mm	3.15 mm	525 nm	Colorless	Chip LED	Round with Flat Top	3.5 V	6000 mcd	4-SMD J-Lead	Surface Mount	2.6 mm Dia

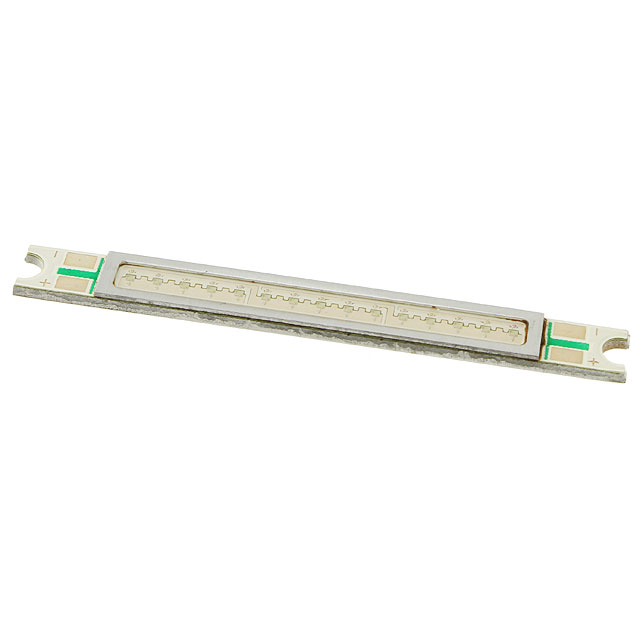

SunLED XZDG25X112S7W-A		120 °	Linear Light Strip	Green				48 mm	5 mm					10.8 V					700 mA	1.6 mm	32 lm/W	3 mm	32.4 mm	239.5 lm	LED Module	25 °C	525 nm	Flat

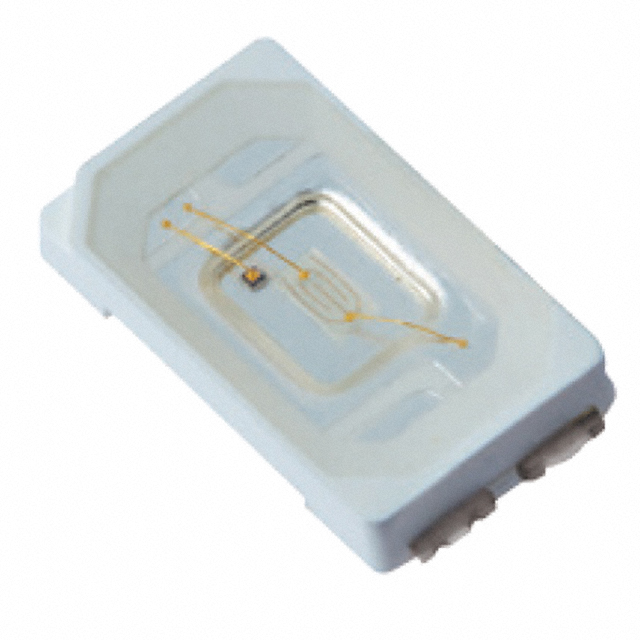

SunLED XZDG25X143S		120 °		Green		150 mA		0.209 "	0.118 in			SMD		3.5 V		Nonstandard SMD	Surface Mount		300 mA							25 °C	525 nm		50 °C/W	1.02 mm	0.04 in	5.3 mm	3 mm

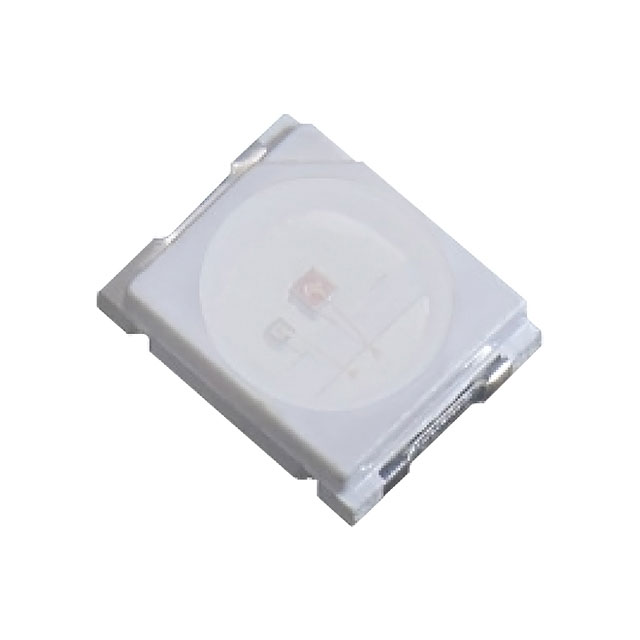

SunLED XZDG25X109FS	Clear	120 °	Standard	Green	515 nm	150 mA	1.05 mm	3.5 mm	2.8 mm	525 nm	Colorless	2-SMD	Round with Flat Top	3.5 V	6990 mcd	1411	Surface Mount	2.5 mm																3528 Metric
