2355181 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,BRK HDR,SRVT,2.8,0.38AU,B

Part	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Shrouding	Mounting Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Shape	Overall Contact Length	Overall Contact Length	Insulation Material	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Connector Type	Voltage Rating	Number of Rows	Number of Positions

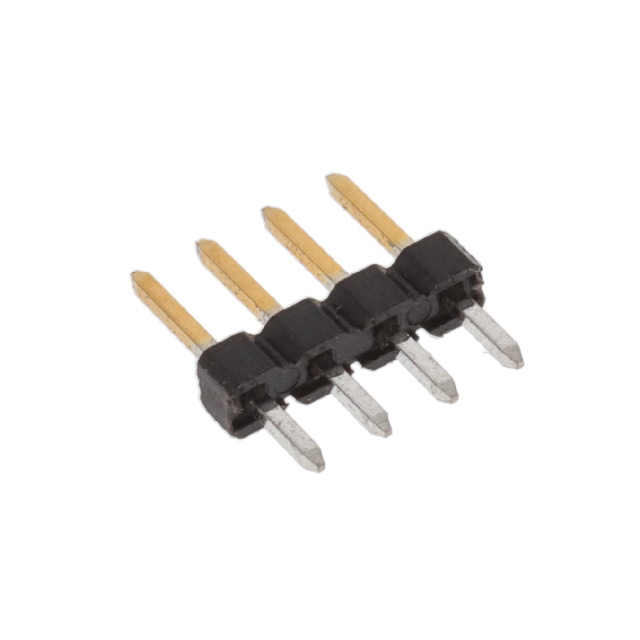

TE Connectivity Raychem Cable Protection 2355181-4	Copper Alloy	4 mm	0.157 in	Gold	UL94 V-0	0.079 in	2 mm	Solder	Push-Pull	0.11 in	2.79 mm	15 µin	0.38 µm	Black	Unshrouded	Through Hole	All	125 °C	-40 °C	Male Pin	Square	8.3 mm	0.327 in	Thermoplastic	2 A	1.5 mm	0.059 "	2 çm	78.7 çin	Tin	Breakaway Header	125 VAC	1	4

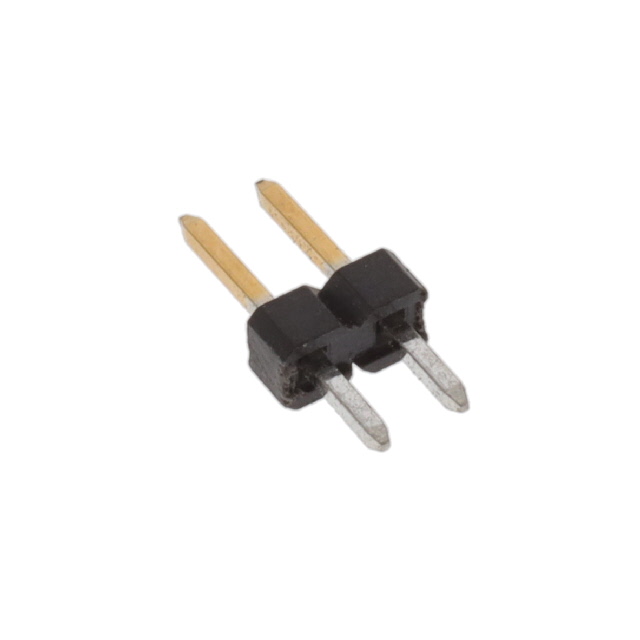

TE Connectivity Raychem Cable Protection 2355181-2	Copper Alloy	4 mm	0.157 in	Gold	UL94 V-0	0.079 in	2 mm	Solder	Push-Pull	0.11 in	2.79 mm	15 µin	0.38 µm	Black	Unshrouded	Through Hole	All	125 °C	-40 °C	Male Pin	Square	8.3 mm	0.327 in	Thermoplastic	2 A	1.5 mm	0.059 "	2 çm	78.7 çin	Tin	Breakaway Header	125 VAC	1	2

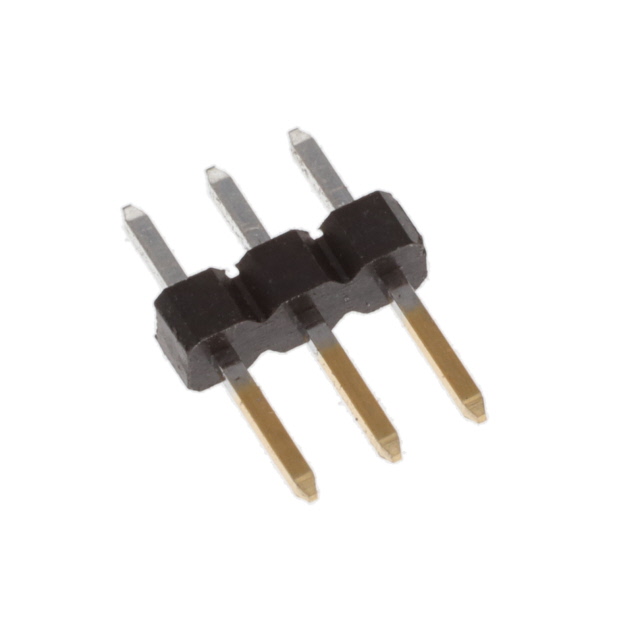

TE Connectivity Raychem Cable Protection 2355181-3	Copper Alloy	4 mm	0.157 in	Gold	UL94 V-0	0.079 in	2 mm	Solder	Push-Pull	0.11 in	2.79 mm	15 µin	0.38 µm	Black	Unshrouded	Through Hole	All	125 °C	-40 °C	Male Pin	Square	8.3 mm	0.327 in	Thermoplastic	2 A	1.5 mm	0.059 "	2 çm	78.7 çin	Tin	Breakaway Header	125 VAC	1

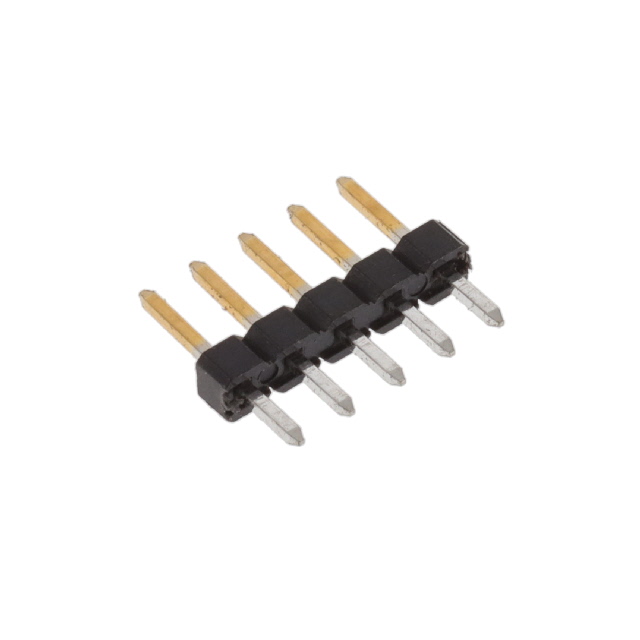

TE Connectivity Raychem Cable Protection 2355181-5	Copper Alloy	4 mm	0.157 in	Gold	UL94 V-0	0.079 in	2 mm	Solder	Push-Pull	0.11 in	2.79 mm	15 µin	0.38 µm	Black	Unshrouded	Through Hole	All	125 °C	-40 °C	Male Pin	Square	8.3 mm	0.327 in	Thermoplastic	2 A	1.5 mm	0.059 "	2 çm	78.7 çin	Tin	Breakaway Header	125 VAC	1

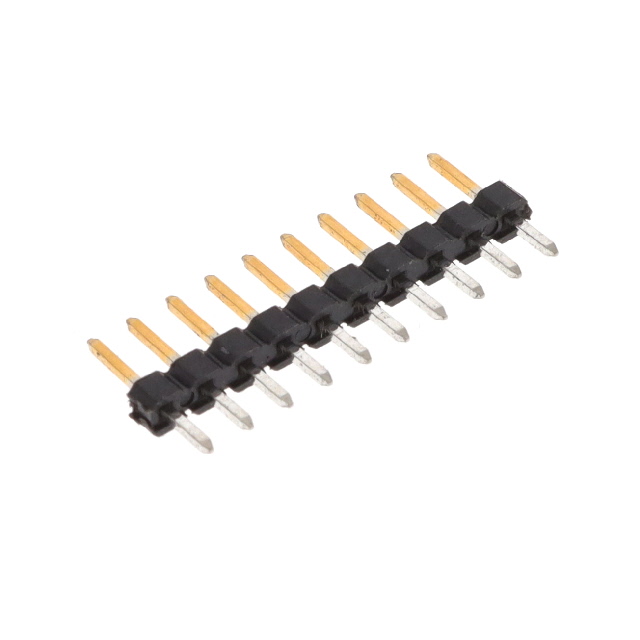

TE Connectivity Raychem Cable Protection 1-2355181-0	Copper Alloy	4 mm	0.157 in	Gold	UL94 V-0	0.079 in	2 mm	Solder	Push-Pull	0.11 in	2.79 mm	15 µin	0.38 µm	Black	Unshrouded	Through Hole	All	125 °C	-40 °C	Male Pin	Square	8.3 mm	0.327 in	Thermoplastic	2 A	1.5 mm	0.059 "	2 çm	78.7 çin	Tin	Breakaway Header	125 VAC	1	10
