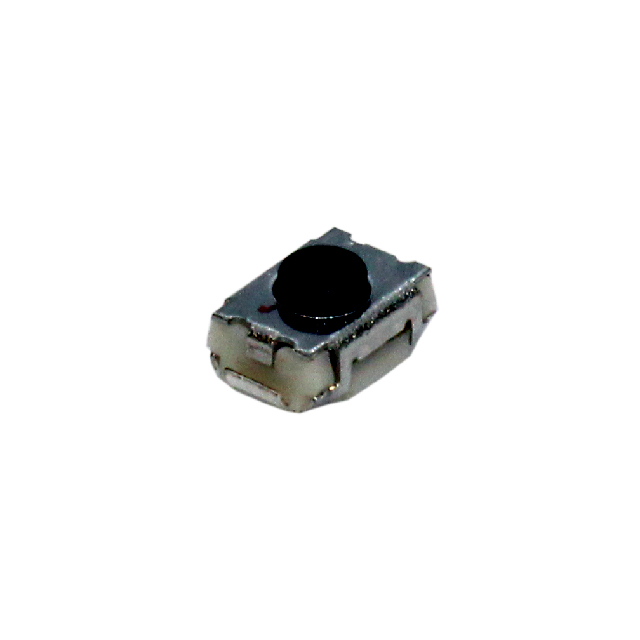

CS1213A Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Illumination	Actuator Type	Mounting Type	Actuator Height off PCB, Vertical [z]	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Actuator Orientation	Circuit	Termination Style	Switch Function	Contact Rating @ Voltage
CIT Relay and Switch CS1213AJF160	Polyamide (PA46) Nylon 4/6	1.5 mm	Non-Illuminated	Standard	Surface Mount	2 mm	160 gf	85 °C	-40 C	2.9 mm	3.9 mm	Top Actuated	SPST-NO	J Lead	Off-Mom	0.05 A 50 VDC
CIT Relay and Switch CS1213AJF260	Polyamide (PA46) Nylon 4/6	1.5 mm	Non-Illuminated	Standard	Surface Mount	2 mm	260 gf	85 °C	-40 C	2.9 mm	3.9 mm	Top Actuated	SPST-NO	J Lead	Off-Mom	0.05 A 50 VDC
CIT Relay and Switch CS1213AGF160	Polyamide (PA46) Nylon 4/6	1.5 mm	Non-Illuminated	Standard	Surface Mount	2 mm	160 gf	85 °C	-40 C	2.9 mm	3.9 mm	Top Actuated	SPST-NO	SMD (SMT) Tab	Off-Mom	0.05 A 50 VDC
