DIN Rail Terminal Blocks URTK 6

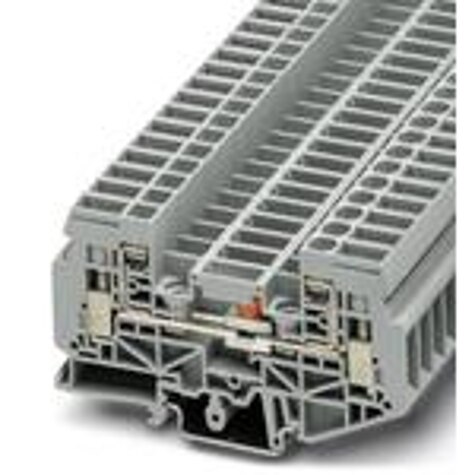

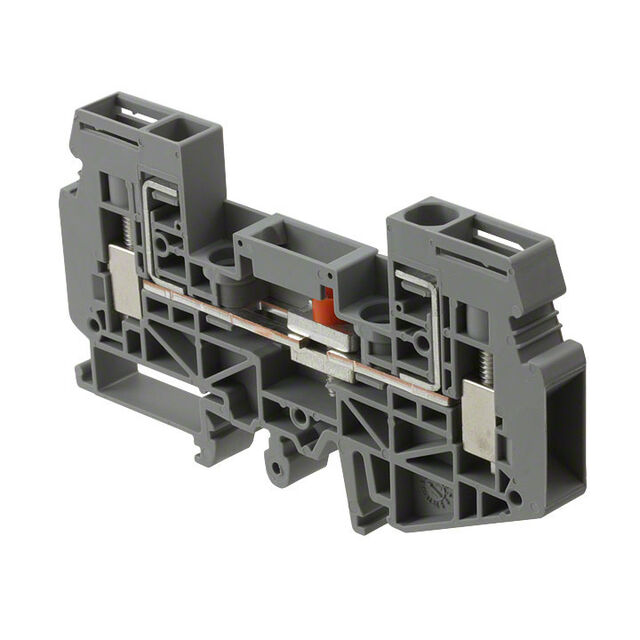

DIN Rail Terminal Blocks URTK 6
| Part | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Material Flammability Rating | Voltage - IEC | Color | Type | Voltage - UL [custom] | Current - UL | Terminal - Width [y] | Number of Positions | Current - IEC | Stripping Length | Number of Levels | Disconnect Type | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Termination Style | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 26 AWG | 8 AWG | UL94 V-0 | 400 V | Gray | Disconnect | 300 V | 50 A | 8.2 mm | 2 | 41 A | 10 mm | 1 | Slide Switch | 10 mm² | 0.5 mm² | Screw | Nylon Polyamide (PA) |
