OSTTJ06 Series

Catalog

TERM BLOCK PLUG 6POS STR 5.08MM

Part	Contact Material	Torque - Screw	Torque - Screw	Material Flammability Rating	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Strip Length [Min]	Wire Strip Length [Max]	Housing Material	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Termination Style	Type	Number of Levels	Pitch	Pitch	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Color	Voltage - UL	Mounting Type	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²
On Shore Technology Inc. OSTTJ065152	Brass	0.56 Nm	5 Lb-In	UL94 V-0	0.34 mm˛	2.5 mm˛	7 mm	8 mm	Brass	6	-30 ░C	105 ░C	0.34 mm²	2.5 mm²	6	Screw	Plug Female Sockets	1	5.08 mm	0.2 in	12 AWG	24 AWG	Green	300 V	Free Hanging (In-Line)

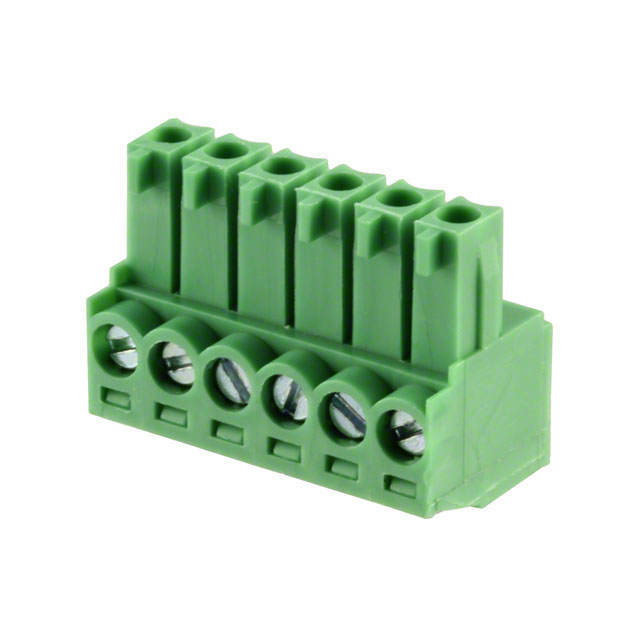

On Shore Technology Inc. OSTTJ0611530	Brass	0.28 Nm	2.5 Lb-In				6 mm	7 mm	Brass	6	-30 ░C	105 ░C			6	Screw	Plug Female Sockets	1	3.5 mm	0.138 "	16 AWG	26 AWG		300 V	Free Hanging (In-Line)

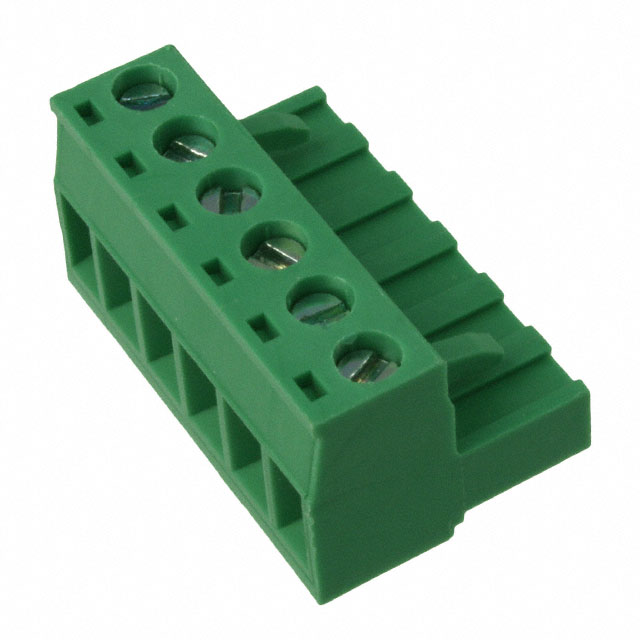

On Shore Technology Inc. OSTTJ067150	Brass	0.56 Nm	5 Lb-In	UL94 V-0			7 mm	8 mm	Brass	6	-40 C	115 °C	0.34 mm²	2.5 mm²	6	Screw	Plug Female Sockets	1	5 mm	0.197 in	12 AWG	30 AWG	Green	300 V	Free Hanging (In-Line)
On Shore Technology Inc. OSTTJ067152	Brass	0.56 Nm	5 Lb-In	UL94 V-0			7 mm	8 mm	Brass	6	-30 ░C	105 ░C	0.34 mm²	2.5 mm²	6	Screw	Plug Female Sockets	1	5 mm	0.197 in	12 AWG	24 AWG	Green	300 V	Free Hanging (In-Line)
On Shore Technology Inc. OSTTJ0631520	Brass	0.28 Nm	2.5 Lb-In	UL94 V-0			6 mm	7 mm	Brass	6	-30 ░C	105 ░C			6	Screw	Plug Female Sockets	1	3.81 mm	0.15 in	16 AWG	26 AWG	Green	300 V	Free Hanging (In-Line)	1.5 mm˛	1.5 mm²
On Shore Technology Inc. OSTTJ0611520	Brass	0.28 Nm	2.5 Lb-In	UL94 V-0			6 mm	7 mm	Brass	6	-30 ░C	105 ░C			6	Screw	Plug Female Sockets	1	3.5 mm	0.138 "	16 AWG	26 AWG		300 V	Free Hanging (In-Line)

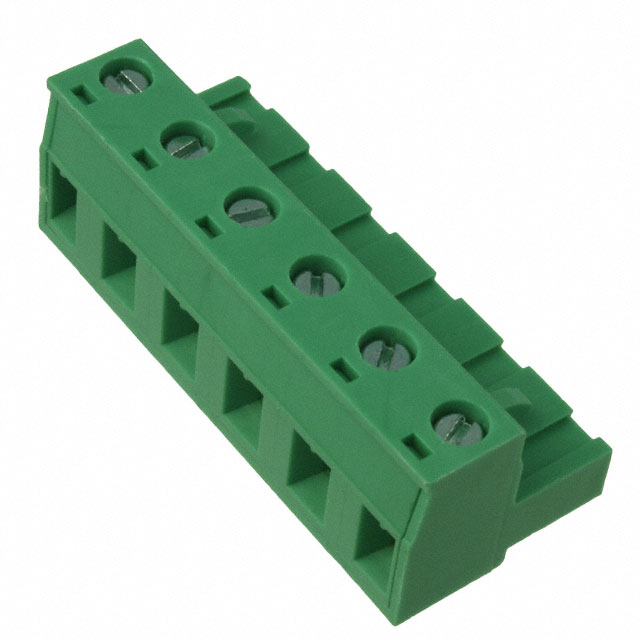

On Shore Technology Inc. OSTTJ060150	Brass	0.56 Nm	5 Lb-In	UL94 V-0			7 mm	8 mm	Brass	6	-30 ░C	105 ░C			6	Screw	Plug Female Sockets	1	7.62 mm	0.3 in	12 AWG	24 AWG		300 V	Free Hanging (In-Line)
On Shore Technology Inc. OSTTJ060152	Brass	0.56 Nm	5 Lb-In	UL94 V-0			7 mm	8 mm	Brass	6	-30 ░C	105 ░C			6	Screw	Plug Female Sockets	1	7.62 mm	0.3 in	12 AWG	24 AWG		300 V	Free Hanging (In-Line)
