629-8W8 Series
Manufacturer: EDAC Inc.
Beta
⌘K

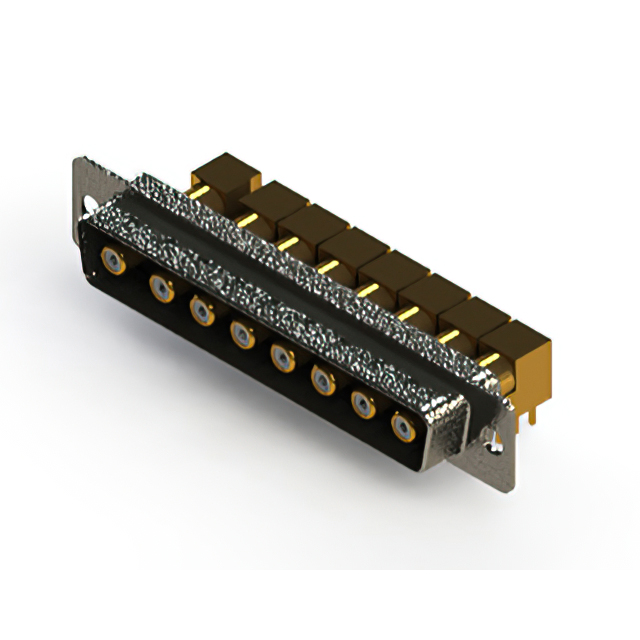

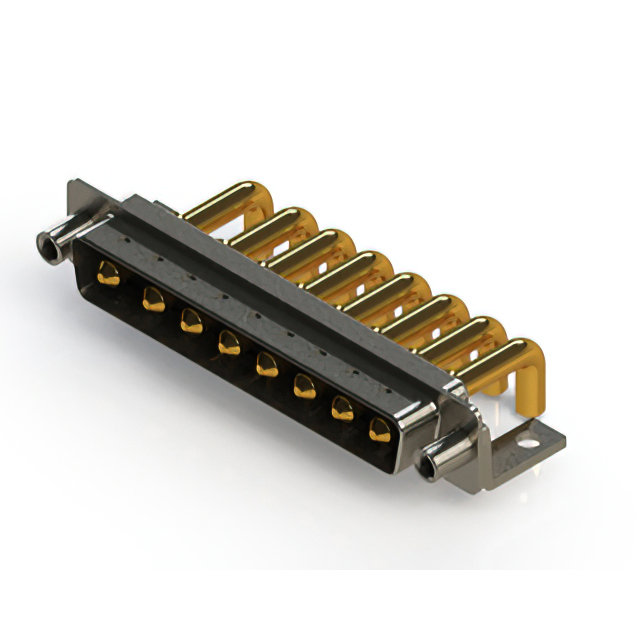

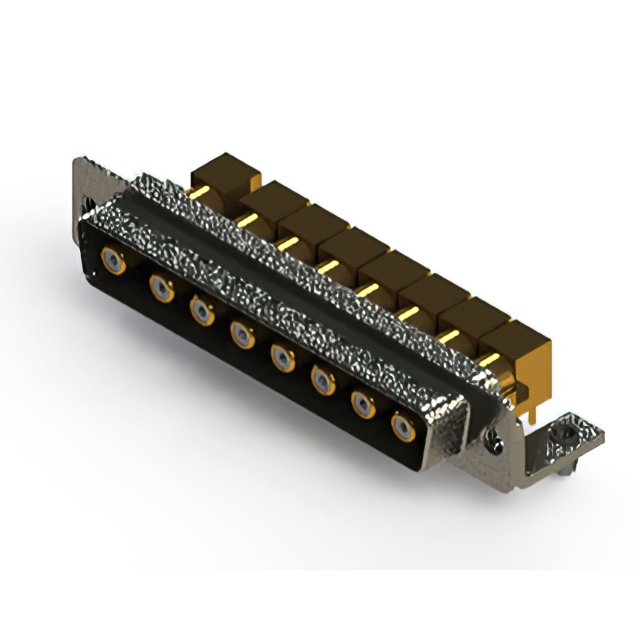

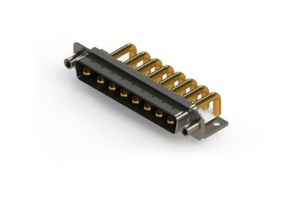

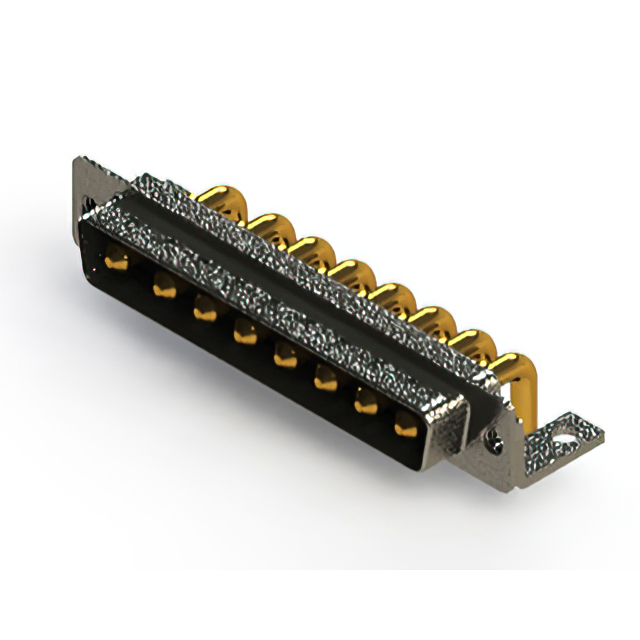

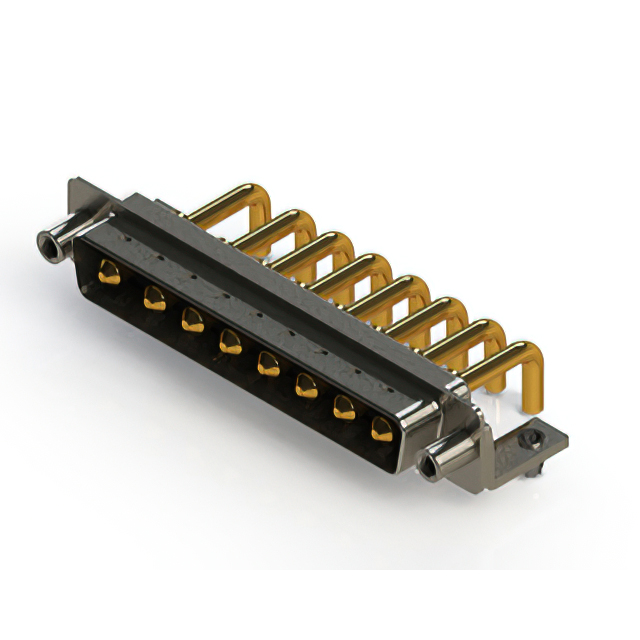

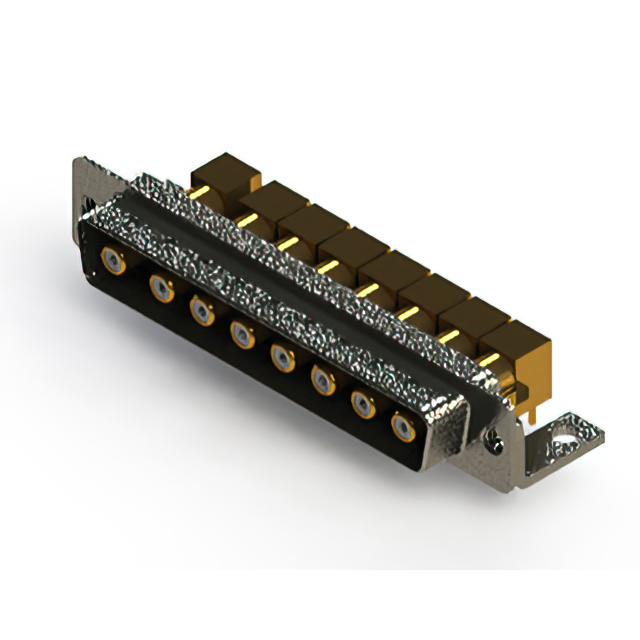

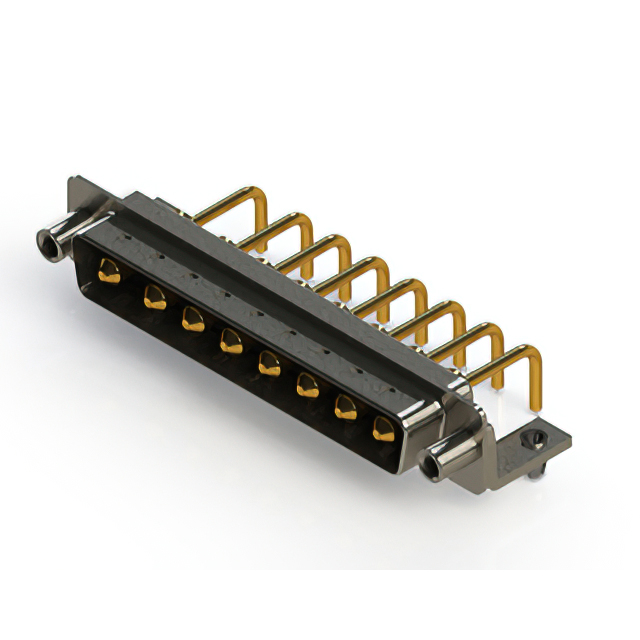

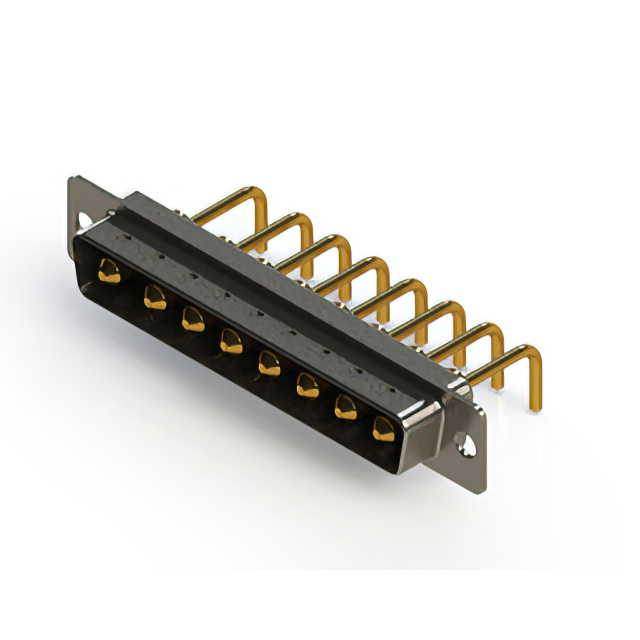

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-8W8, PLUG, 8 CONTACTS, 8 POWER, SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Voltage Rating | Dielectric Material | Contact Type | Number of Rows | Contact Finish Thickness | Flange Feature | Connector Type | Contact Finish | Features | Shell Size, Connector Layout [x] | Shell Size, Connector Layout | Connector Style | Number of Positions | Material Flammability Rating | Shell Material, Finish | Termination | Backset Spacing | Backset Spacing | Current Rating (Amps) | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | Flash | M3 | Plug Male Pins | Gold | Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.52 " | 13.2 mm | 30 A | Right Angle Through Hole | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | Flash | Housing/Shell (Unthreaded) | Plug Male Pins | Gold | Grounding Indents Shielded | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.52 " | 13.2 mm | 10 A | Right Angle Through Hole | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | M3 | Plug Male Pins | Gold | Board Lock Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.52 " | 13.2 mm | 10 A | Right Angle Through Hole | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | Flash | Housing/Shell (Unthreaded) | Plug Male Pins | Gold | Grounding Indents Shielded | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Solder | 0.52 " | 13.2 mm | 10 A | Right Angle Through Hole | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | Flash | Housing/Shell | Plug Male Pins | Gold | Board Lock Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.52 " | 13.2 mm | 20 A | Right Angle Through Hole | 4-40 | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | Flash | 4-40 | Plug Male Pins | Gold | Board Lock Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Solder | 0.52 " | 13.2 mm | 20 A | Right Angle Through Hole | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Power | 1 | Flash | Housing/Shell (M3) | Plug Male Pins | Gold | Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.52 " | 13.2 mm | 30 A | Right Angle Through Hole | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Coax | 1 | Housing/Shell (M3) | Plug Male Pins | Gold | Board Lock Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.37 in | 9.4 mm | Right Angle Through Hole | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Coax | 1 | Housing/Shell (Unthreaded) | Plug Male Pins | Gold | Grounding Indents Shielded | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.37 in | 9.4 mm | Right Angle Through Hole | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Black | 125 VDC | Polyester Thermoplastic | Coax | 1 | Flash | Housing/Shell (M3) | Plug Male Pins | Gold | Grounding Indents Mounting Brackets | 4 | 8W8 C DC | Combo D-Sub | 8 | UL94 V-0 | Nickel Plated Steel | Solder | 0.37 in | 9.4 mm | Right Angle Through Hole |
