AVT324 Series
Manufacturer: Panasonic Electric Works
Beta
⌘K

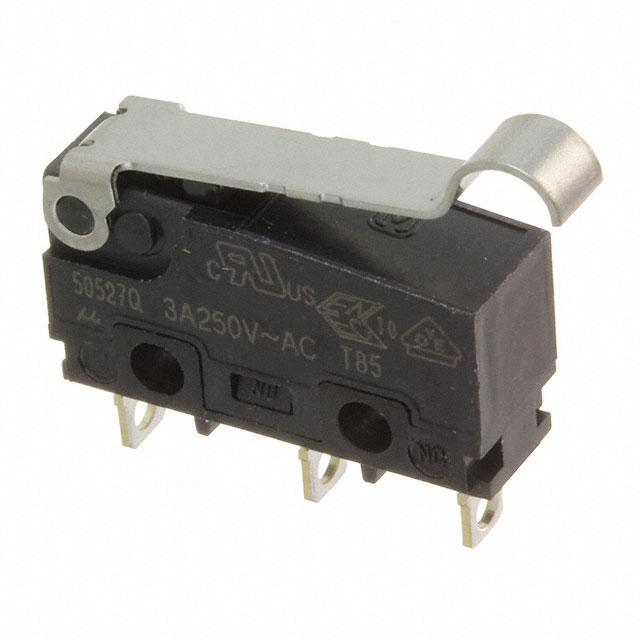

SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Pretravel | Pretravel | Current Rating (Amps) | Actuator Type | Operating Force | Release Force | Switch Function | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Termination Style | Voltage Rating - DC | Voltage Rating - AC | Mounting Type | Differential Travel | Differential Travel | Overtravel | Overtravel | Circuit | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electric Works | 0.11 in | 2.8 mm | 100 mA | Lever Simulated Roller | 16 gf | 1.53 gf | On-Mom | 500000 Cycles | -25 °C | 85 °C | 200000 Cycles | Solder Lug | 30 V | 125 V | Chassis Mount | 0.8 mm | 0.031 " | 1.2 mm | 0.047 " | SPDT | 11.7 mm | 0.46 in |
