T520C Series

Manufacturer: KEMET

Catalog

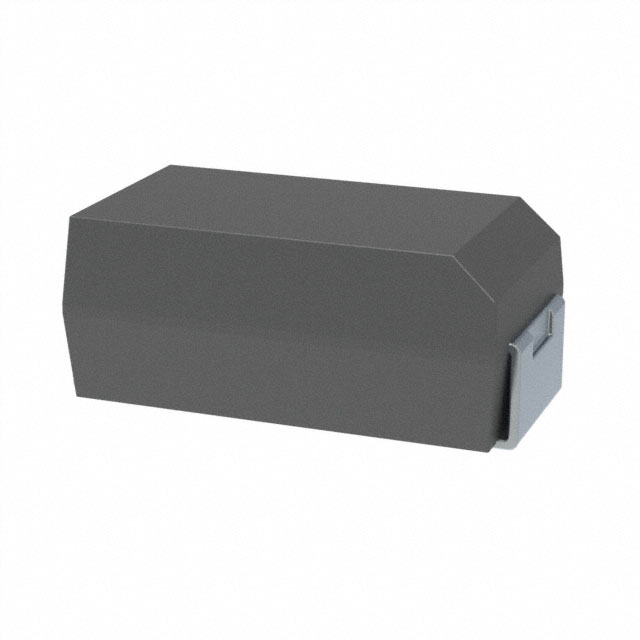

TANTALUM POLYMER CAPACITOR, KO-CAP®, 100 ΜF, ± 20%, C, 0.025 OHM

Part	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	ESR (Equivalent Series Resistance)	Voltage - Rated	Type	Tolerance	Mounting Type	Capacitance	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KEMET T520C107M006ATE025	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	25 mOhm	6.3 VDC	Molded	20 %	Surface Mount	100 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C227M006ATE018	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	18 mOhm	6.3 VDC	Molded	20 %	Surface Mount	220 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C686M006ATE100	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	100 mOhm	6.3 VDC	Molded	20 %	Surface Mount	68 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C107M010ATE025	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	25 mOhm	10 V	Molded	20 %	Surface Mount	100 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C107M010ATE045	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	45 mOhm	10 V	Molded	20 %	Surface Mount	100 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C337M2R5ATE015	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	15 mOhm	2.5 V	Molded	20 %	Surface Mount	330 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C227M006ATE015	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	15 mOhm	6.3 VDC	Molded	20 %	Surface Mount	220 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C227M006ATE025	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	25 mOhm	6.3 VDC	Molded	20 %	Surface Mount	220 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C476M010ATE100	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	100 mOhm	10 V	Molded	20 %	Surface Mount	47 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
KEMET T520C337M004ATE025	2000 Hrs	-55 C	105 ░C	2312 (6032 Metric)	25 mOhm	4 V	Molded	20 %	Surface Mount	330 µF	General Purpose	3.2 mm	0.126 in	0.236 in	6 mm
